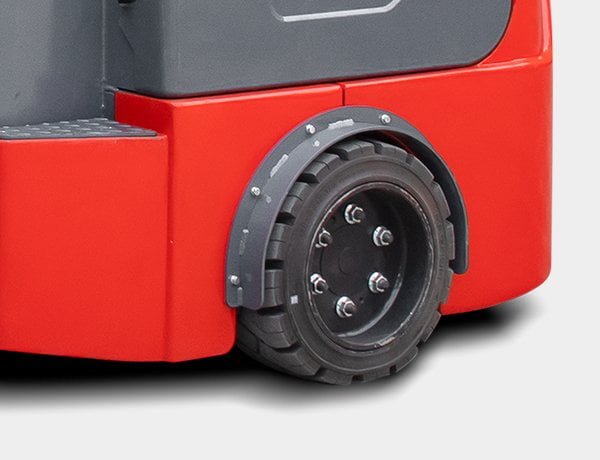

Rear Dual Drive
Improves traction and movement stability.
Electric Articulated Forklift

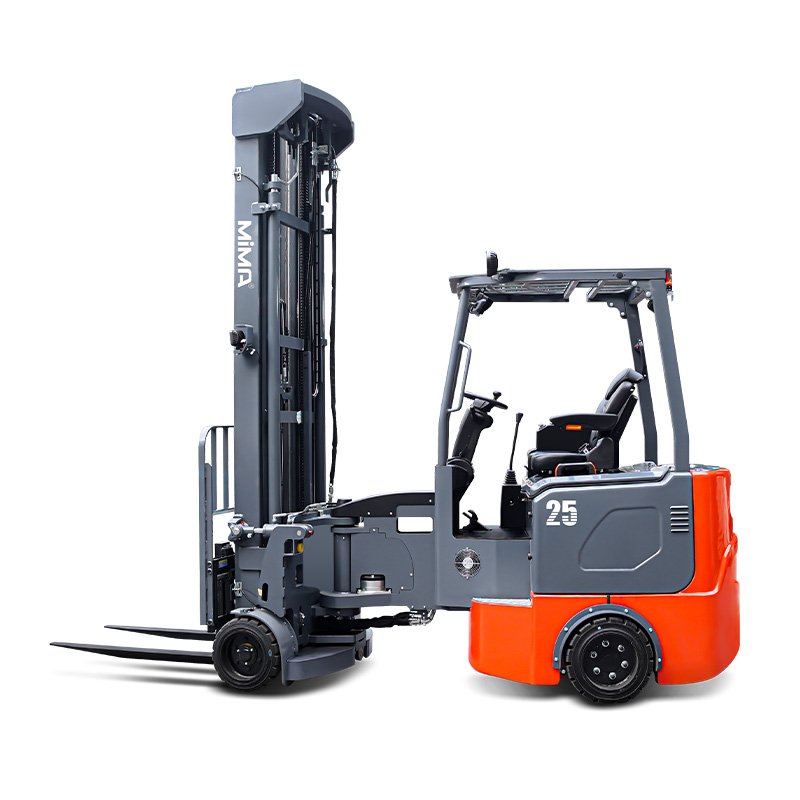

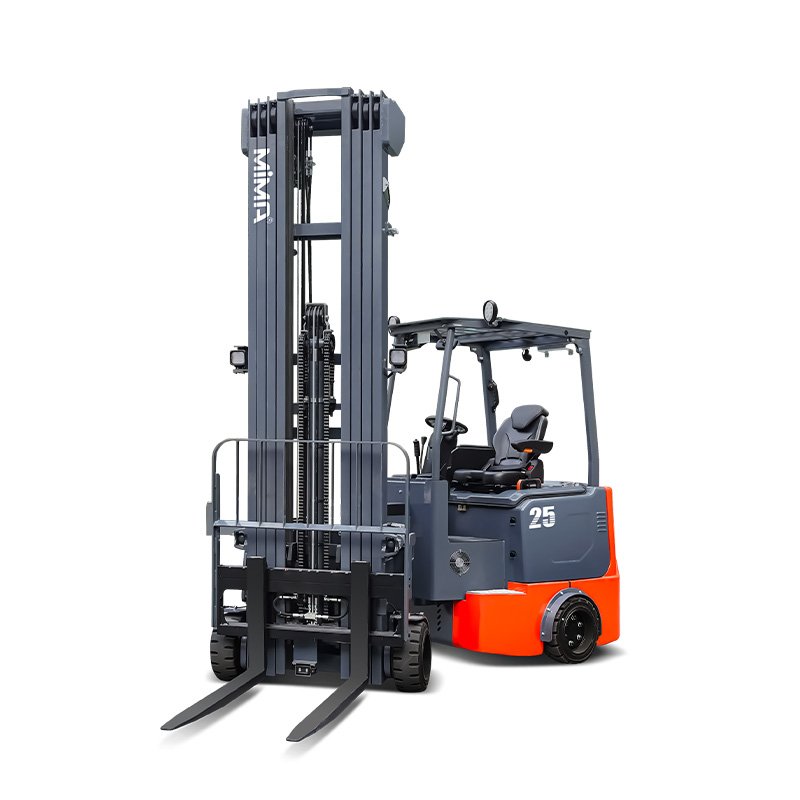

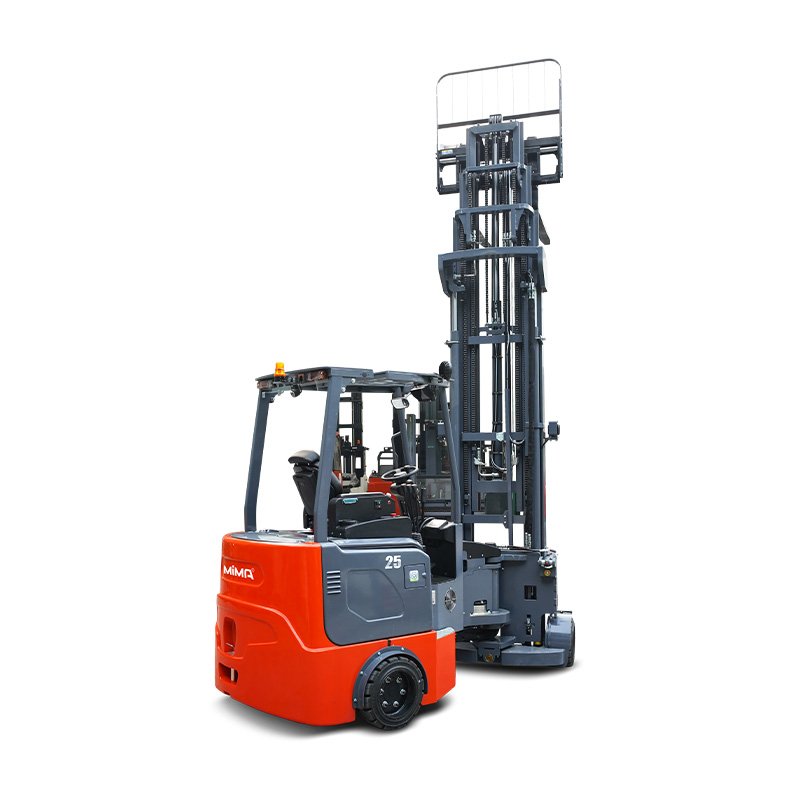

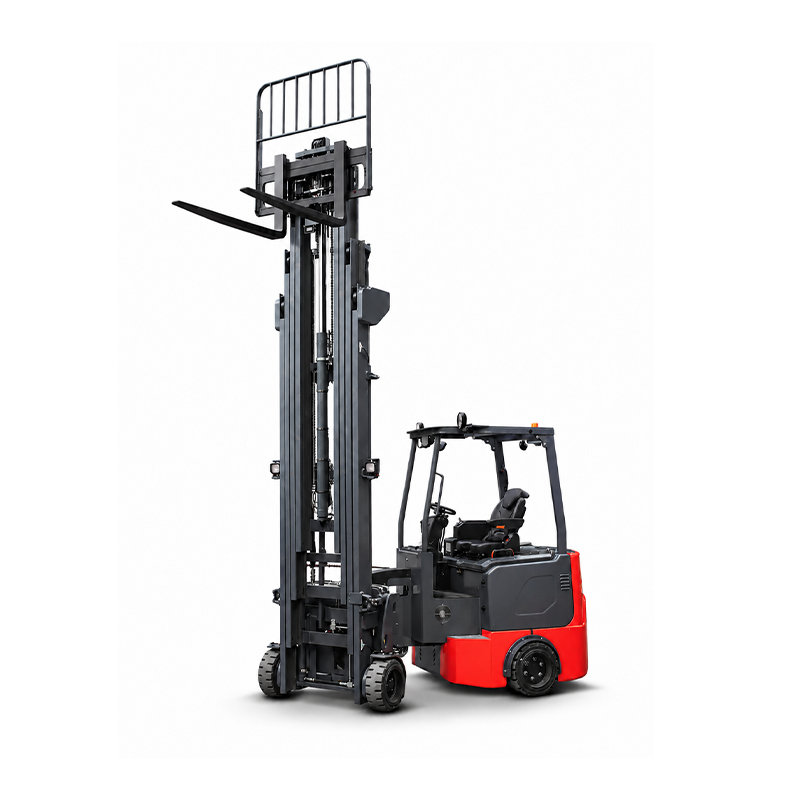

2.5 Ton Rear Dual-Drive Electric Articulated Forklift
- Model: MJD25
- Capacity: 2500 kg
- Lift Height: Up to 8000 mm
Description:
The MJD25 electric articulated forklift is designed for narrow aisle high-density storage and indoor-outdoor transfer applications where compact structure, strong traction and high-lift flexibility are required. With 2500 kg capacity, rear dual-drive motors, quadruplex full-free mast, 180° mast swing angle and standard lithium battery, it provides a specialised solution for customers who need both compact operation and reliable pallet handling performance.
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
Quadruplex Mast
Lower closed height for restricted spaces.

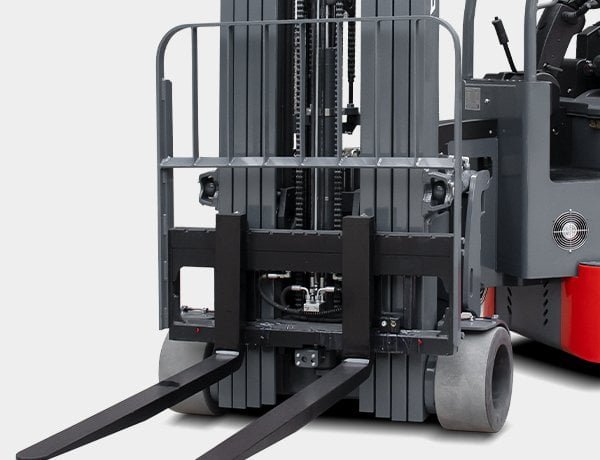

180° Mast Swing
Supports pallet stacking in narrow aisles.
Compact Body
Shorter structure improves manoeuvrability.
Lithium Battery
80V lithium power as standard configuration.
Strong Gradeability
Handles inclines up to 15%.
Product Data
Technical Specifications
Compare the available MJD25 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MJD25 |
|---|---|
| Model | MJD25 |
| Operation Type | Seated |
| Load Capacity | 2500kg |
| Lift Height | Up to 8000 mm |
| Mast Type | Quad Mast |
| Fork Outside Spread | 220–1050 mm |
| Aisle Width | > 1700 mm |
| Battery Specification | Lithium: 80V / 460Ah standard; optional lithium: 80V / 300Ah or 80V / 410Ah |
Product Overview
Product Details
Designed for Compact Narrow Aisle Warehouses
- The MJD25 is suitable for customers who need strong pallet handling performance in a compact warehouse layout.
- Its 180° mast swing angle helps reduce aisle requirements and improve pallet storage density.
- This makes it useful for projects where aisle width, turning space and racking density are important decision factors.
Rear Dual-Drive Performance
- Dual rear-drive motors provide stronger traction and more stable movement than a single-drive arrangement.
- The truck is suitable for indoor-outdoor transfer on flat paved surfaces and demanding warehouse operations.
- Customers benefit from improved control, stronger gradeability and reliable movement between loading, storage and production areas.

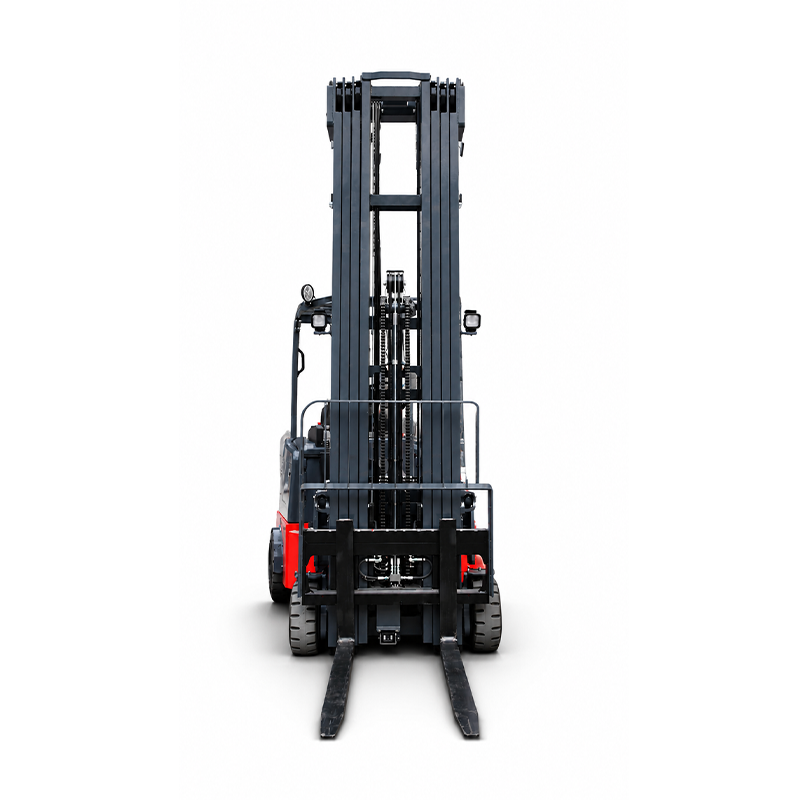

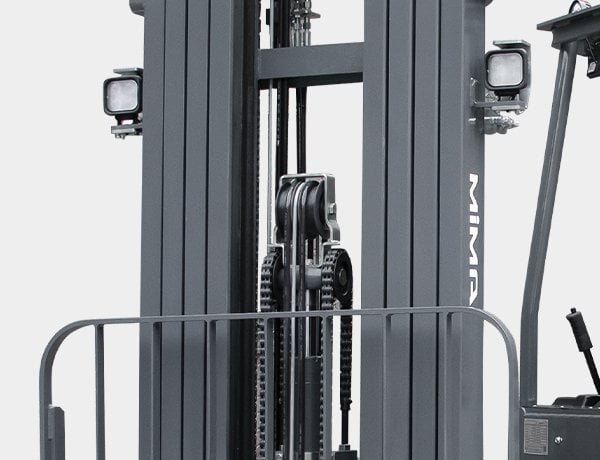

Quadruplex Mast for Lower Closed Height
- The quadruplex full-free mast supports lift heights up to 8000 mm while keeping a lower mast closed height.
- This is useful for sites with low-clearance doors, container access requirements or restricted overhead space.
- It allows customers to combine high-lift storage with better passability in height-sensitive environments.
Compact Structure with Strong Handling Capability
- The MJD25 combines a shorter overall structure with 2500 kg load capacity.
- PU front wheels support load stability, while rubber rear tyres help improve traction and driving comfort.
- This gives customers a balanced solution for narrow aisle stacking, transfer work and compact warehouse movement.
Practical Electric System and Maintenance Access
- The standard 80V / 460Ah lithium battery supports efficient daily operation and helps save vehicle space.
- Large-opening covers and accessible service areas help simplify inspection and maintenance.
- Customers benefit from reduced downtime and a more practical electric handling solution for daily use.
Safety and Operator-Focused Configuration

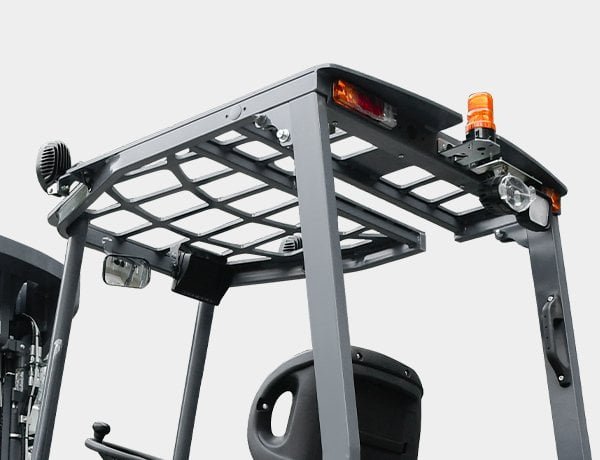

- OPS function, emergency stop switch, rearview mirror, warning lights, blue light and combined lighting systems support safer operation.
- Optional configurations such as onboard charger, proportional valve, thumb switch, battery heating and additional warning systems can adapt the truck to different site needs.
- These features help customers match the MJD25 to real warehouse conditions, operator habits and safety requirements.
Product Support
Frequently Asked Questions
Find answers to common questions about MJD25. For application-specific advice, contact MiMA Australia.
What is the MJD25 electric articulated forklift used for?
The MJD25 is used for narrow aisle pallet stacking, high-density warehouse storage and indoor-outdoor transfer on suitable paved surfaces.
What is the load capacity of the MJD25?
The MJD25 has a rated load capacity of 2500 kg.
What is the maximum lift height?
The MJD25 can support lift heights up to 8000 mm.
What aisle width does the MJD25 require?
The MJD25 can work from around 1700 mm for a 1000×1200 mm cross-fork pallet and from around 2000 mm for an 800×1200 mm along-fork pallet. Final aisle width should be confirmed based on pallet size, rack design and clearance requirements.
What is the difference between MJD25 and the MJ Series?
The MJD25 uses rear dual-drive motors and a quadruplex full-free mast, while the MJ Series uses front-wheel drive and triplex full-free mast configurations.
Why does the MJD25 use a quadruplex mast?
The quadruplex mast provides a lower closed height while still supporting lift heights up to 8000 mm, making it useful for low-clearance doors and compact warehouse layouts.
Can the MJD25 be used outdoors?
Yes. It can support indoor and outdoor transfer on suitable flat paved surfaces such as concrete or asphalt.
