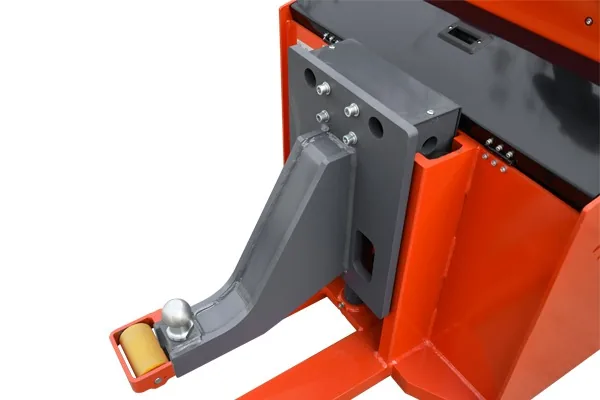

Lift Before Towing
The lifting arms raise compatible carts by 170 mm before horizontal transport.
Tow Tractor

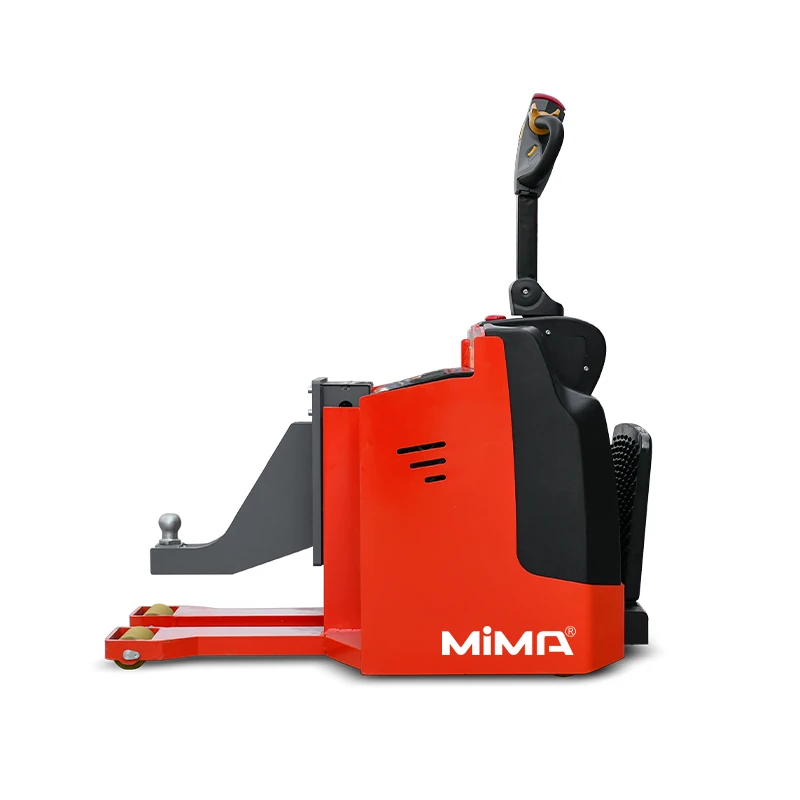

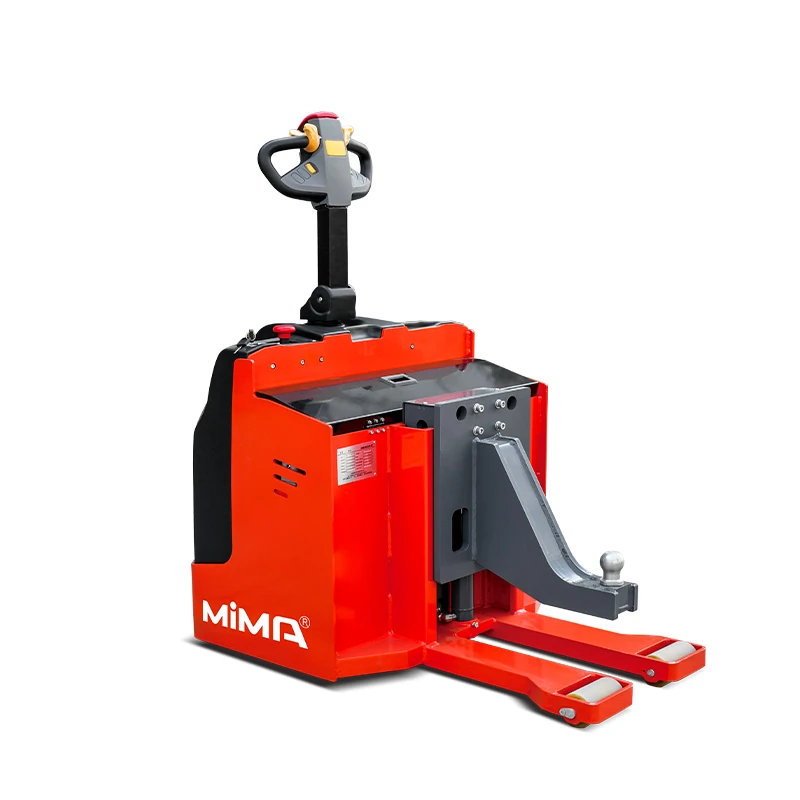

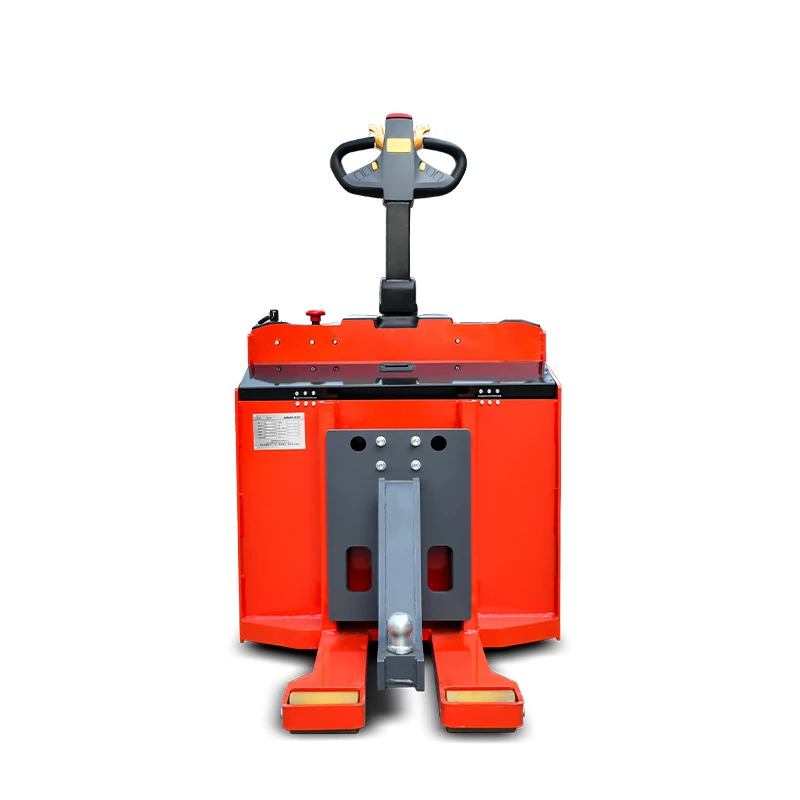

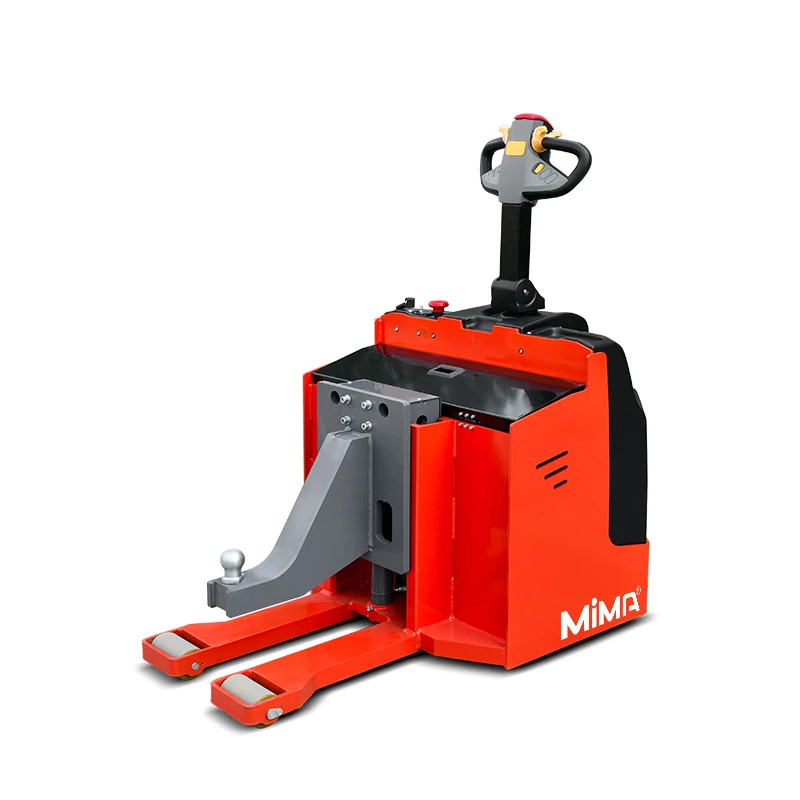

4.0T Stand-on Electric Tow Tractor with Lifting Arms MGC40
MGC40 is a stand-on electric tow tractor with lifting arms for specialised cart handling. It combines a 4,000 kg towing capacity with 170 mm lift travel, allowing compatible loads to be raised before transport. A multifunction control handle, compact chassis and 24V/165Ah battery support frequent indoor movement in textile and industrial material-flow applications.
Ideal For
- Textile mills using compatible material carts
- Frequent indoor movement of specialised load carriers
- Applications requiring carts to be lifted before transport
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
Compact 850 mm Chassis
An 850 mm-wide chassis supports operation in space-restricted production routes.
Integrated Stand-on Control
The multifunction handle combines travel and lift controls for direct stand-on operation.
Product Data
Technical Specifications
Compare the available MGC40 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MGC40 |
|---|---|
| Model | MGC40 |
| Operation Type | Stand-on |
| Load Capacity | 4000kg |
| Lift Height | 170 mm |
| Mast Type | No mast; lifting-arm system |
| Fork Outside Spread | 512 mm lifting-arm spread |
| Aisle Width | Application-dependent; confirm with load carrier |
| Battery Specification | 24V/165Ah lead-acid |
Product Overview
Product Details
Combined Lifting and Towing
The MGC40 uses low-level lifting arms to raise compatible carts by 170 mm before transport. This allows one truck to engage, lift and move specialised load carriers without a conventional trailer coupling.
Designed for Specialised Material Carts
A 512 mm lifting-arm spread supports compatible carts used in textile and industrial material-flow applications. Load-carrier dimensions and lifting points must be checked before ordering.
Compact Stand-on Operation
The truck measures 850 mm wide and has a 1,725 mm turning radius. Its multifunction handle allows the operator to control travel, lifting and lowering from the stand-on position.
Electric Drive and Lift System

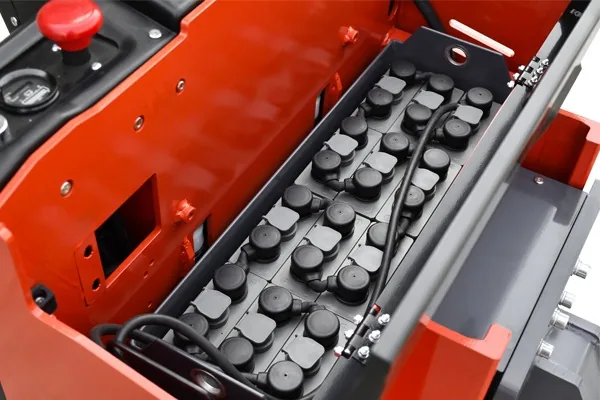

A 1.5 kW AC drive motor and 2.0 kW lift motor support controlled transport and lifting. The standard 24V/165Ah lead-acid battery suits regular indoor operating cycles.
Product Support
Frequently Asked Questions
Find answers to common questions about MGC40. For application-specific advice, contact MiMA Australia.
How does the MGC40 differ from a conventional tow tractor?
A conventional tow tractor pulls trailers through a coupling. The MGC40 uses lifting arms to engage and raise compatible carts before towing or carrying them along the route.
Can the MGC40 handle any material cart?
No. The cart’s lifting points, underside clearance, width and load distribution must match the lifting-arm arrangement. Compatibility should be confirmed from cart drawings or a physical test.
Can the MGC40 stack loads in racking?
No. Its 170 mm lifting movement is intended for engaging and transporting compatible carts. It does not have a mast and is not designed for high-level stacking.
Does the 4,000 kg rating apply in every application?
The allowable load depends on the cart interface, floor condition, gradient and route. The complete load-carrier arrangement should be reviewed before confirming the application.
