MiMA
8.0 Ton Capacity
Built for heavy long-material applications.
Multi directional Forklift

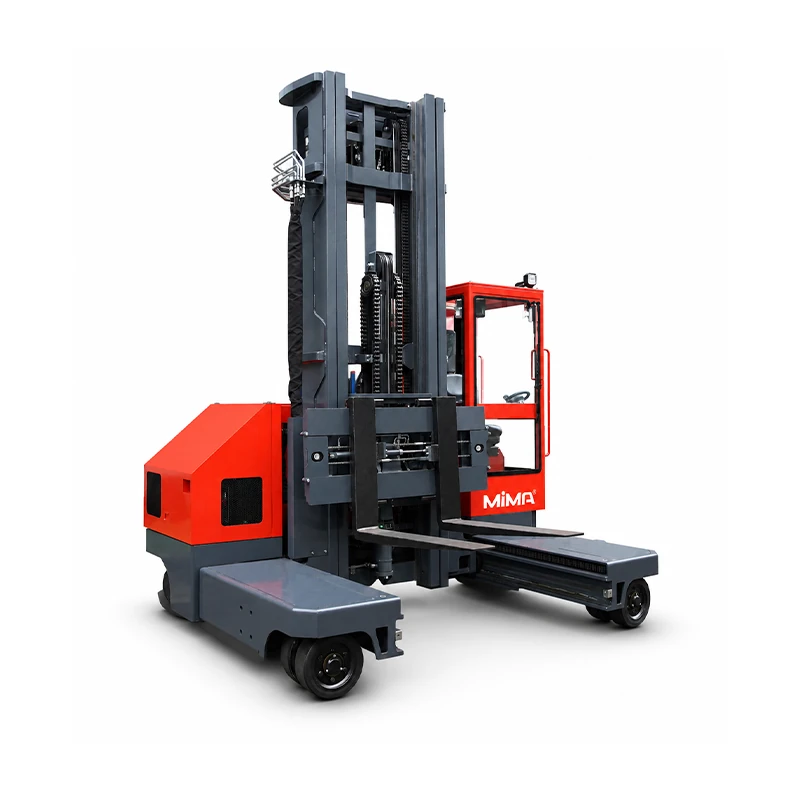

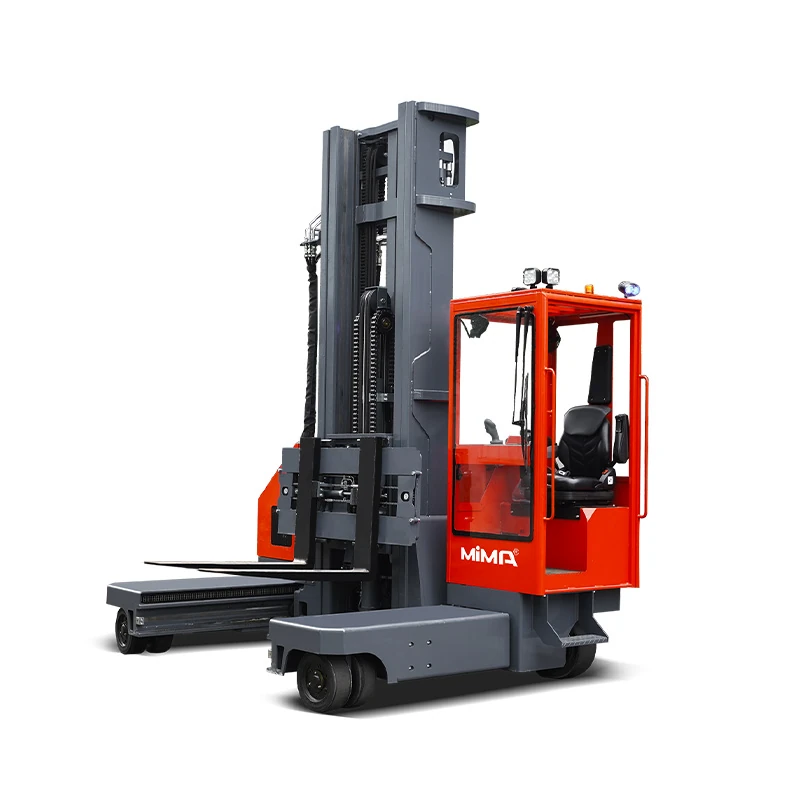

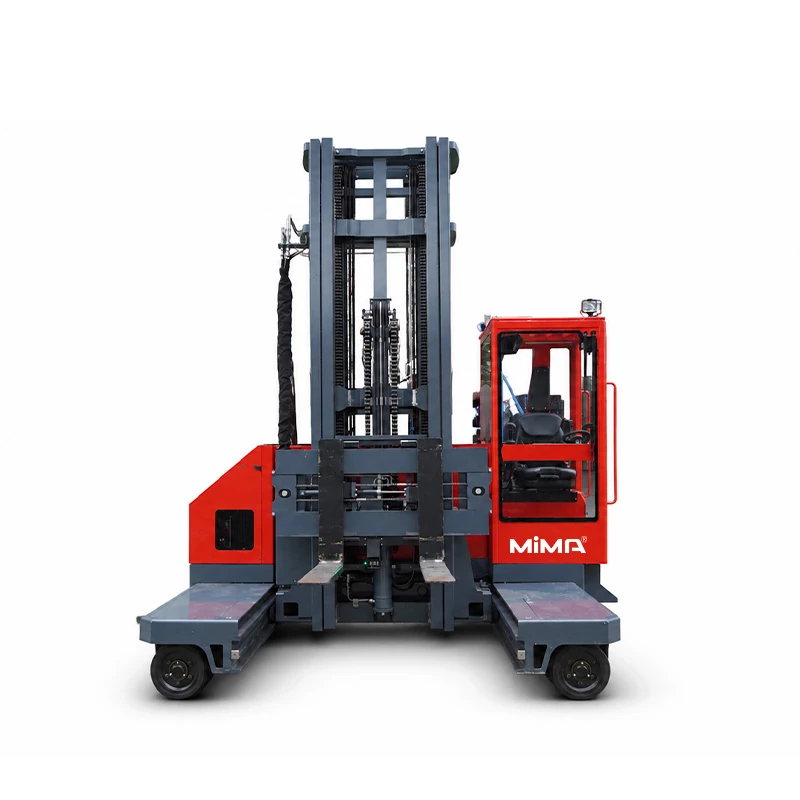

8.0 Ton Heavy-Duty Multi-Directional Forklift
- Model: MQC80
- Capacity: 8000 kg
- Lift Height: Up to 8000 mm
The MQC80 heavy-duty multi-directional forklift is designed for oversized and heavy long-material handling applications. With 8000 kg load capacity, multi-directional travel, wide fork adjustment, reach mast movement, and an 80V lithium battery system, it provides strong and flexible handling performance for large steel, timber, panels, and other heavy industrial materials.
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Heavy Long Loads
Handles steel, timber and oversized materials.
MiMA
Multi-Directional Steering
It travels straight, sideways, diagonally, and rotates in place.
MiMA

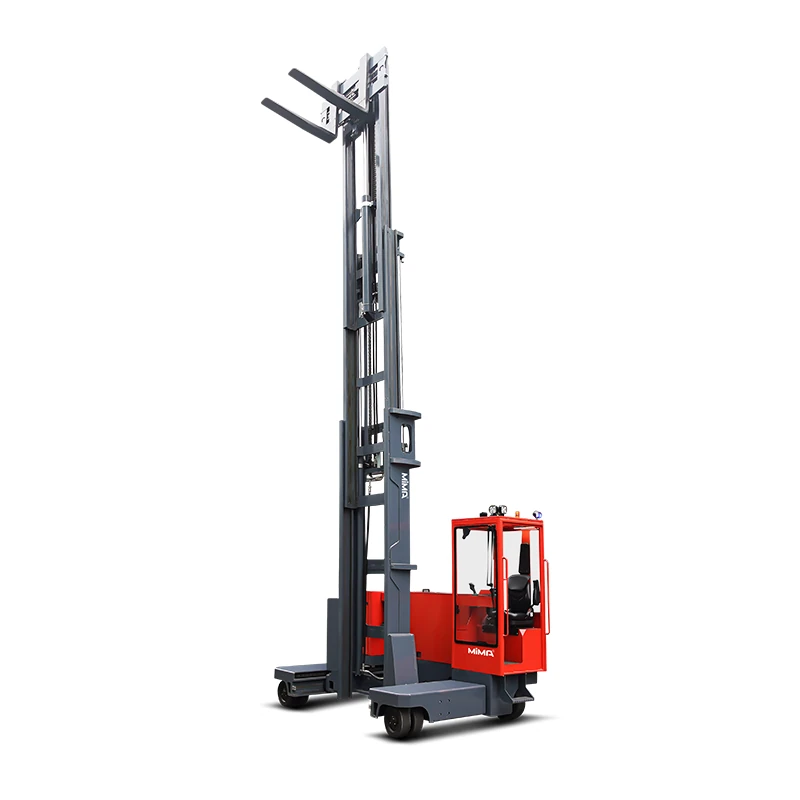

High-Lift Mast
Supports lifting heights up to 8000 mm.
MiMA
Lithium Battery Power
80V lithium power for heavy-duty operation.
MiMA
Stable Load Handling
Improves control for large and heavy loads.
Product Data
Technical Specifications
Compare the available MQC80 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MQC80 |
|---|---|
| Model | MQC80 |
| Operation Type | Seated |
| Load Capacity | 8000kgs |
| Lift Height | Up to 8000 mm |
| Mast Type | Triplex Full Free Mast |
| Fork Outside Spread | 600-1550 mm |
| Aisle Width | > 2900 mm |
| Battery Specification | Lithium: 80V / 840Ah |
Product Overview
Product Details
The MQC80 is a heavy-duty multi-directional forklift developed for large and heavy long-material handling. With an 8000 kg capacity and lift height up to 8000 mm, it is suitable for demanding industrial applications where ordinary forklifts are not efficient or safe enough for oversized loads.

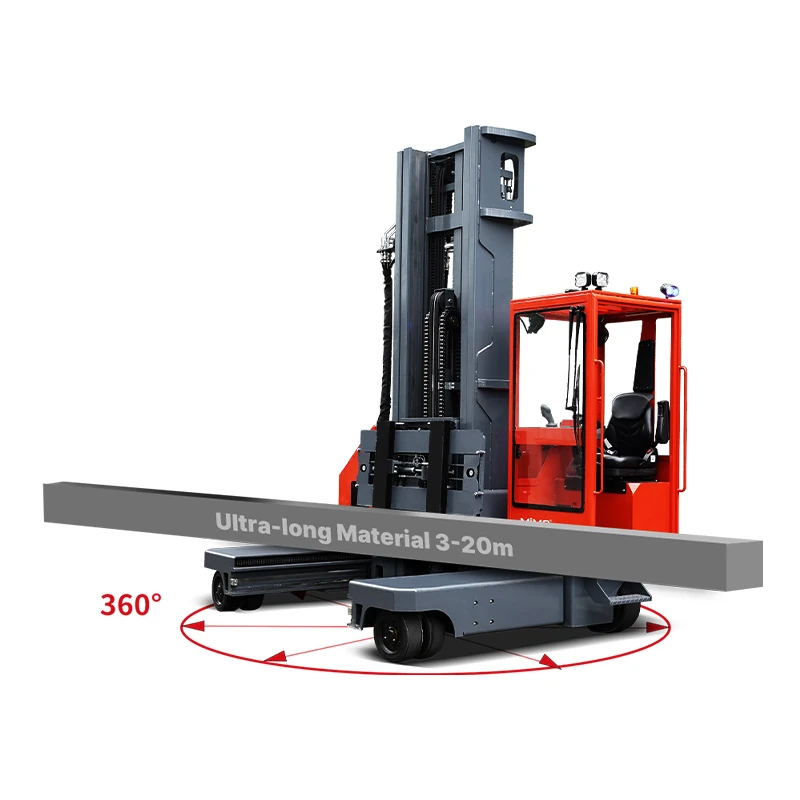

The truck can travel straight, sideways, diagonally, and rotate in place, helping operators move long materials through narrower aisles with greater flexibility. Its reach mast and widely adjustable forks enable precise load positioning for long, wide and irregular-sized goods.
Powered by an 80V / 840Ah lithium battery system, the MQC80 supports heavy-duty applications while maintaining electric efficiency. It is suitable for steel processing, timber yards, building materials, large panels, industrial manufacturing, and long-load warehousing operations.
Product Support
Frequently Asked Questions
Find answers to common questions about MQC80. For application-specific advice, contact MiMA Australia.
What is the load capacity of the MQC80?
The MQC80 has a rated load capacity of 8000 kg.
What is the maximum lift height?
The MQC80 can support lift heights up to 8000 mm.
What battery does the MQC80 use?
The standard configuration uses an 80V / 840Ah lithium battery.
What type of material is this model suitable for?
It is suitable for heavy steel, timber, large panels, oversized profiles, and other long materials.
Does the MQC80 support sideways travel?
Yes. It supports sideways travel for efficient long-load handling in narrow spaces.
Can I request the full specification sheet?
Yes. Contact MiMA to receive the full technical data sheet.
