MiMA

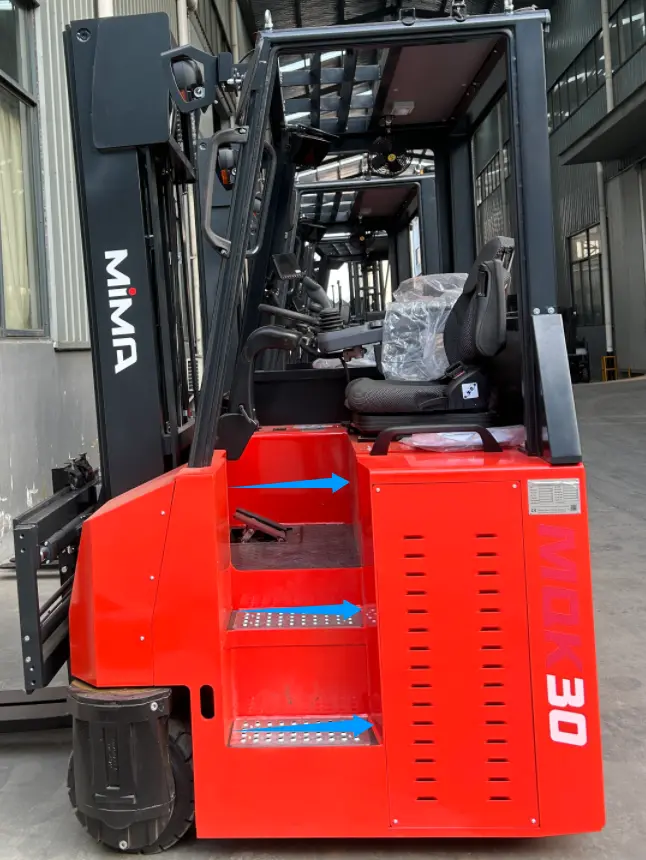

Central Seat Design
Improves visibility and operator control.
Multi directional Forklift

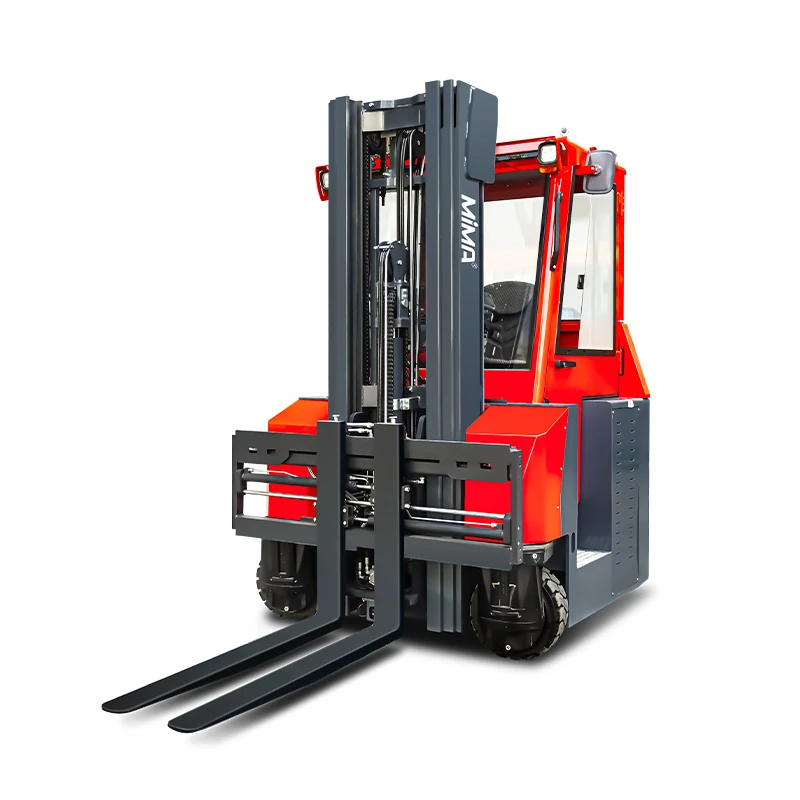

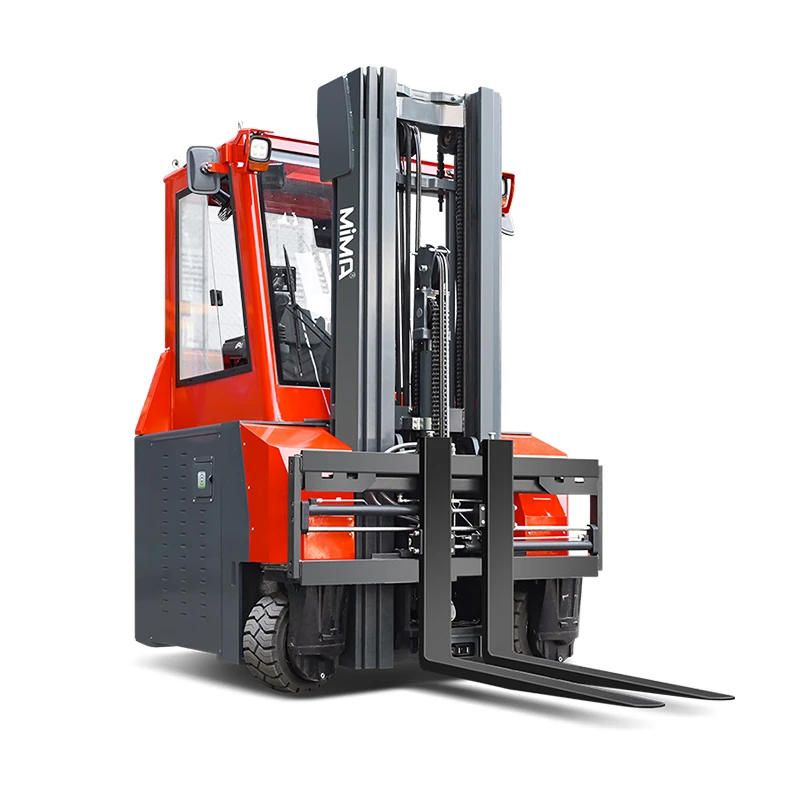

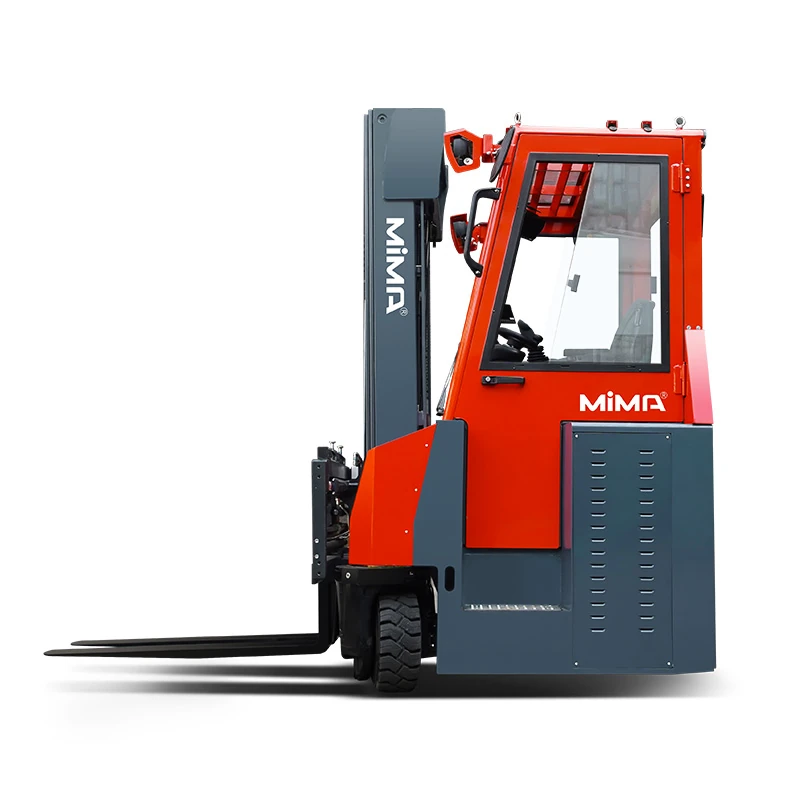

3.0 Ton Central Seat Multi-Directional Counterbalance Forklift
- Model: MQK30 Central Seat
- Capacity: 3000 kg
- Lift Height: Up to 8000 mm
The MQK30 Central Seat multi-directional counterbalance forklift combines compact counterbalance structure with multi-directional travel. Without long front support legs, it offers better flexibility for both long materials and standard pallet loads. The central seat design improves visibility, comfort, and control for indoor and outdoor handling applications.
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Counterbalance Structure
No long support legs for compact handling.
MiMA
Multi-Directional Travel
Handles long materials and pallets flexibly.
MiMA
Side Shift Forks
Improves positioning and handling efficiency.
MiMA
Continuous Mode Switching
Switch travel modes without stopping.
MiMA
Indoor-Outdoor Operation
Suitable for warehouses, yards and mixed sites.
Product Data
Technical Specifications
Compare the available MQK30 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MQK30 |
|---|---|
| Model | MQK30 |
| Operation Type | Seated |
| Load Capacity | 3000kg |
| Lift Height | Up to 8000 mm |
| Mast Type | Triplex Full Free Mast |
| Fork Outside Spread | 290～1400 mm |
| Aisle Width | > 2975 mm |
| Battery Specification | Lithium: 48V / 600Ah |
Product Overview
Product Details
The MQK30 Central Seat is a multi-directional counterbalance forklift designed for long-material handling, narrow aisle stacking, outdoor yards, and mixed pallet operations. Compared with standard multi-directional forklifts, it removes the long support legs and reach mechanism, creating a more compact body for improved operational flexibility.
The truck supports straight, sideways, diagonal, and in-place rotation travel modes. Its side shift and fork positioning functions help operators handle different load widths more efficiently. The central seat design provides improved visibility, a more spacious operator area, lower noise, and easier entry and exit.
With dual front drive, full AC system, and optional enclosed cab configuration, the MQK30 Central Seat is suitable for warehouses, bulk material yards, building material operations, and long-load handling environments requiring both flexibility and stability.
Product Support
Frequently Asked Questions
Find answers to common questions about MQK30. For application-specific advice, contact MiMA Australia.
What is the difference between MQK30 Central Seat and Side Seat?
The Central Seat version offers better visibility, a more spacious operator area, lower noise.
What is the load capacity?
The MQK30 Central Seat has a rated load capacity of 3000 kg.
Can it handle both long materials and pallets?
Yes. Its counterbalance structure and multi-directional travel allow it to handle long materials and standard pallet loads.
What is the maximum lift height?
It can support lift heights up to 8000 mm.
Is an enclosed cab available?
Yes. An enclosed cab can be selected for improved comfort in demanding environments.
Can I request a full technical data sheet?
Yes. Contact MiMA to receive the full technical specification.
