Side Seat Layout
The side‑seat cab enables a more compact overall body width.

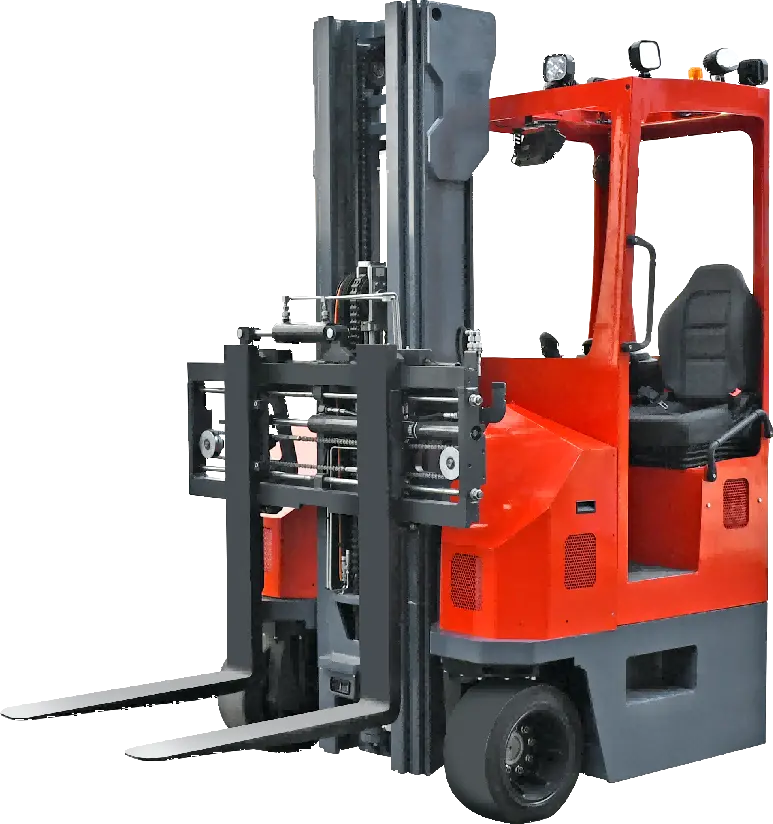

The MQK30 Side Seat multi-directional counterbalance forklift is designed for long-material handling, narrow aisle stacking and outdoor yard applications. With a compact counterbalance body, side seat operation, multi-directional travel and fork adjustment functions, it gives customers a proven solution for long loads and mixed material handling.
Key features designed to support safer, more efficient and more productive material handling.
The side‑seat cab enables a more compact overall body width.
Compact body without long support legs.
Straight, sideways, diagonal and rotation modes.
Improves flexibility for different load widths.
Switch travel modes without stopping.
Improves operator safety during operation.
Compare the available MQK30 Side Seat configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MQK30 Side Seat |
|---|---|
| Model | MQK30 Side Seat |
| Operation Type | Seated |
| Load Capacity | 3000kg |
| Lift Height | Up to 8000 mm |
| Mast Type | Triplex Full Free Mast |
| Fork Outside Spread | 350–1450 mm |
| Aisle Width | > 2900 mm |
| Battery Specification | Lead-acid: 48V / 880Ah; Lithium: 48V / 600Ah |
Find answers to common questions about MQK30 Side Seat. For application-specific advice, contact MiMA Australia.
