Compact Stand-On Design
Built for narrow aisle warehouse handling.
Electric Reach Truck

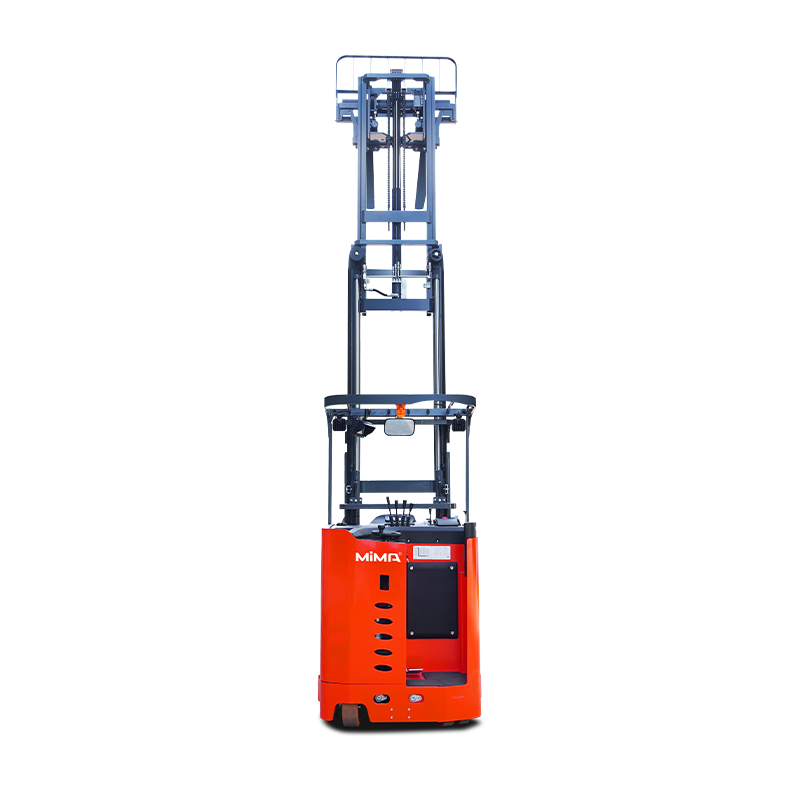

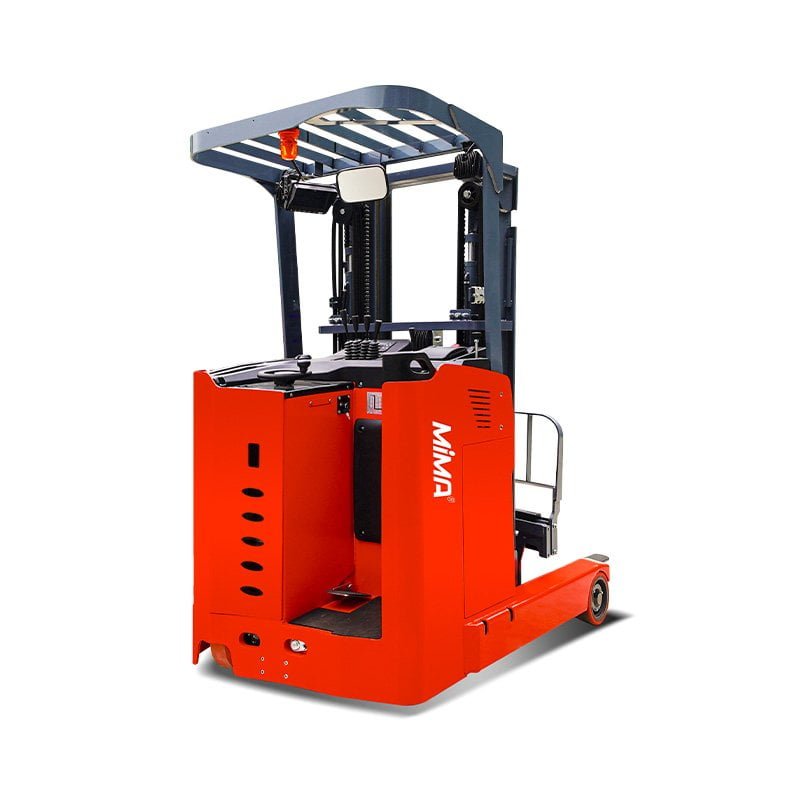

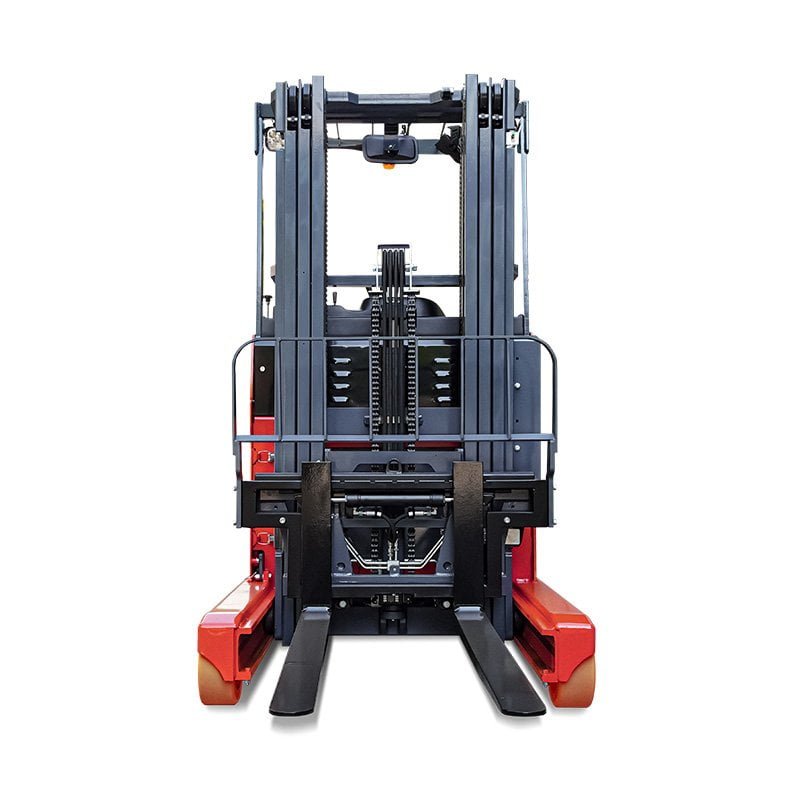

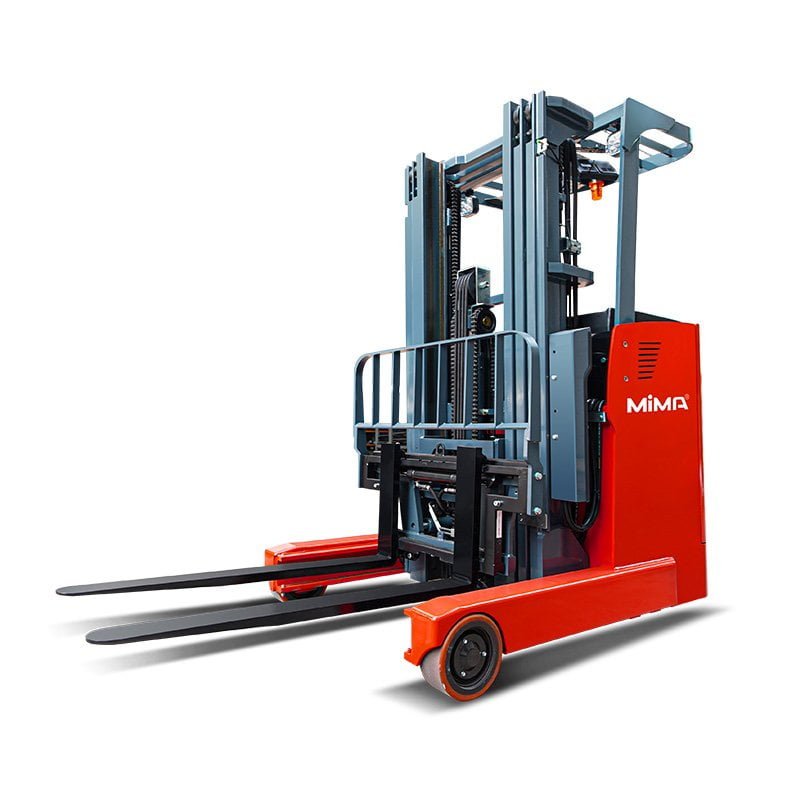

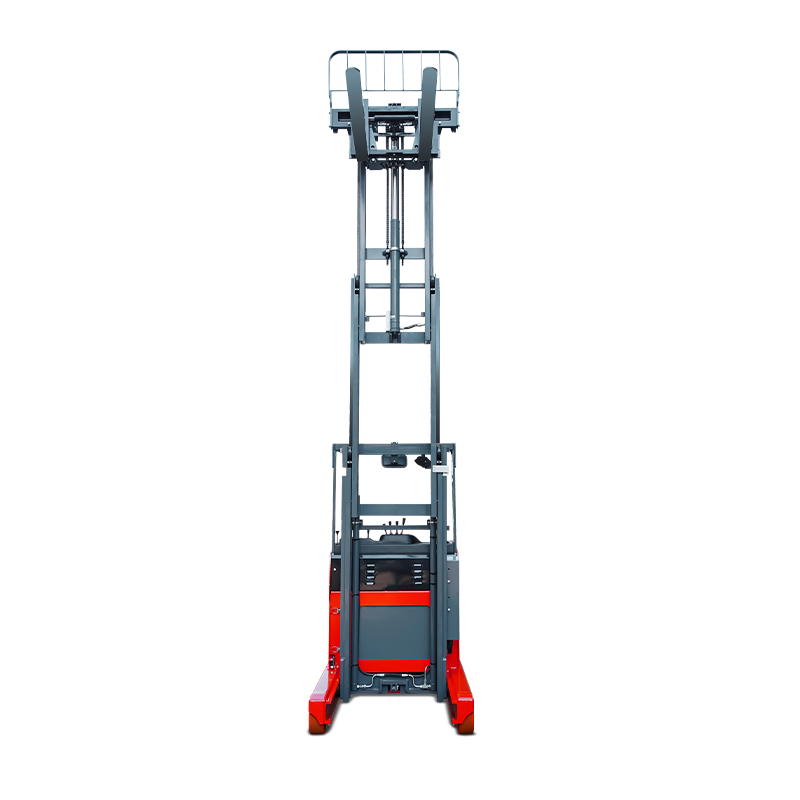

1.2 Ton Stand-on Electric Reach Truck
- Model: MF12 / MF12SQ
- Capacity: 1200 kg
- Lift Height: Up to 4.5m/6m
Description:
The MF12 stand-on electric reach truck is designed for medium-density storage, high-turnover warehouse operations and pallet stacking in narrow aisles. With 1200 kg load capacity, up to 6000 mm lift height, compact stand-on operation, mast reach movement, electric steering and side-pull battery access, it provides an efficient solution for daily warehouse pallet handling.
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Mast Reach Function
Stores pallets without moving the whole truck.
MiMA
Electric Steering
Reduces steering effort during daily operation.
MiMA
AC Drive System
Responsive performance with lower maintenance.
MiMA
Side-Pull Battery
Simplifies battery replacement and service.
MiMA
Cornering speed limitation
It ensures safe operation during turns.
Product Data
Technical Specifications
Compare the available MF12SQ / MF12 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MF12SQ | MF12 |
|---|---|---|
| Model | MF12SQ | MF12 |
| Operation Type | Stand-on | Stand-on |
| Load Capacity | 1200 kg | 1200 kg |
| Lift Height | 4500-6000 mm | 3000–4500 mm |
| Mast Type | Triplex Full Free Mast | Duplex Mast |
| Fork Outside Spread | 222-750 mm | 222–750 mm |
| Aisle Width | 2521 mm with 1000×1200 mm pallet; 2561 mm with 800×1200 mm pallet | 2502 mm with 1000×1200 mm pallet; 2537 mm with 800×1200 mm pallet |
| Battery Specification | Lead-acid: 24V / 350 or 420Ah; Lithium: 24V / 200Ah | Lead-acid: 24V / 350 or 420Ah; Lithium: 24V / 200Ah |
Product Overview
Product Details
Practical Reach Truck for Narrow Aisle Warehouses
- The MF12 is suitable for medium-density storage and high-turnover warehouse operations where compact handling is important.
- Its stand-on structure, small turning radius and reach mast function help operators work efficiently in narrower aisles.
- This makes it a practical upgrade for customers moving from basic pallet stackers to a more efficient reach truck solution.
Mast Reach for Easier Pallet Storage
- The mast can move forward and retract, allowing pallets to be stored and retrieved without moving the whole truck body.
- This improves positioning control when working close to racking.
- Customers benefit from smoother pallet handling, safer placement and better use of warehouse aisle space.
Comfortable Daily Operation
- Electric steering reduces steering effort and helps lower operator fatigue during frequent handling tasks.
- Ergonomic pedals, easy-to-use control levers and a multifunctional display support comfortable daily operation.
- Some configurations can include wheel position display, helping operators understand steering direction more clearly.
Reliable Electric Performance
- The maintenance-free AC drive system supports quick and accurate truck response.
- Lower maintenance requirements help reduce service work and downtime in daily warehouse operations.
- This makes the MF12 suitable for customers who need a dependable compact reach truck for frequent pallet movement.
Safer Stacking and Better Visibility
- Tilting forks and optional side shifter make pallet stacking easier and help reduce the risk of goods sliding from the forks.
- A high-quality overhead guard supports operator protection during stacking operations.
- Cornering speed limitation ensures safe operation during turns.
Easy Battery Access
- Side-pull battery design makes battery charging, replacement and maintenance more convenient.
- Lead-acid and lithium battery configurations are available to match different usage habits.
- Easier battery access helps support continuous operation and routine service efficiency.
Product Support
Frequently Asked Questions
Find answers to common questions about MF12SQ / MF12. For application-specific advice, contact MiMA Australia.
What is the MF12 reach truck used for?
The MF12 is used for pallet handling, stacking and storage in medium-density warehouses, especially where aisle space is limited.
What is the load capacity of the MF12?
The MF12 has a rated load capacity of 1200 kg.
What is the maximum lift height?
The MF12SQ configuration can support lift heights up to 6000 mm.
What is the difference between MF12 and MF12SQ?
The MF12 is listed with 4500 mm lift height, while the MF12SQ uses a triplex full free mast configuration and supports up to 6000 mm lift height.
What aisle width does the MF12 require?
Depending on pallet size and mast configuration, the MF12 requires approximately 2502–2537 mm aisle width.
What battery options are available?
The MF12 and 12SQ can use 24V / 350 or 420Ah lead-acid battery or a 24V / 200Ah lithium battery.
Does the MF12 support side-pull battery replacement?
Yes. The MF12 uses side-pull battery access for easier replacement, charging and maintenance.
