Reach 585 mm into Racking
The pantograph mechanism moves the forks forwards without moving the complete chassis.
Electric Pallet Stacker
1.6T Walkie Pantograph Electric Reach Stacker MBG16
MBG16 is a 1.6-tonne walkie pantograph electric reach stacker for deep racking and double-sided pallets. Its single-scissor reach mechanism extends the forks by 585 mm, while fork tilt, adjustable support legs and a triplex full-free mast support precise load access. Electric proportional hydraulics and power steering improve control during indoor stacking and retrieval.
Ideal For
- Deep-racking pallet retrieval
- Double-sided and closed-bottom pallets
- Indoor stacking where forward reach is required
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Position Loads Precisely
Proportional reach and fork tilt support controlled pallet entry and placement.
MiMA
Support Deep Storage Layouts
The reach mechanism accesses pallet positions beyond the support-leg line.
Product Data
Technical Specifications
Compare the available MBG16 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MBG16 |
|---|---|
| Model | MBG16 |
| Operation Type | Walkie |
| Load Capacity | 1,600 kg |
| Lift Height | 3,600–5,000 mm |
| Mast Type | Triplex Full Free |
| Fork Outside Spread | 320–872 mm |
| Aisle Width | 2,823 mm with 1,000 × 1,200 mm pallet |
| Battery Specification | 24V/350Ah lead-acid; 24V/200–300Ah lithium optional |
Product Overview
Product Details
Pantograph Reach for Deep Racking

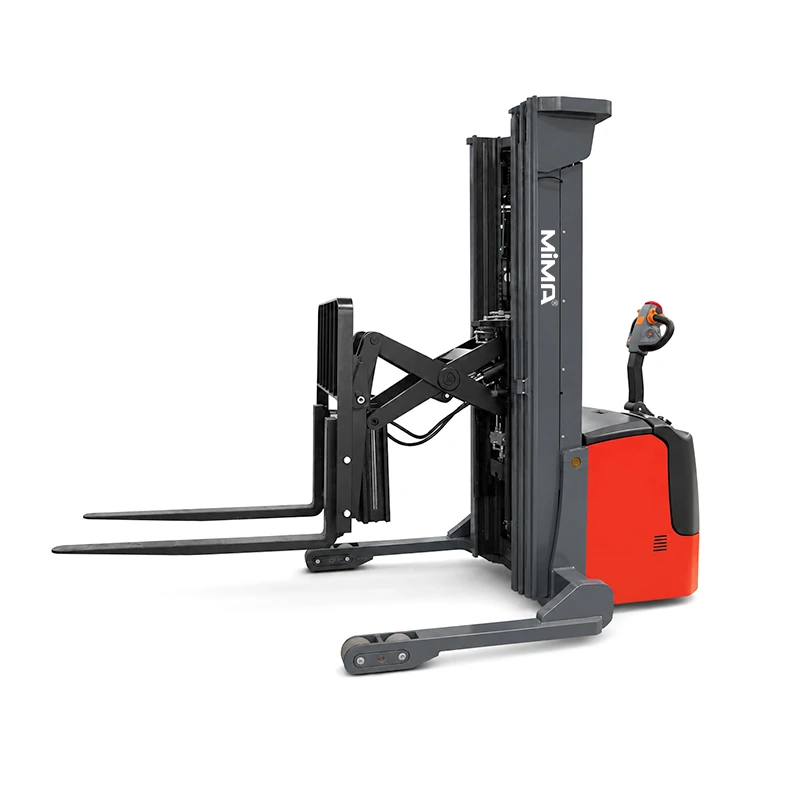

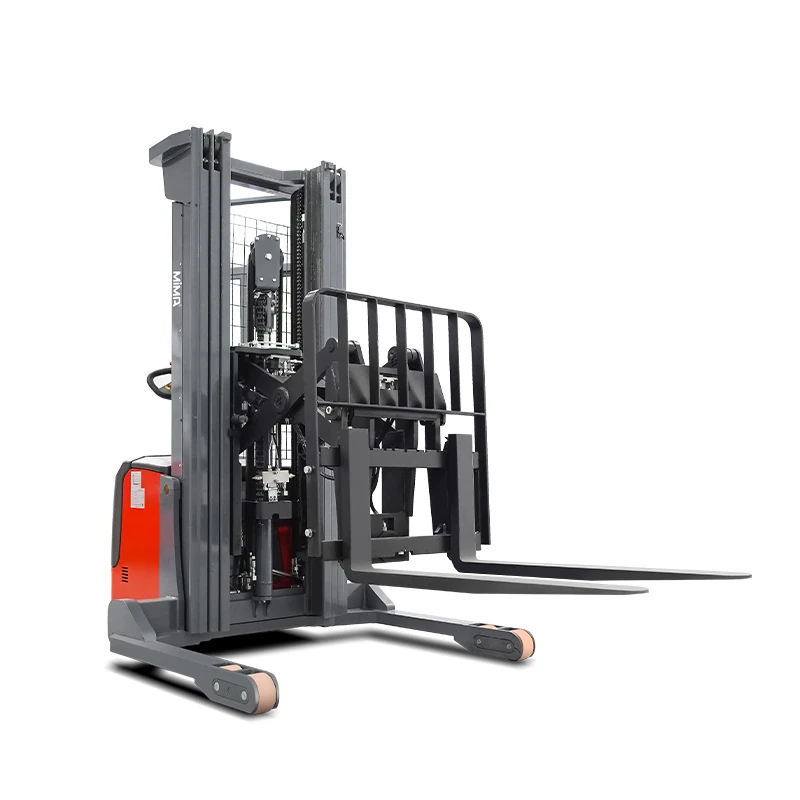

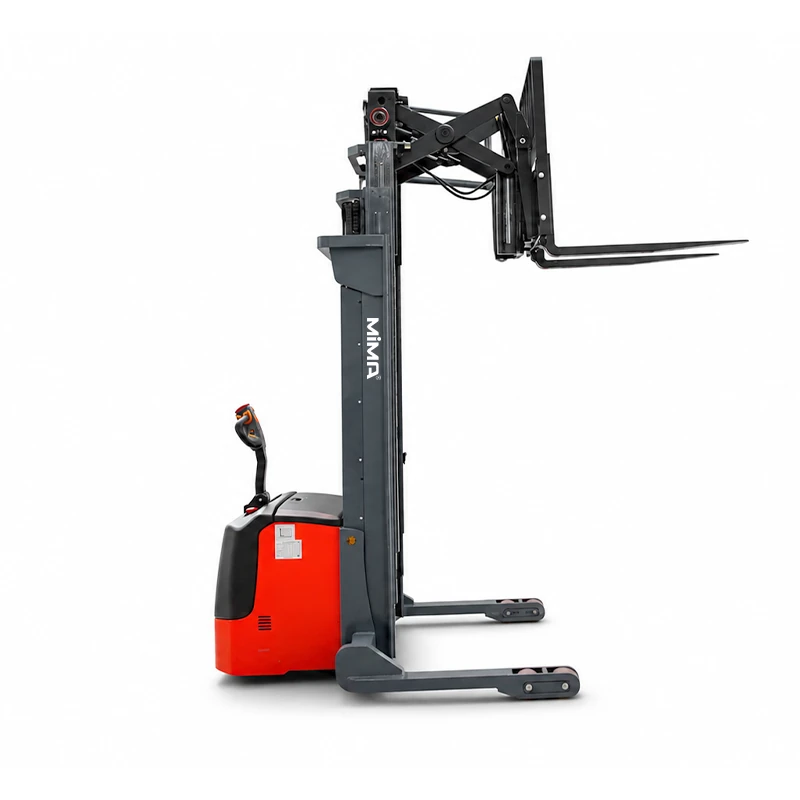

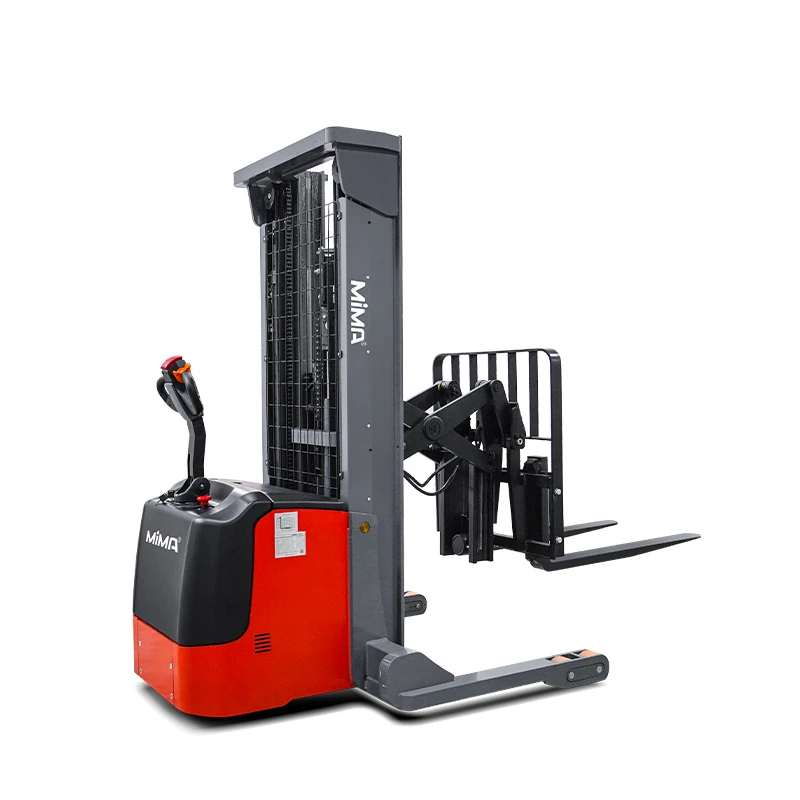

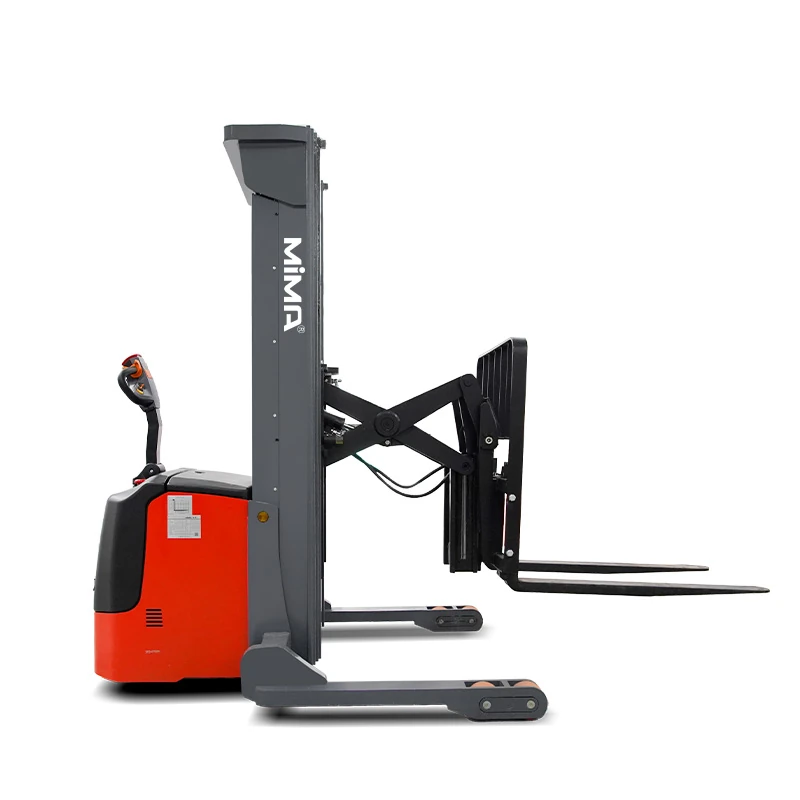

The MBG16 combines a walkie pallet stacker with a single-scissor pantograph. The forks extend 585 mm beyond the support-leg line, allowing access to deep pallet positions.
Adjustable Pallet Interface
Fork outside spread adjusts from 320 to 872 mm, while support-leg width can be configured for different pallet dimensions. The truck is suited to approved double-sided pallets.
Triplex Full-Free Mast
Lift heights from 3.6 to 5.0 metres are available. The full-free-lift mast supports operation where overhead clearance is limited.
Proportional Hydraulic Control
Electric proportional reach and standard fork tilt support smoother pallet positioning. Side shift or fork positioning can be specified where required.
Stable Electric Operation
The three-point chassis, high-strength mast structure and electric steering support controlled handling. Battery capacity should be selected according to lift cycles, reach cycles and travel distance.
