Stand or Sit to Suit the Route
The operating arrangement supports different travel distances and work patterns.
Electric Pallet Truck

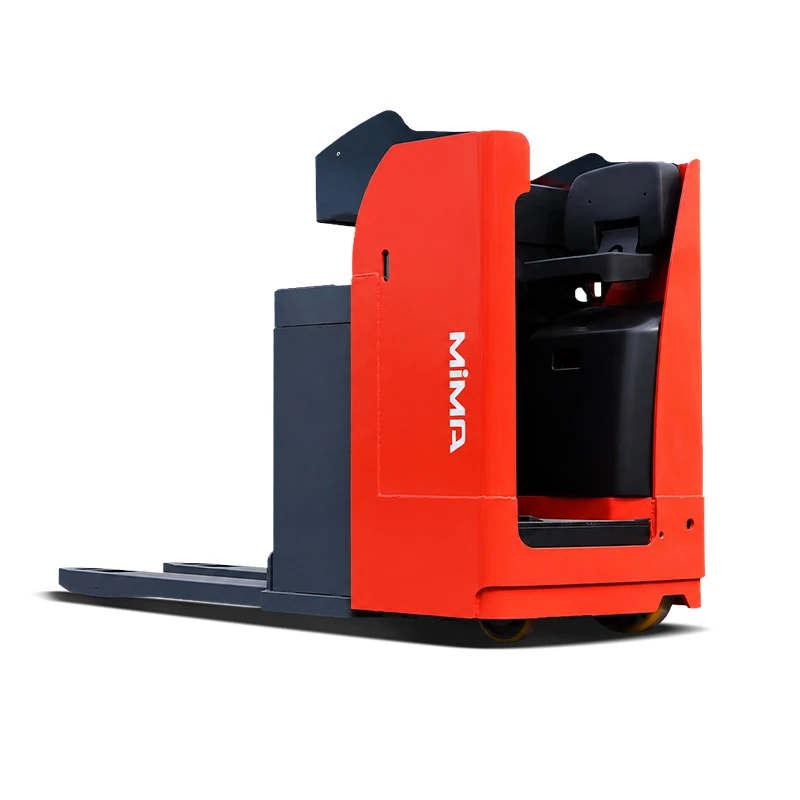

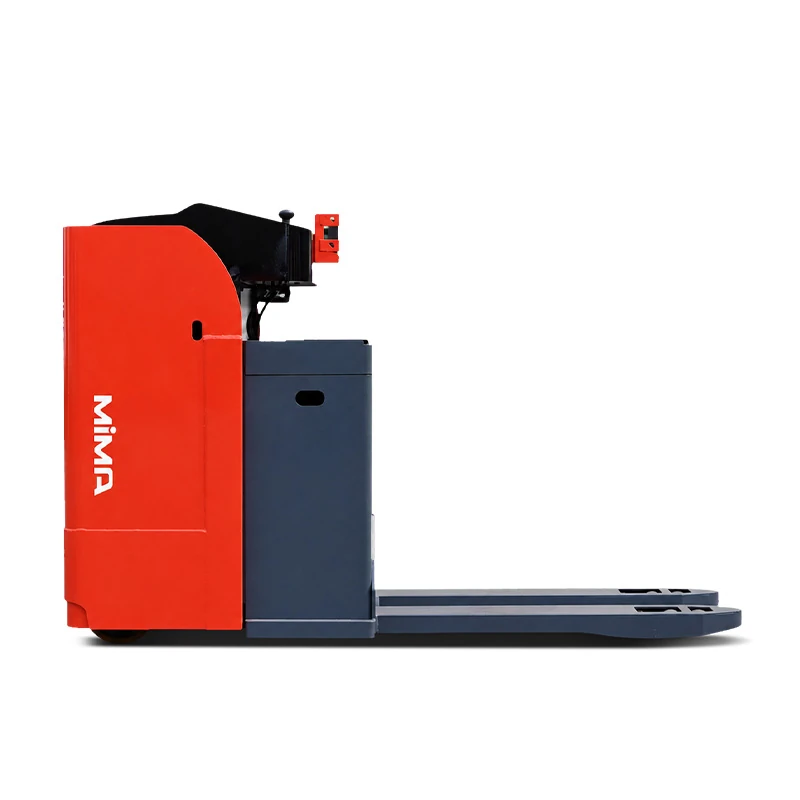

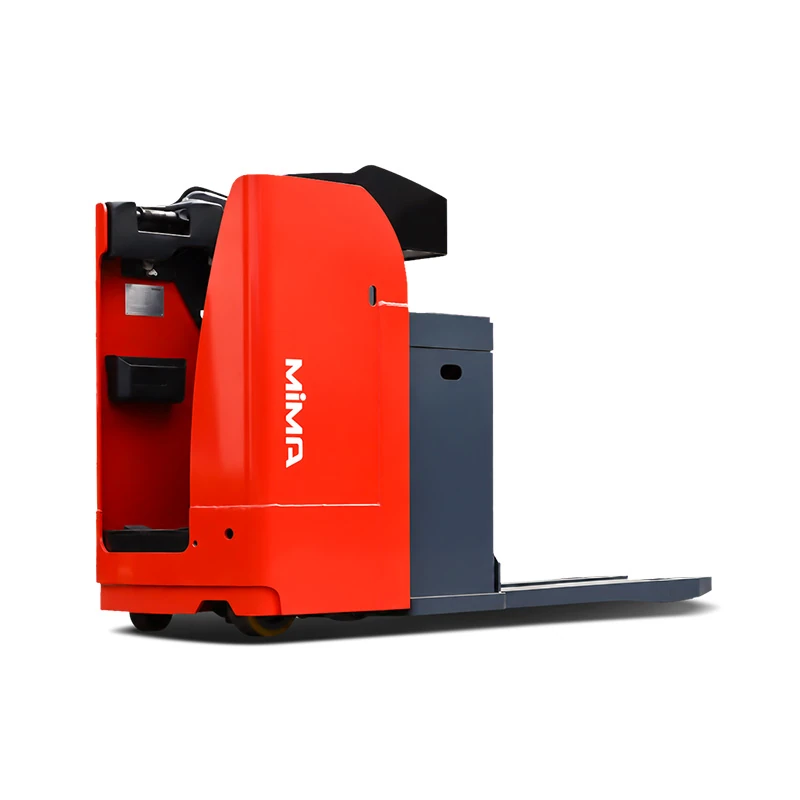

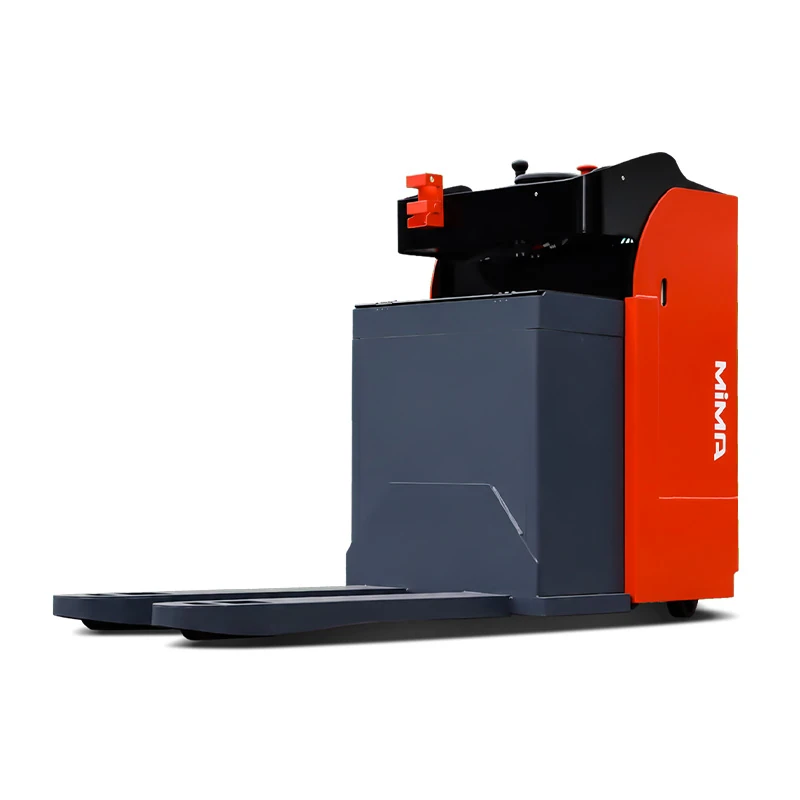

2.0T Stand-on/Seated Electric Pallet Truck MEB20
MEB20 is a 2.0-tonne electric pallet truck designed for medium-to-long-distance horizontal transport. Its rigid four-point chassis and stand-on/seated operating arrangement support stable, comfortable travel during repeated pallet movements. Electric steering, AC drive and a 24V high-capacity battery system make it suitable for logistics, manufacturing, cold-chain and busy warehouse applications.
Ideal For
- Medium-to-long-distance pallet movement
- Logistics, manufacturing and cold-chain facilities
- Repeated transport where operator seating reduces fatigue
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Rigid Four-Point Chassis
Provides stable support during straight travel, turning and pallet positioning.
MiMA
Travel at up to 10 km/h
Supports productive pallet transport across larger warehouse and production sites.
Product Data
Technical Specifications
Compare the available MEB20 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MEB20 |
|---|---|
| Model | MEB20 |
| Operation Type | Seated / Stand-on |
| Load Capacity | 2,000 kg |
| Lift Height | 120 mm |
| Mast Type | N/A – pallet truck |
| Fork Outside Spread | 510 / 540 / 680 mm |
| Aisle Width | 2,160 mm with 1,000 × 1,200 mm pallet |
| Battery Specification | 24V/400Ah lead-acid; 24V/300Ah lithium |
Product Overview
Product Details
Pallet Transport Over Longer Routes
The MEB20 is designed for repeated horizontal pallet movement across warehouses, production facilities and logistics centres. Its 2,000 kg capacity covers common medium- and heavy-pallet applications.
Stand-on and Seated Operation
The operator area supports stand-on or seated travel according to route length and work pattern. The arrangement can reduce fatigue when pallet movement involves repeated longer runs.
Four-Point Stability
A rigid four-point chassis provides stable support during travel and turning. Pallet condition, load distribution and floor quality remain important when operating at rated capacity.
AC Drive and Electric Steering
Brushless AC traction supports efficient operation with reduced routine motor maintenance. Electric steering lowers effort during manoeuvring and repeated pallet positioning.
High-Capacity Battery System
The standard 24V/400Ah lead-acid battery supports extended daily use. A 24V/300Ah lithium battery is available for opportunity charging and lower routine battery maintenance.
Product Support
Frequently Asked Questions
Find answers to common questions about MEB20. For application-specific advice, contact MiMA Australia.
Is the MEB20 a seated or stand-on pallet truck?
It supports both operating postures. The final seat and operator-area configuration should be confirmed when ordering.
When is MEB20 preferable to ME20?
MEB20 is better suited to longer travel routes, higher daily utilisation and operations where a seated driving position can reduce operator fatigue.
Which pallet widths can it handle?
Standard fork outside spreads include 510, 540 and 680 mm. The pallet pocket dimensions must be checked before selecting the fork configuration.
What battery options are available?
The standard specification is 24V/400Ah lead-acid. A 24V/300Ah lithium battery can be selected for opportunity charging and reduced maintenance.
Can the MEB20 be used in cold storage?
A cold-store configuration may be possible, but battery performance, seals, electrical protection, lubricants and condensation management must be evaluated.
