Move Heavier Pallets
Choose 3,000 or 4,000 kg capacity according to the maximum operational load.
Electric Pallet Truck

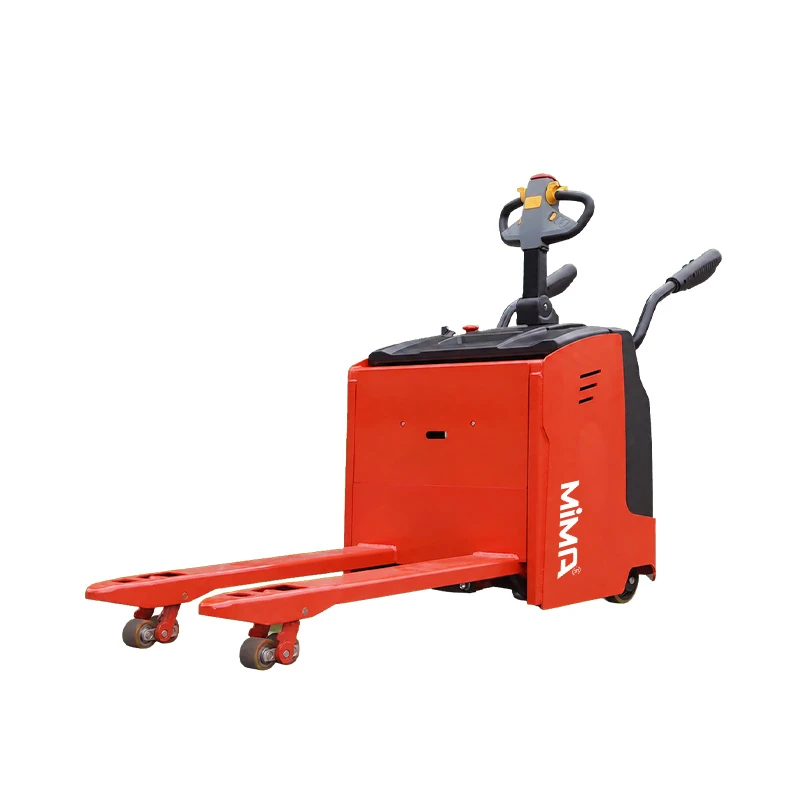

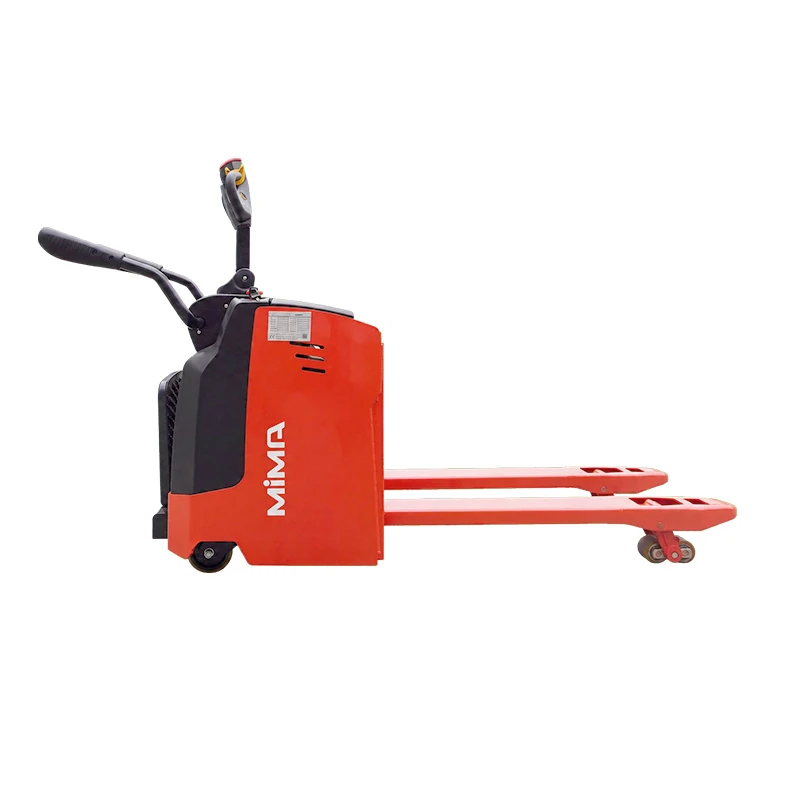

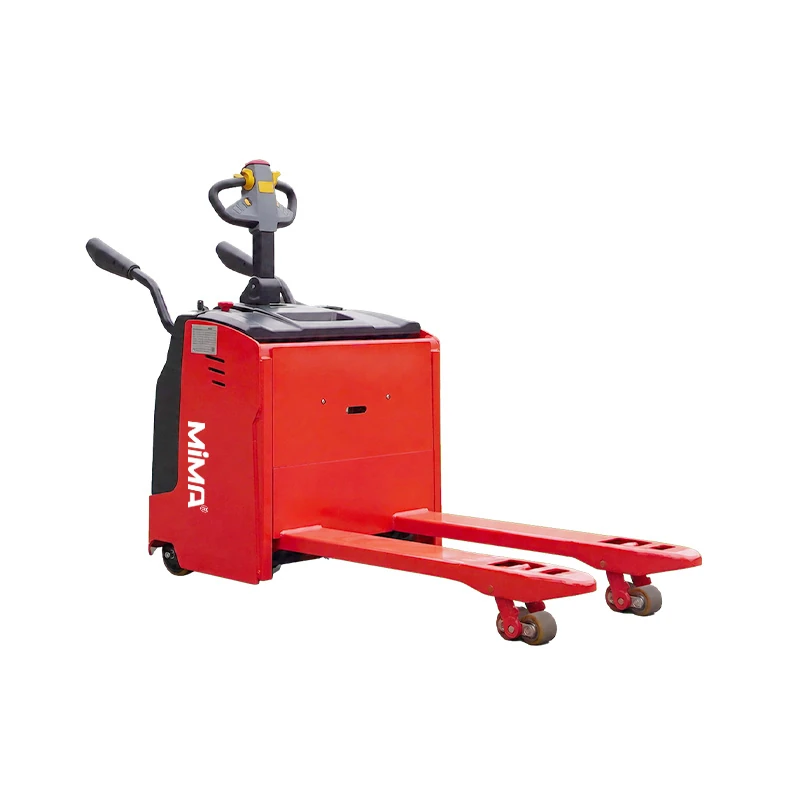

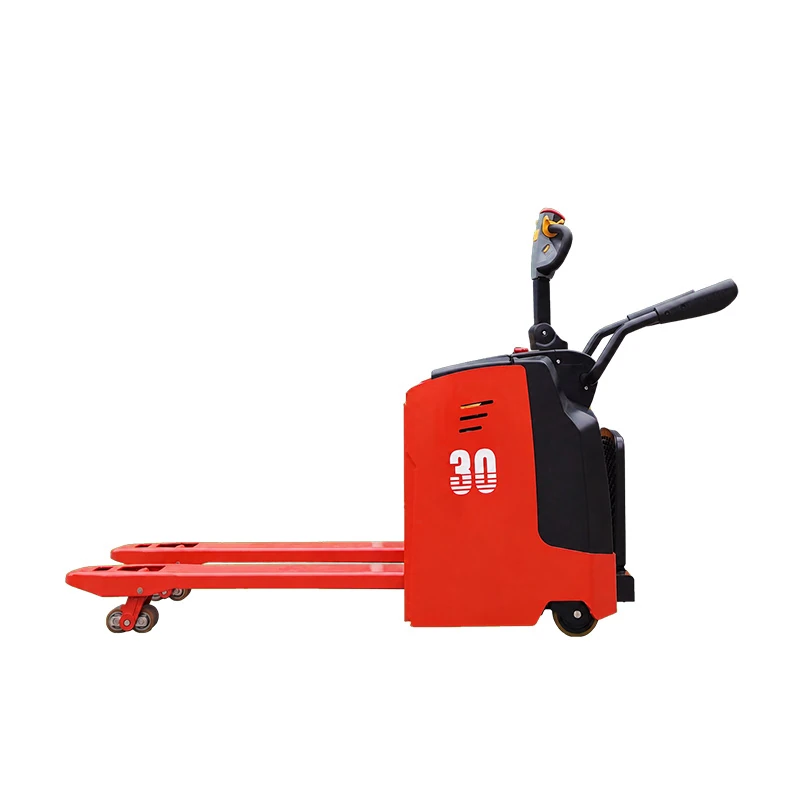

3.0-4.0T Heavy-Duty Stand-on Electric Pallet Truck ME30/40
ME30/40 is a heavy-duty stand-on electric pallet truck range for 3,000 and 4,000 kg loads. Its reinforced structure, floating drive suspension, electric steering and folding side guards support stable pallet movement across medium-distance warehouse routes. AC traction, electromagnetic braking and configurable batteries help maintain controlled performance in logistics, manufacturing and loading-area applications.
Ideal For
- Heavy pallet movement in warehouses and factories
- Medium-distance transport between production and storage areas
- Logistics operations handling loads up to 4,000 kg
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Maintain Drive-Wheel Contact
Floating suspension supports traction and stability across suitable warehouse floors.
MiMA
Control Speed Through Turns
Corner-speed control adjusts travel behaviour as steering angle increases.
Product Data
Technical Specifications
Compare the available ME30 / ME40 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | ME30 | ME40 |
|---|---|---|
| Model | ME30 | ME40 |
| Operation Type | Stand-on | Stand-on |
| Load Capacity | 3,000 kg | 4,000 kg |
| Lift Height | 195 mm | 200 mm |
| Mast Type | N/A – pallet truck | N/A – pallet truck |
| Fork Outside Spread | 685 mm | 685 mm |
| Aisle Width | 2,150 / 2,590 mm, platform folded/deployed | 2,150 / 2,590 mm, platform folded/deployed |
| Battery Specification | 24V/210Ah lead-acid; lithium optional | 24V/270Ah lead-acid; lithium optional |
Product Overview
Product Details
Heavy-Duty Horizontal Transport
The ME30/40 range extends the standard stand-on pallet-truck format to 3.0- and 4.0-tonne capacities. Reinforced structural components support heavier pallet movement in warehouses, workshops and production facilities.
Folding Platform and Side Guards
The shock-absorbing platform supports medium-distance travel. Folding side guards provide operator containment when deployed, while the folded configuration reduces the truck’s working envelope.
Floating Drive Suspension
The suspension helps keep the drive wheel in contact with the floor, supporting traction during travel and directional changes. The trucks are intended for suitable industrial surfaces.
Electric Steering and AC Traction
Electric steering reduces physical effort during repeated manoeuvring. AC traction, electromagnetic parking braking, emergency reverse and corner-speed control support controlled daily operation.
Application-Matched Batteries
ME30 uses a 24V/210Ah standard battery, while ME40 uses a 24V/270Ah battery. Lithium, side-removal battery and alternative-capacity configurations can be selected according to operating hours and charging arrangements.
Product Support
Frequently Asked Questions
Find answers to common questions about ME30 / ME40. For application-specific advice, contact MiMA Australia.
When should ME40 be selected instead of ME30?
Select ME40 when operational loads exceed 3,000 kg or when additional rated-capacity margin is required. Pallet condition and load distribution must also be checked.
Does deploying the platform change the aisle requirement?
Yes. With a 1,000 × 1,200 mm pallet, the specified aisle width increases from approximately 2,150 to 2,590 mm.
Are ME30 and ME40 suitable for continuous heavy handling?
They are designed for demanding pallet transport, but battery capacity, floor condition, route length and pallet throughput must be matched to the duty cycle.
Can non-standard forks be supplied?
Fork length, width and outside spread can be configured. Any change must be checked against pallet entry, turning radius and rated-load requirements.
Are these trucks intended for outdoor yards?
They are primarily indoor warehouse trucks. Protected outdoor transfers may be possible after reviewing surface condition, water exposure, gradients and wheel specification.
