Move Loads up to 10 Tonnes
Select a standard 6-tonne pallet truck or an application-specific high-capacity configuration.
Electric Pallet Truck

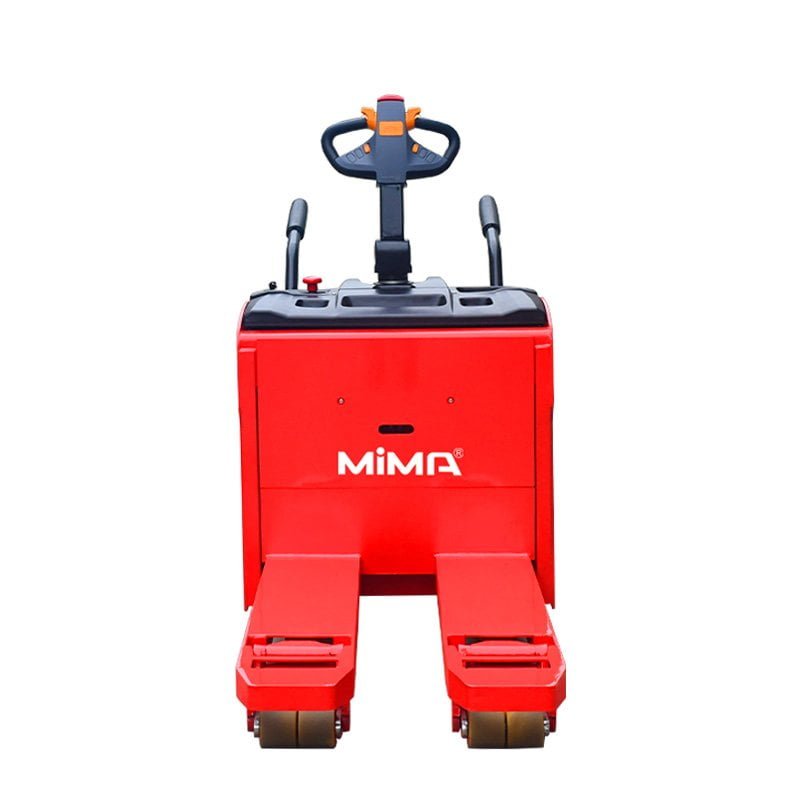

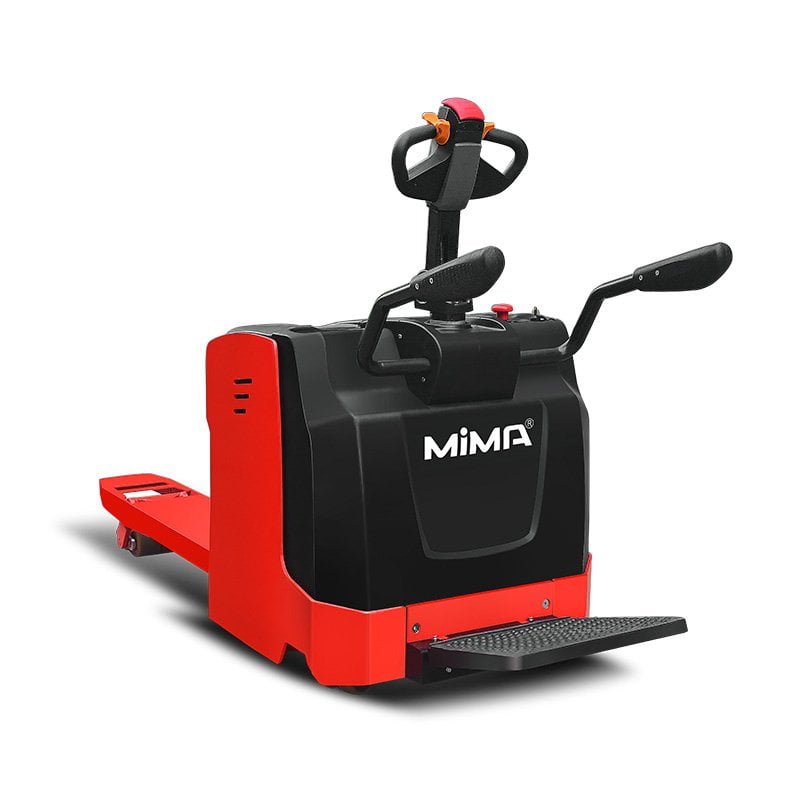

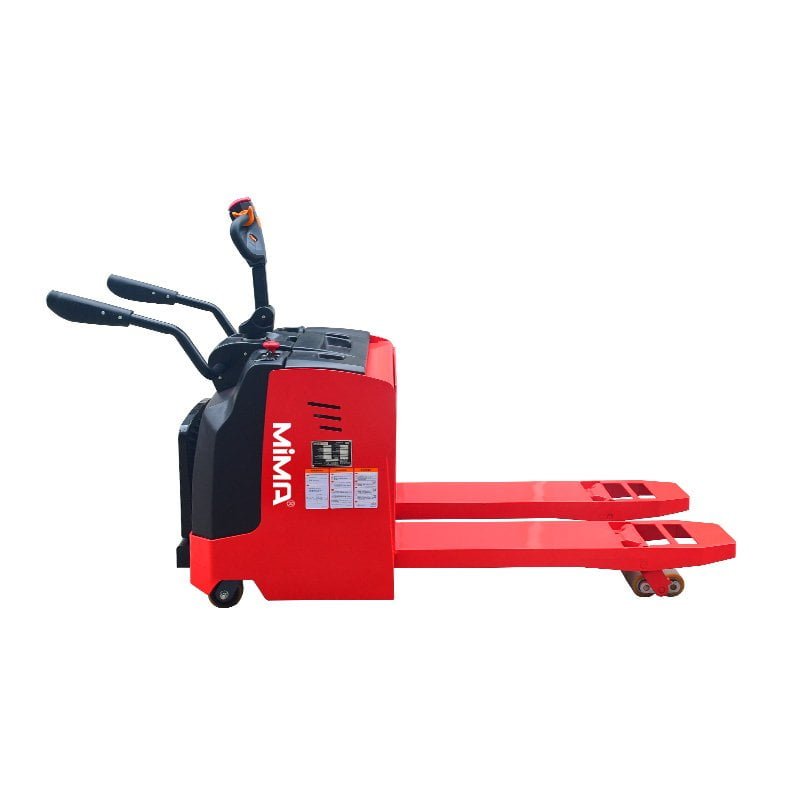

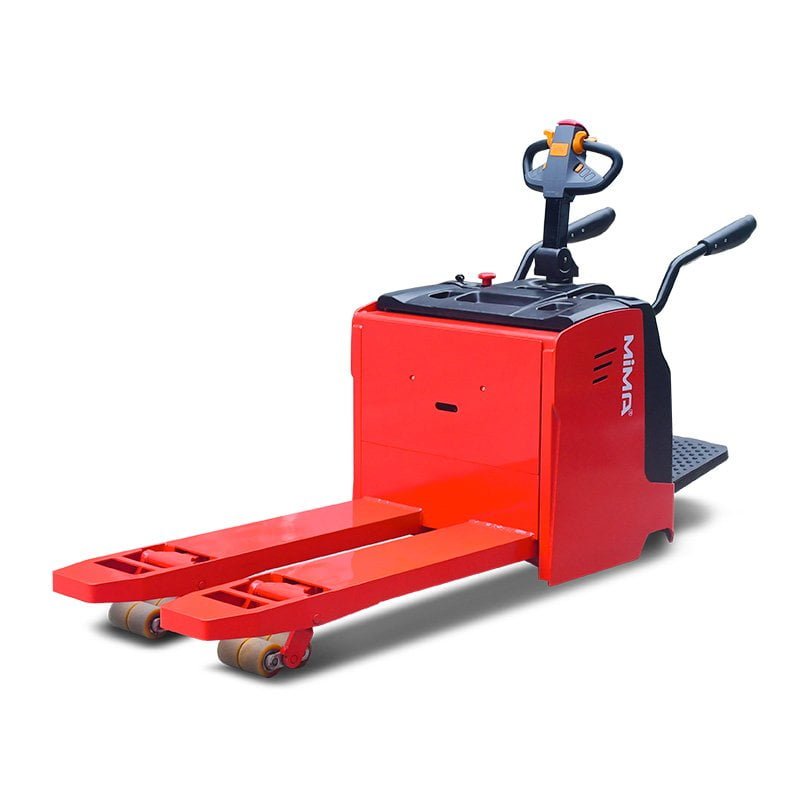

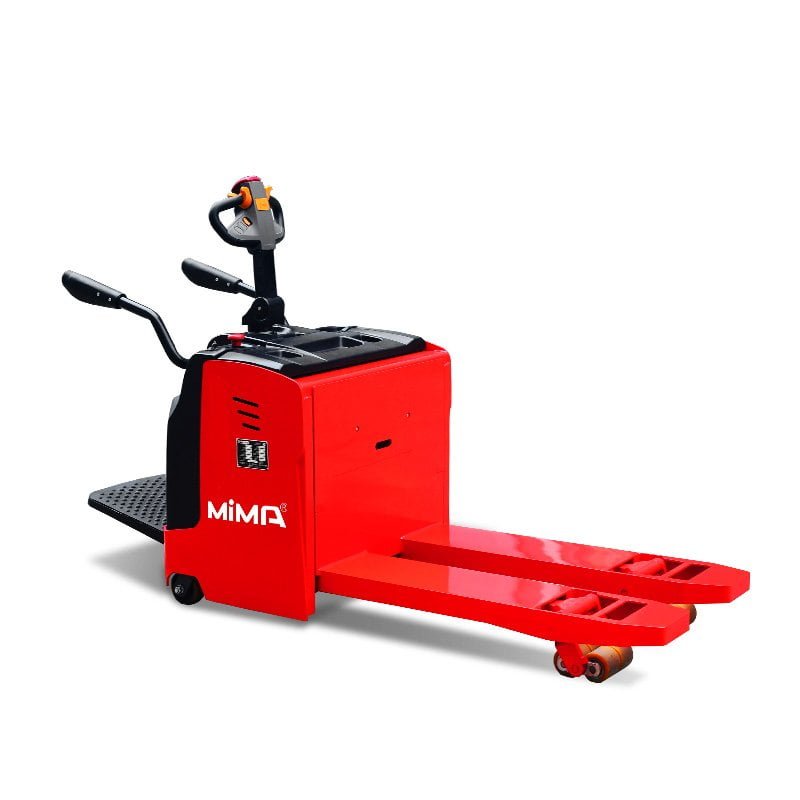

6.0-8.0T High-Capacity Electric Pallet Truck ME60/80
ME60/80 range is designed for heavy horizontal transport from 6,000 kg to application-specific 8,000–10,000 kg configurations. Reinforced structures, electric drive and application-matched batteries support demanding logistics, manufacturing, port and steel-processing routes over repeated medium-to-long-distance transfer cycles.
Ideal For
- Heavy pallet and industrial-load transfer
- Ports, steel processing and large manufacturing facilities
- Application-specific loads from 6,000 to 10,000 kg
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Match the Load Interface
ME80 platforms and load-support dimensions are engineered around the actual goods.
MiMA
Built for Repeated Routes
Electric drive supports heavy horizontal transfer over planned industrial transport routes.
Product Data
Technical Specifications
Compare the available ME60 / ME80 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | ME60 | ME80 |
|---|---|---|
| Model | ME60 | ME80 |
| Operation Type | Stand-on | Stand-on |
| Load Capacity | 6,000 kg | 8,000 kg; up to 10,000 kg by configuration |
| Lift Height | 205 mm | Application-specific platform lift |
| Mast Type | N/A – pallet truck | N/A – high-capacity platform truck |
| Fork Outside Spread | 715 mm | Customised to load or platform |
| Aisle Width | 2,250 / 2,690 mm, platform folded/deployed | Configuration dependent |
| Battery Specification | 24V/270Ah lead-acid; lithium optional | 48V lithium, capacity matched to application |
Product Overview
Product Details
High-Capacity Horizontal Transport
The ME60/80 range covers heavy material movement beyond standard warehouse pallet-truck capacities. ME60 is intended for 6,000 kg palletised loads, while ME80 addresses larger industrial loads from 8,000 kg.
Stand-on Pallet-Truck Layout
ME60 combines a folding platform, side guards, electric steering and a 715 mm fork spread. Its specified aisle width is 2,250 mm with the platform folded and a 1,000 × 1,200 mm pallet.
ME80 Application-Specific Platform
ME80 uses a side-operating layout with the load platform or fork system engineered around the goods. Capacity can be configured up to 10,000 kg following technical evaluation.
Reinforced Structure and Electric Drive
Both models use reinforced load-support structures and electric traction for repeated industrial routes. The drive, braking and wheel configuration must be matched to the load, surface and operating speed.
Floor and Route Assessment
At these capacities, floor loading, dock plates, gradients, turning space and load distribution are part of truck selection. A site assessment is required before finalising the ME80 configuration.
Battery Configuration
ME60 uses a 24V system, while ME80 uses an application-matched 48V lithium system. Battery capacity and charger output should be calculated from travel distance, load cycle and available charging windows.
Product Support
Frequently Asked Questions
Find answers to common questions about ME60 / ME80. For application-specific advice, contact MiMA Australia.
What is the difference between ME60 and ME80?
ME60 is a conventional 6,000 kg stand-on pallet truck. ME80 is a side-operated, high-capacity platform truck engineered for 8,000 kg loads and selected applications up to 10,000 kg.
Is 10,000 kg a standard ME80 capacity?
The base product is rated at 8,000 kg. A 10,000 kg version requires confirmation of the load, platform, load centre, route and structural configuration.
Can ME80 platform dimensions be customised?
Yes. Platform or fork dimensions are selected around the actual load. Dimensional drawings and load data are required before quotation.
Does the floor need to be assessed?
Yes. Floor point loading, joints, gradients, dock equipment and turning areas must be reviewed for high-capacity truck operation.
How is the battery selected?
Battery voltage and capacity are matched to load, travel distance, shift duration, charging windows and environmental conditions.
