Combine Picking and Transport
Carries the pallet with the operator between ground-level picking locations.
Electric Pallet Truck

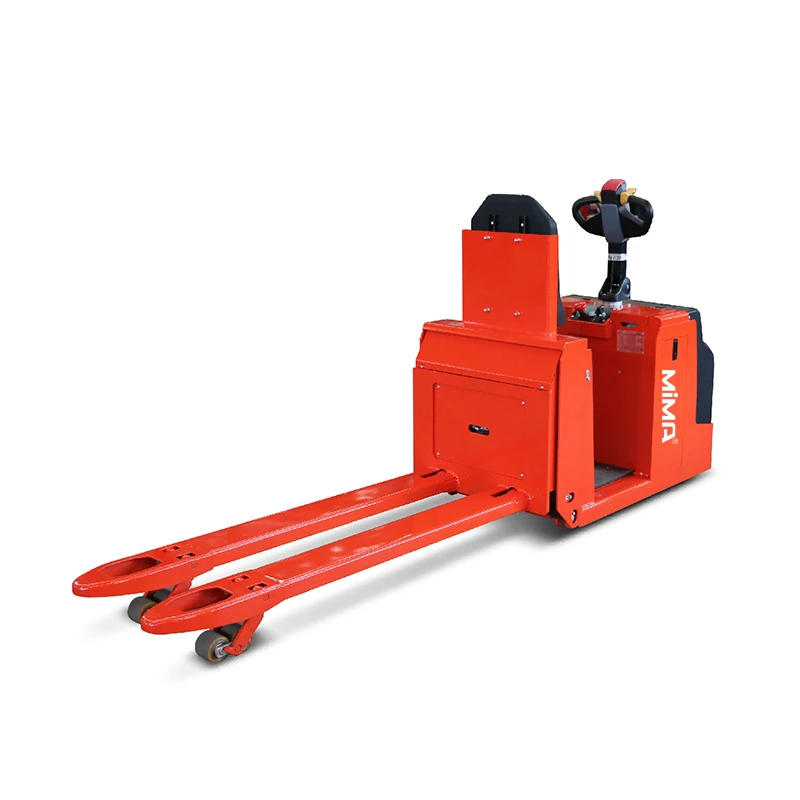

2.0T Low-Level Electric Order Picker MEC20
MEC20 is a 2.0-tonne low-level electric order picker combining ground-level case picking with horizontal pallet transport. Its stand-on platform, electric steering, floating drive suspension and speed control support frequent stops and repeated travel. A compact operating layout makes it suitable for warehouses, supermarkets, workshops and distribution centres handling mixed picking and replenishment tasks.
Ideal For
- Ground-level and first-level order picking
- Warehouse and supermarket replenishment
- Medium-distance pallet transport between picking locations
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
Maintain Drive-Wheel Traction
Floating suspension helps keep the drive wheel in contact with suitable indoor floors.
Control Speed Through Corners
Curve control moderates travel speed according to steering angle.
Product Data
Technical Specifications
Compare the available MEC20 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MEC20 |
|---|---|
| Model | MEC20 |
| Operation Type | Stand-on |
| Load Capacity | 2,000 kg |
| Lift Height | 115 mm |
| Mast Type | N/A – low-level order picker |
| Fork Outside Spread | 685 mm |
| Aisle Width | 3,050 mm with 1,000 × 1,200 mm pallet |

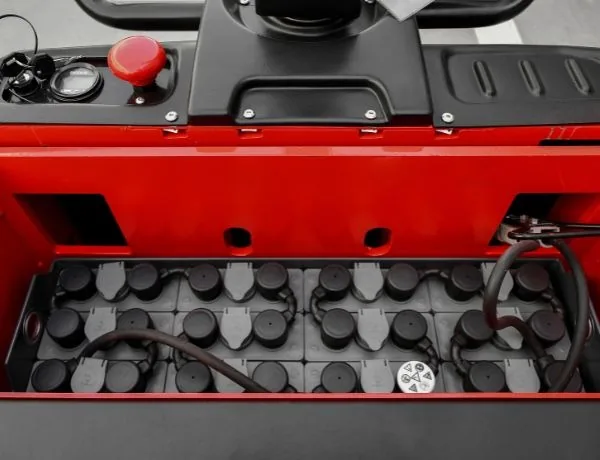

| Battery Specification | 24V/210Ah lead-acid |
Product Overview
Product Details
Low-Level Picking and Pallet Transport
The MEC20 combines a rider pallet truck with a low-level picking platform. It is intended for case picking and pallet movement at floor level rather than high-level order picking or rack stacking.
Designed for Frequent Stops
The stand-on operating position provides quick access for repeated picking cycles. The operator can move between locations without repeatedly mounting a conventional seated truck.
Floating Drive Suspension
The suspension arrangement supports drive-wheel contact and traction across suitable warehouse floors. A stable four-point layout supports controlled straight travel and turning.
Controlled Travel and Braking
Electric steering reduces steering effort. Curve-speed control moderates travel through corners, while electromagnetic braking applies automatically when power is disconnected.
Protected Electrical Components
A Curtis controller and waterproof, dust-resistant electrical connections support reliability in warehouse applications. The reinforced chassis is designed for repeated material-handling cycles.
Product Support
Frequently Asked Questions
Find answers to common questions about MEC20. For application-specific advice, contact MiMA Australia.
How is MEC20 different from a standard pallet truck?
MEC20 is arranged for repeated low-level order picking as well as pallet transport, giving the operator easier access during stop-and-pick cycles.
Can MEC20 pick from elevated racking?
It is intended for floor-level and low-level picking. Its 115 mm fork lift does not provide an elevating operator platform or stacking mast.
Can it stack pallets?
No. MEC20 is a low-level order picker and horizontal-transport truck, not a pallet stacker.
How much aisle width is required?
The available specification indicates approximately 3,050 mm with a 1,000 × 1,200 mm pallet. Site clearance should be added for safe operation.
What should be checked before ordering?
Confirm pallet dimensions, required fork length, route width, number of picks per shift, battery runtime and whether cold-store protection is required.
