Seated Reach Design
Comfortable operation for longer working shifts.

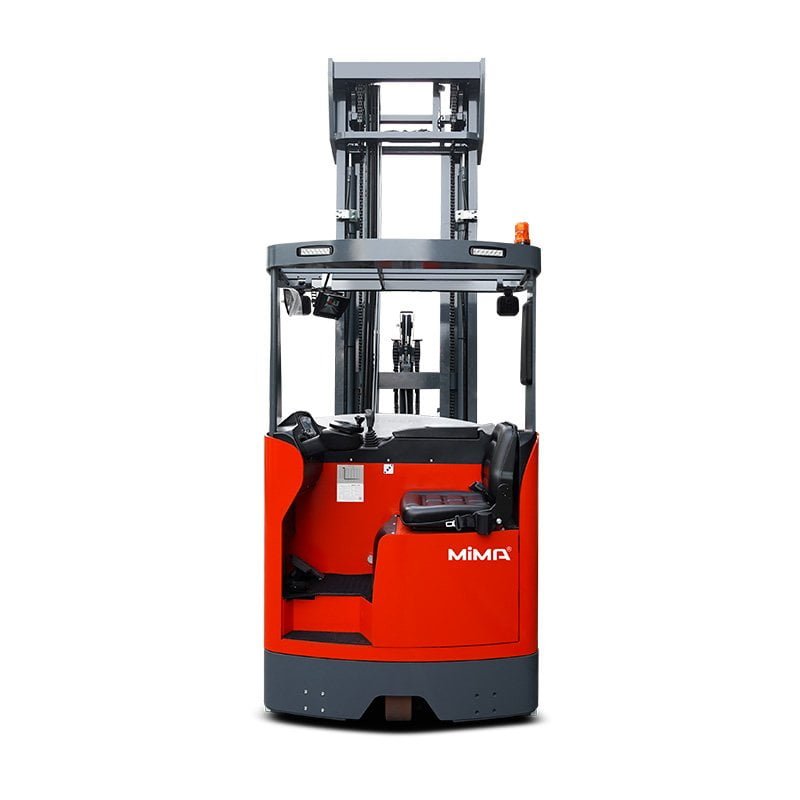

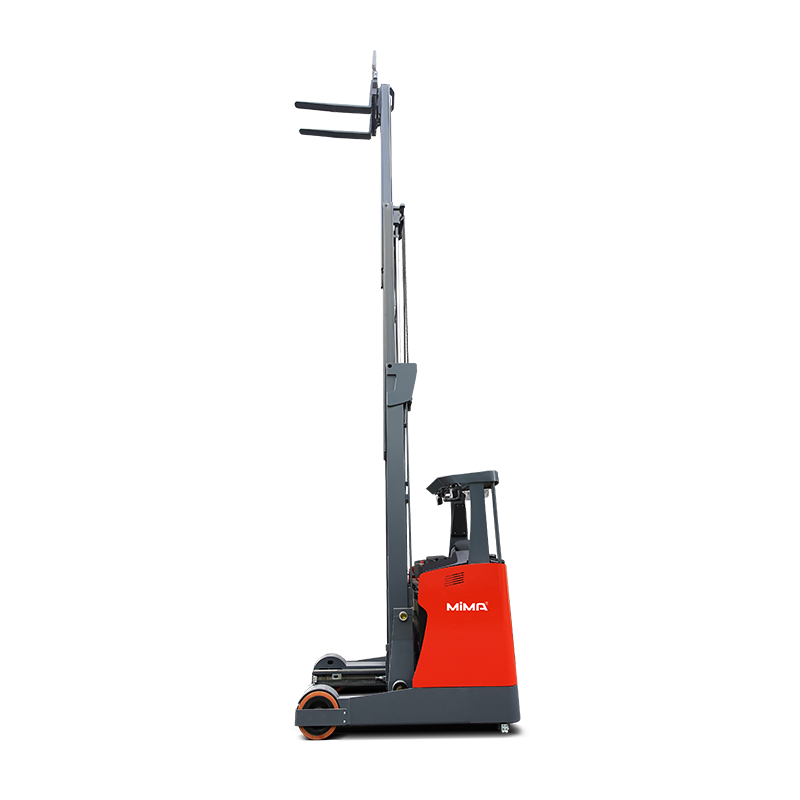

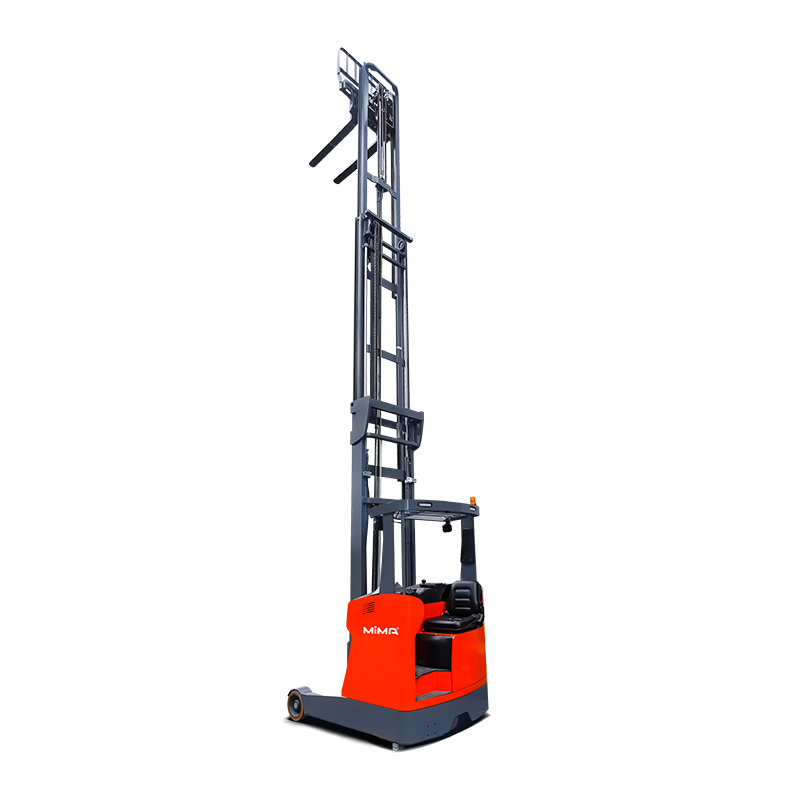

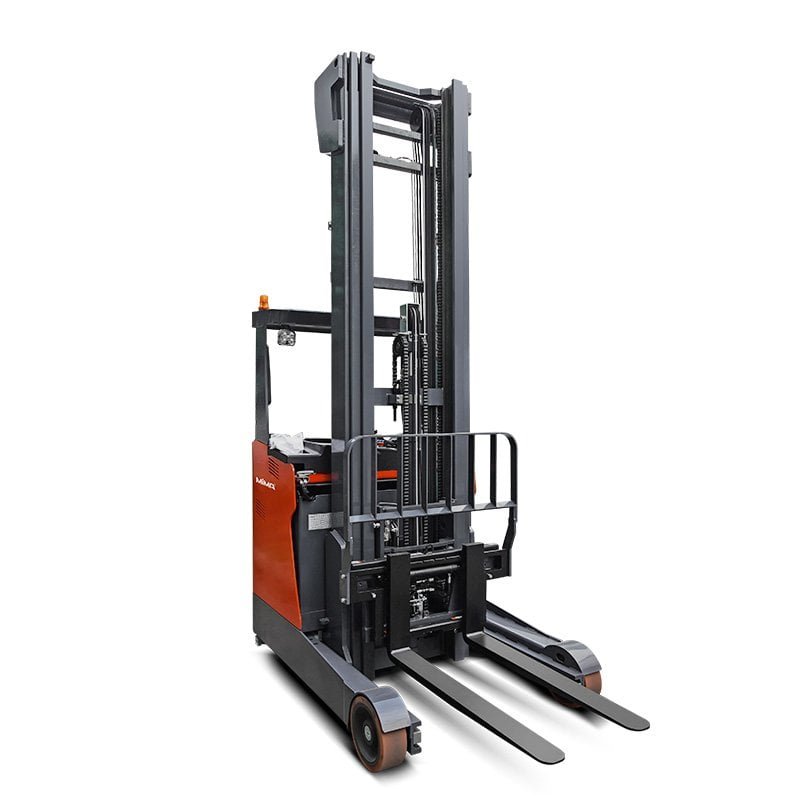

Electric Reach Truck

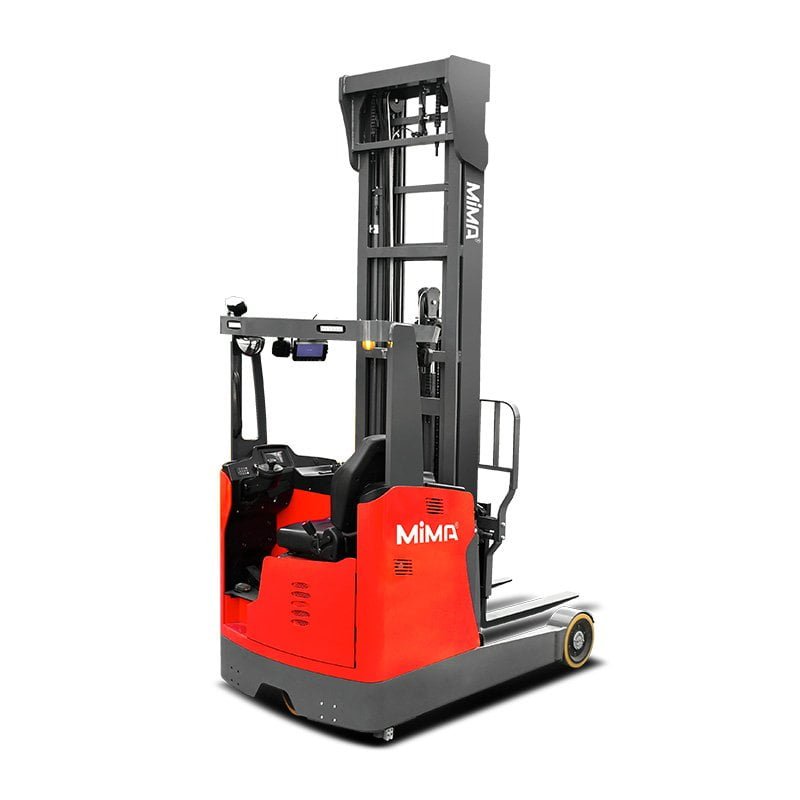

1.6–3.0 Ton Seated Electric Reach Truck
- Model: MFZ16 / MFZ20 / MFZ25 / MFZ30 Series
- Capacity: 1600–3000 kg
- Lift Height: Up to 12500 mm
Description:
The MFZ Series seated electric reach truck is designed for medium-density storage, high-turnover pallet handling and narrow aisle stacking applications. With 1600–3000 kg load capacity, lift height options up to 12500 mm, high-stability mast design, electric steering, it provides a strong reach truck solution for demanding warehouse
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.

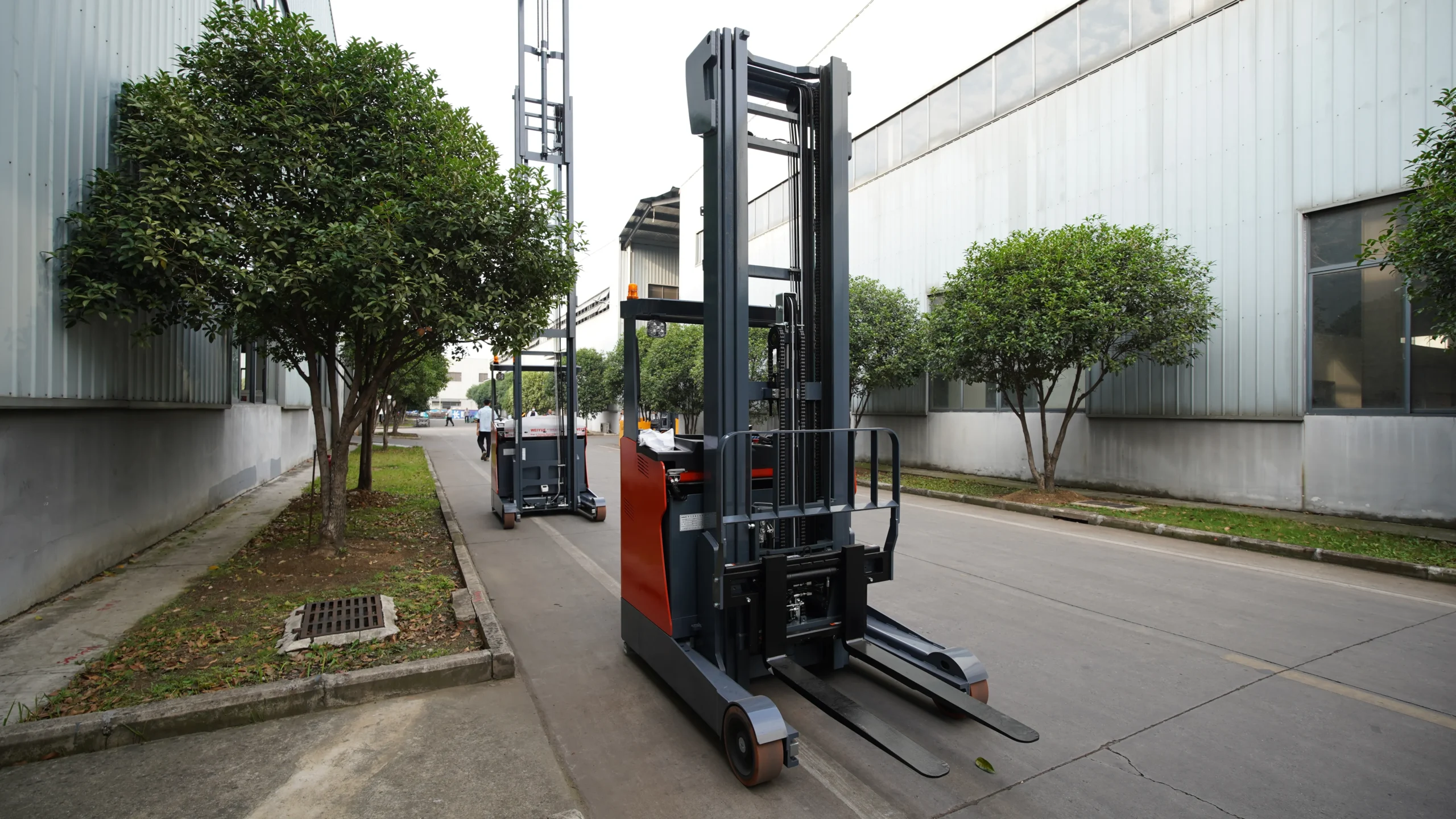

1.6–3.0 Ton Capacity
Covers light to heavy pallet handling needs.

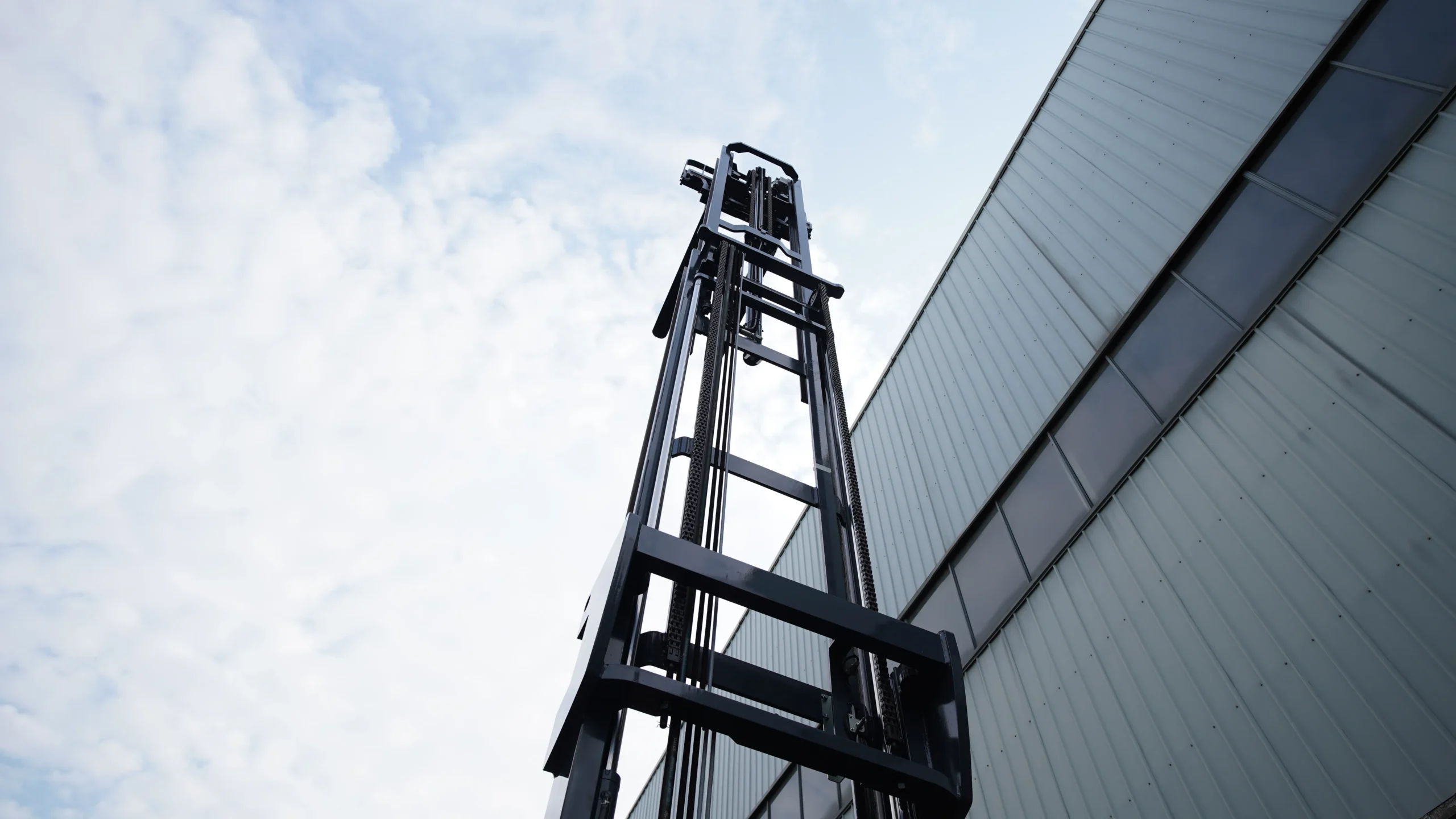

High-Stability Mast
Supports stable high-level pallet handling.

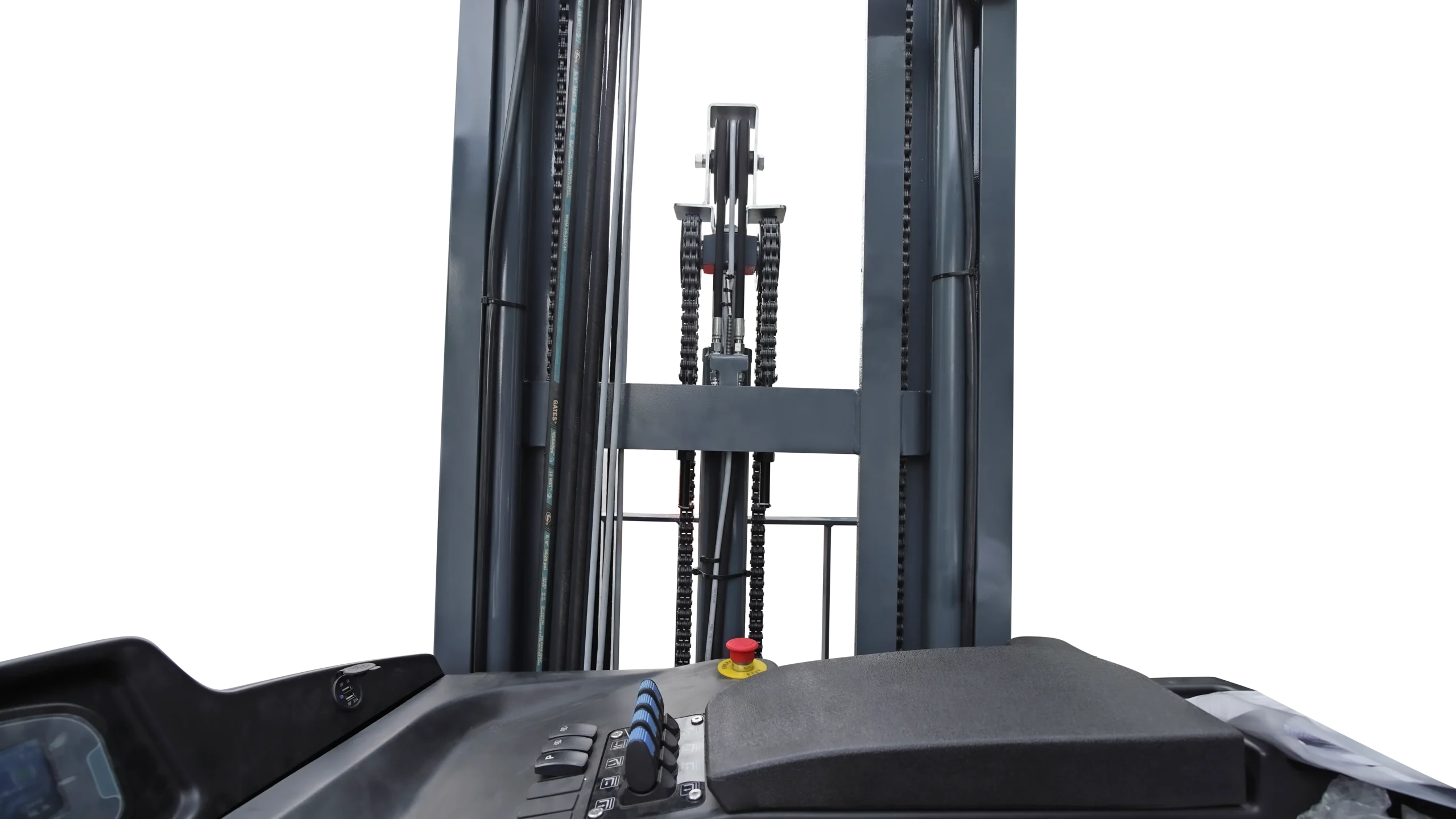

Better Visibility
Narrow mast design improves operator sightlines.

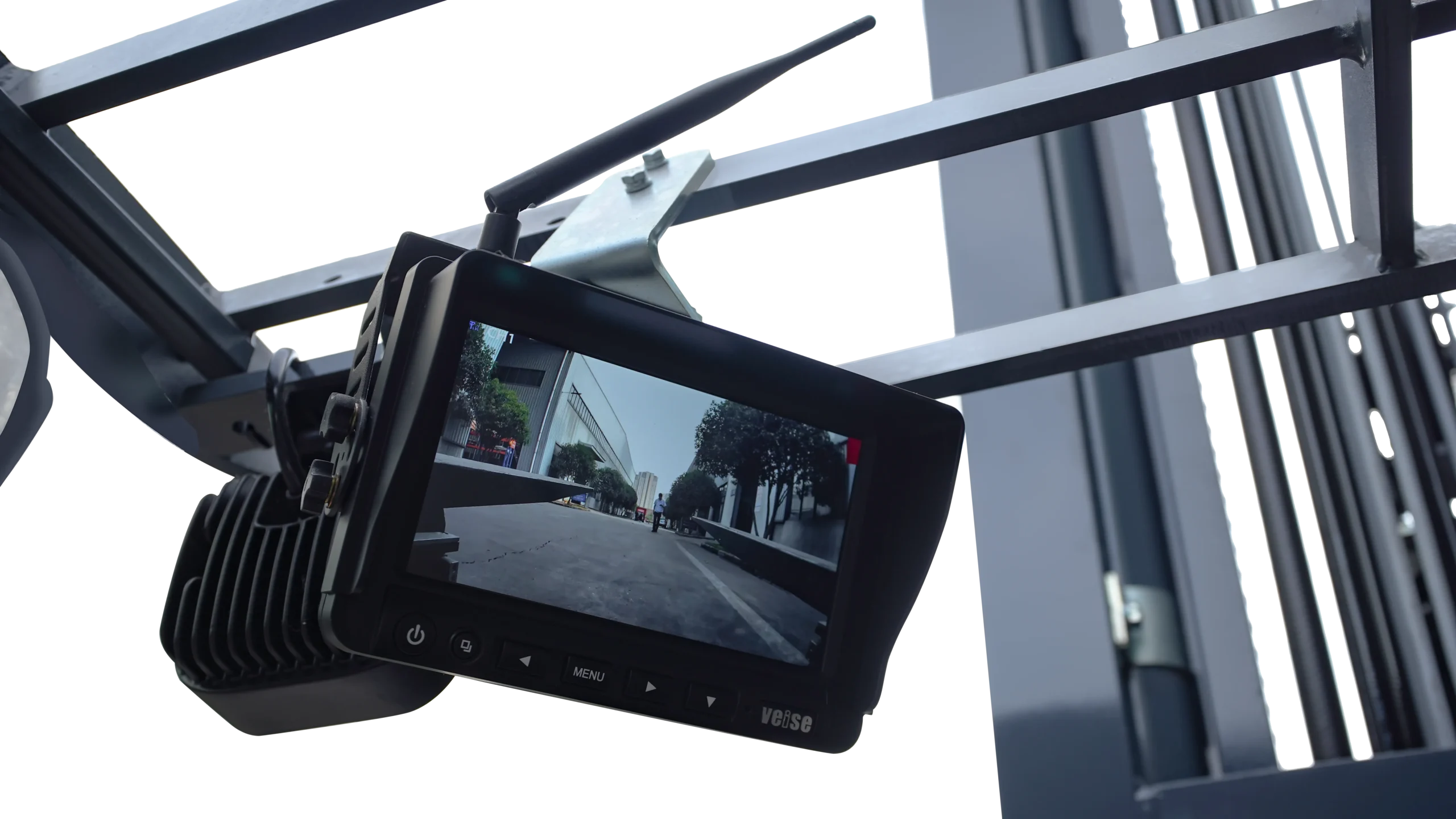

High-Definition Camera Option
Delivers clear vision for precise stacking and rack placement operations.

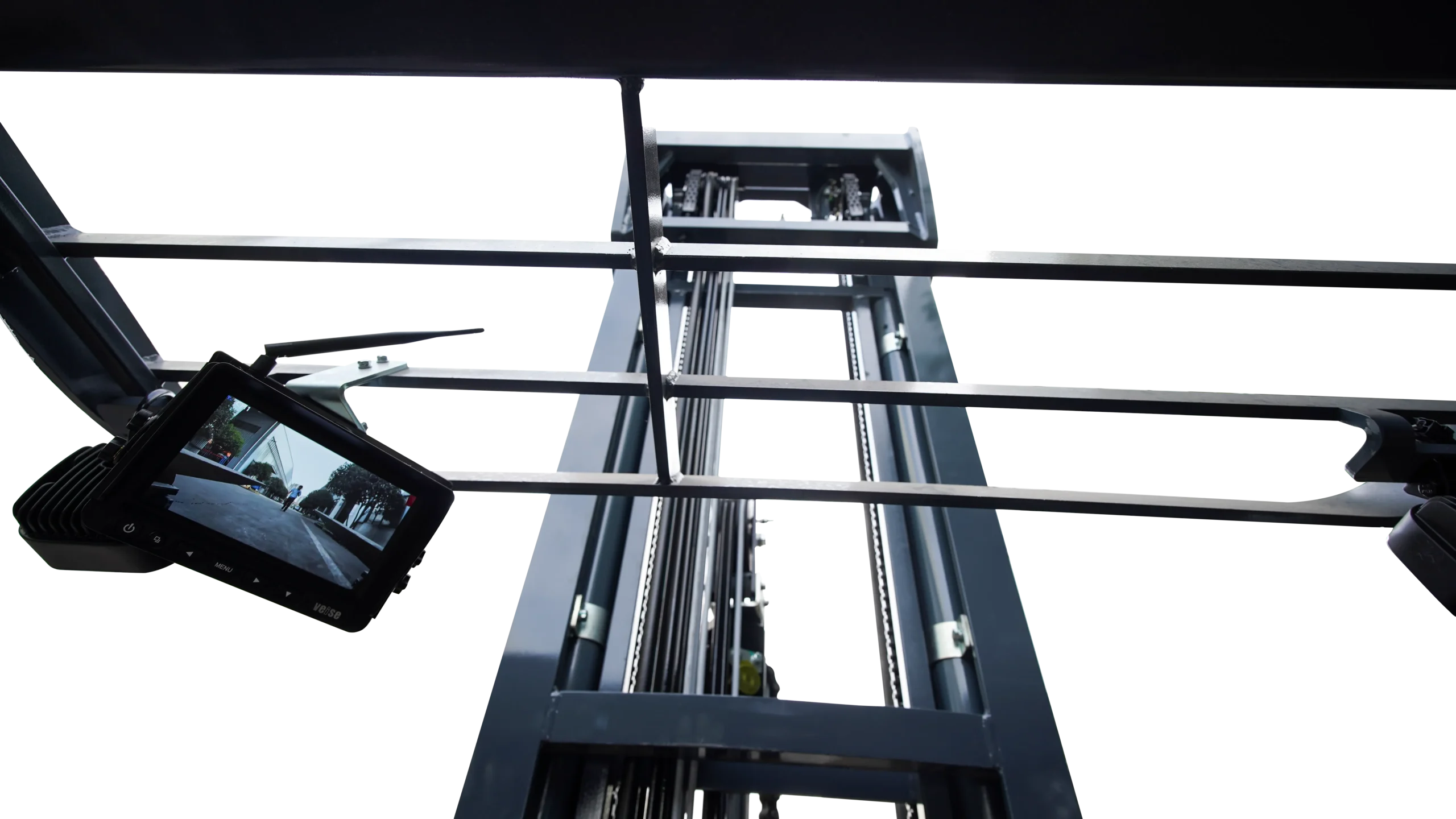

Height Preset Option
Improves efficiency in repeated rack operations.
Product Data
Technical Specifications
Compare the available MFZ16B / MFZ16S / MFZ16L / MFZ20B / MFZ20S / MFZ25S / MFZ30S configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MFZ16B | MFZ16S | MFZ16L | MFZ20B | MFZ20S | MFZ25S | MFZ30S |
|---|---|---|---|---|---|---|---|
| Model | MFZ16B | MFZ16S | MFZ16L | MFZ20B | MFZ20S | MFZ25S | MFZ30S |
| Operation Type | Seated | Seated | Seated | Seated | Seated | Seated | Seated |
| Load Capacity | 1600kg | 1600kg | 1600kg | 2000kg | 2000kg | 2500kg | 3000kg |
| Lift Height | 4000-8000 mm | 4600-9500 mm /4600-10500 mm (H series) | 4600-9500 mm | 4000-8000 mm | 4600-12500 mm | 3600-8500 mm | 3600-8500 mm |
| Mast Type | Triplex Full Free Mast | Triplex Full Free Mast | Triplex Full Free | Triplex Full Free Mast | Triplex Full Free Mast | Triplex Full Free Mast | Triplex Full Free Mast |
| Fork Outside Spread | 250-703 mm | 232-728 mm | 232-728 mm | 272-725 mm | 254-750 mm | 250-750 mm | 250-750 mm |
| Aisle Width | 2707-2753 mm | 2716-2767 mm | 2736-2792 mm | 2777-2818 mm | 2791-2835 mm | 2915-2953 mm | 2960-2979 mm |
| Battery Specification | Lead-acid: 48V / 420Ah; Lithium: 48V / 300Ah or 460Ah | Lead-acid: 48V / 420Ah，H series：Lead-acid: 48V / 420Ah；Lithium: 48V / 300Ah or 460Ah | Lithium: 80V / 175Ah | Lead-acid: 48V/560Ah；Lithium: 48V / 460Ah or 600Ah | Lead-acid: 48V / 560Ah or 700Ah；Lithium: 48V / 460Ah or 600Ah | Lead-acid: 48V / 700Ah；Lithium: 48V / 460Ah or 600Ah | Lead-acid: 48V / 700Ah；Lithium: 48V / 460Ah or 600Ah |
Product Overview
Product Details
Designed for High-Turnover Warehouse Operations
- The MFZ Series is suitable for customers who need seated reach truck comfort and higher productivity in warehouse pallet handling.
- It is designed for medium storage density, narrow aisle stacking and frequent pallet storage or retrieval.
- This makes it a strong product range for distribution centres, manufacturing warehouses and logistics operations.
High-Stability Mast for Elevated Pallet Handling
- The high-strength mast is designed for strong load capacity and stable high-level operation.
- Optional mast cushioning helps reduce sway and supports smoother handling at height.
- Customers benefit from improved confidence when working with taller racking systems.
Better Visibility for Safer Operation
- Narrow mast design helps improve forward visibility during stacking and retrieval.
- Offset free-lift cylinder design improves the central view, while the angled overhead guard beam helps operators observe goods at height.
- Streamlined body design helps reduce blind spots when handling pallets at lower levels.

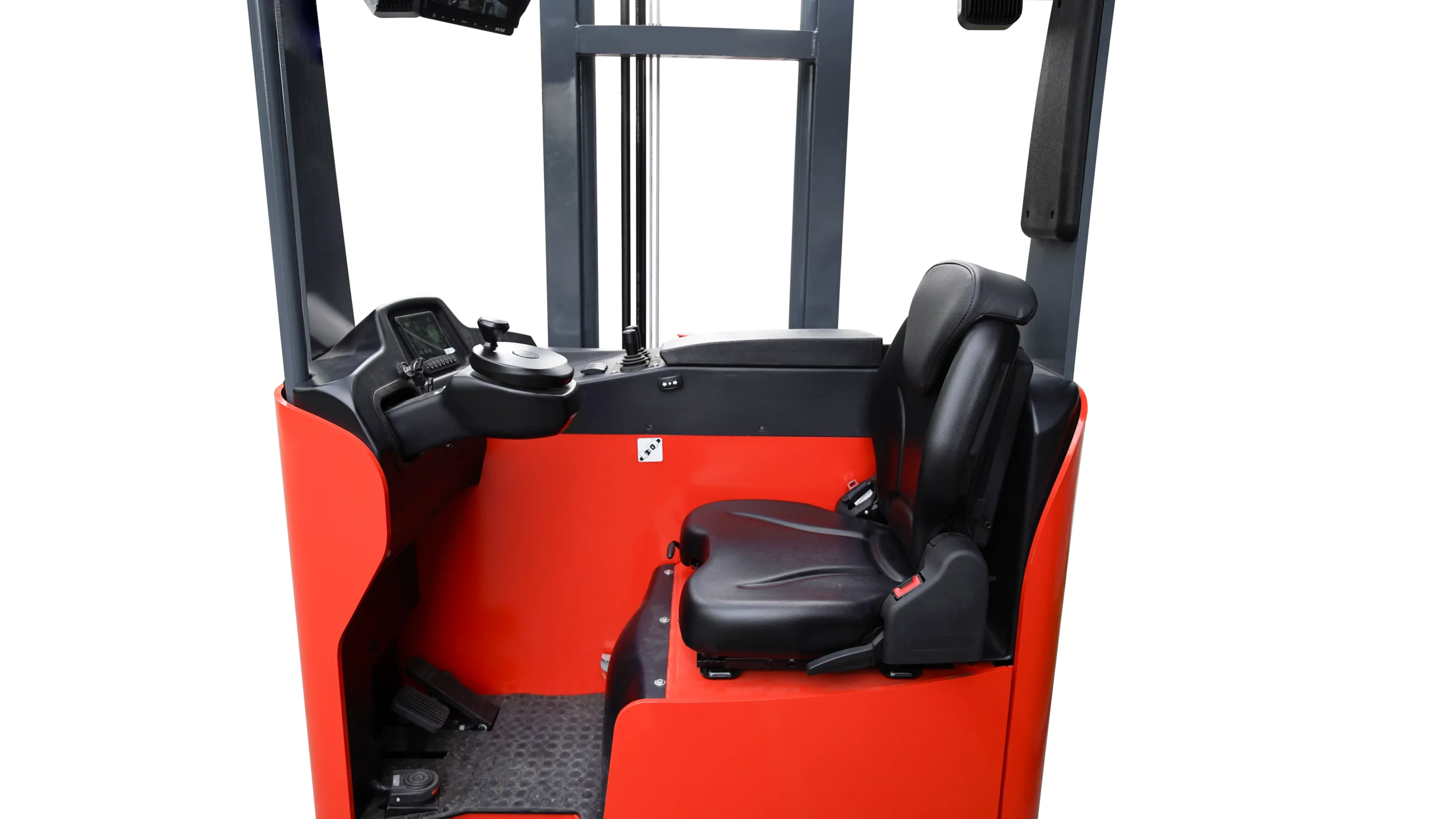

Comfortable Seated Operation
- Adjustable seat, spacious cabin, integrated handle and thumb switch improve comfort during long working shifts.
- Multifunctional dashboard with wheel display helps operators monitor truck status more easily.
- Quiet operation and ergonomic layout make the truck suitable for daily intensive warehouse use.
Safety and Configuration Options
- All-wheel braking improves braking control on demanding surfaces.
- OPS presence detection helps ensure the truck operates only when the operator is correctly positioned.
- Optional high-level fork camera, laser-assisted positioning and height preset system can improve safety and efficiency in high-rack applications.
Product Support
Frequently Asked Questions
Find answers to common questions about MFZ16B / MFZ16S / MFZ16L / MFZ20B / MFZ20S / MFZ25S / MFZ30S. For application-specific advice, contact MiMA Australia.
What is the MFZ Series reach truck used for?
The MFZ Series is used for pallet stacking, storage and retrieval in medium-density and high-turnover warehouse operations.
What load capacities are available?
The series covers 1600 kg, 2000 kg, 2500 kg and 3000 kg load capacity options.
What is the maximum lift height?
Depending on configuration, the MFZ Series can support lift heights up to 12500 mm.
What aisle width is required?
The required aisle width is approximately 2707–2979 mm depending on model, pallet size and warehouse layout.
What is the difference between B, H, S and L versions?
The B version is a multi-valve model, S version is electric proportional models, H versions use larger battery configurations, and the L is an 80V lithium-focused model.
What battery options are available?
Most models use 48V lead-acid batteries from 420Ah to 700Ah, with lithium options from 48V / 300Ah to 600Ah. The MFZ16L uses an 80V / 175Ah lithium battery.
Can height preselection be configured?
Yes. Height preselection is available as an option to improve efficiency in repeated rack operations.
