MiMA
High-Level Picking
Designed for picking and stock checks at height.
Electric Order Picker

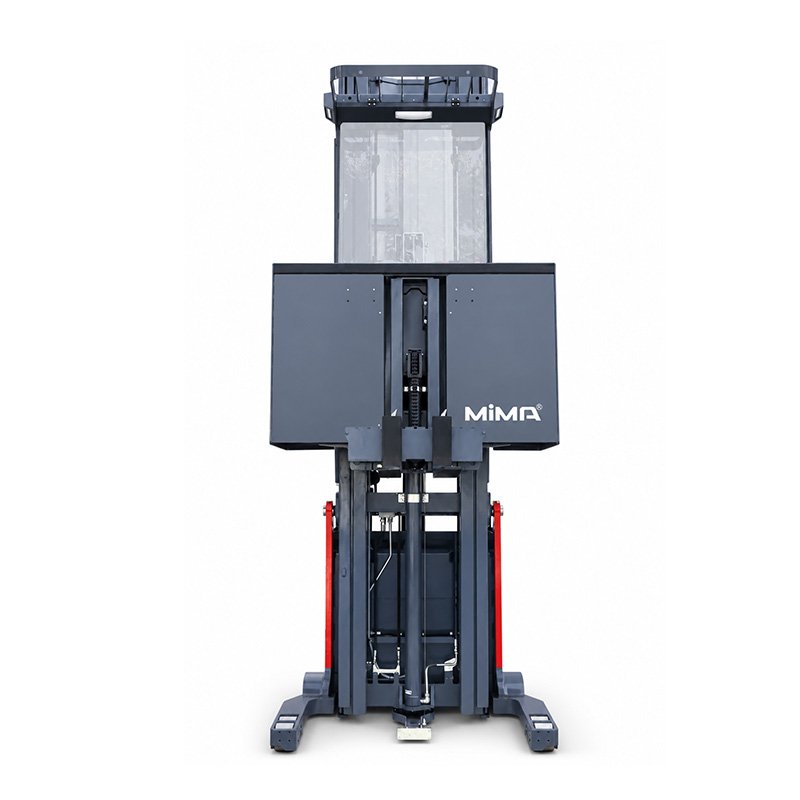

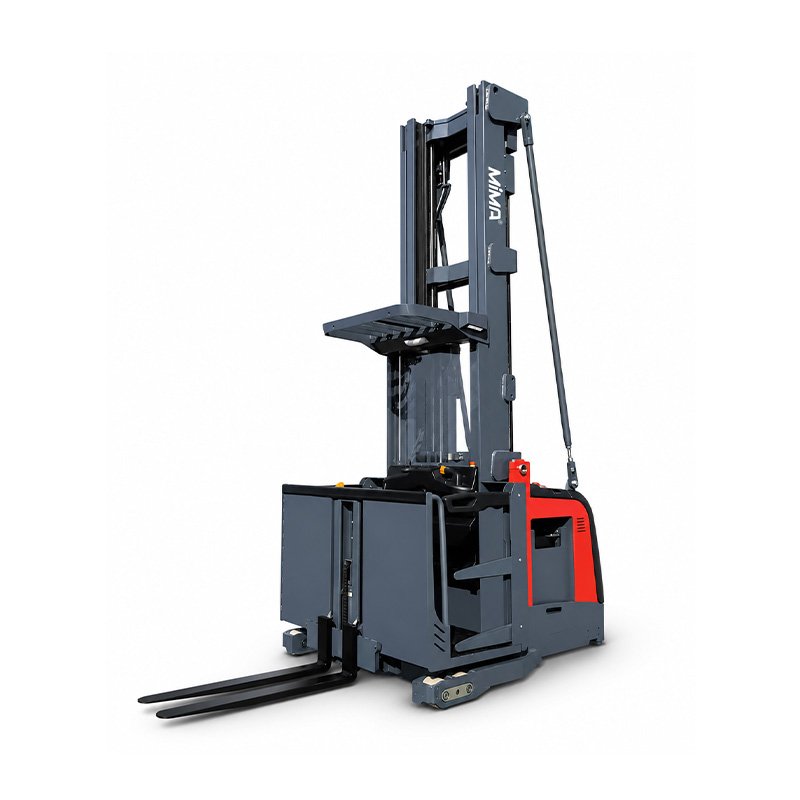

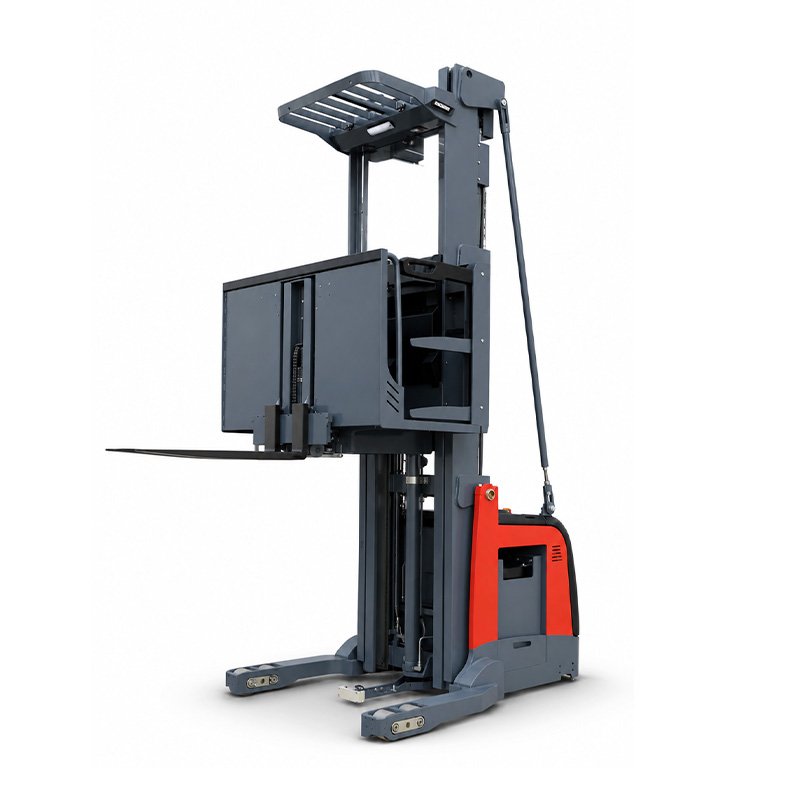

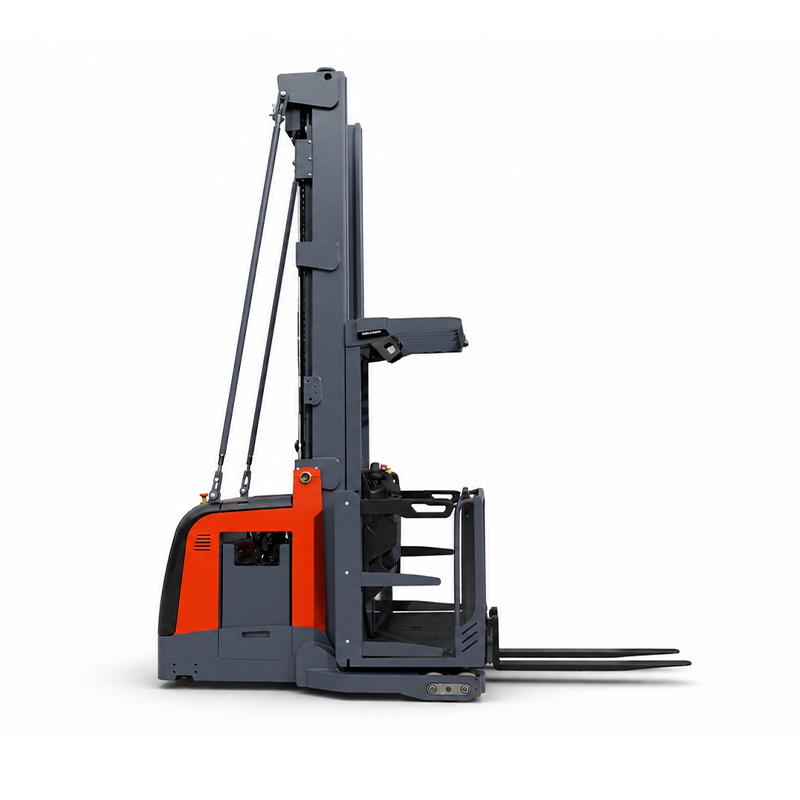

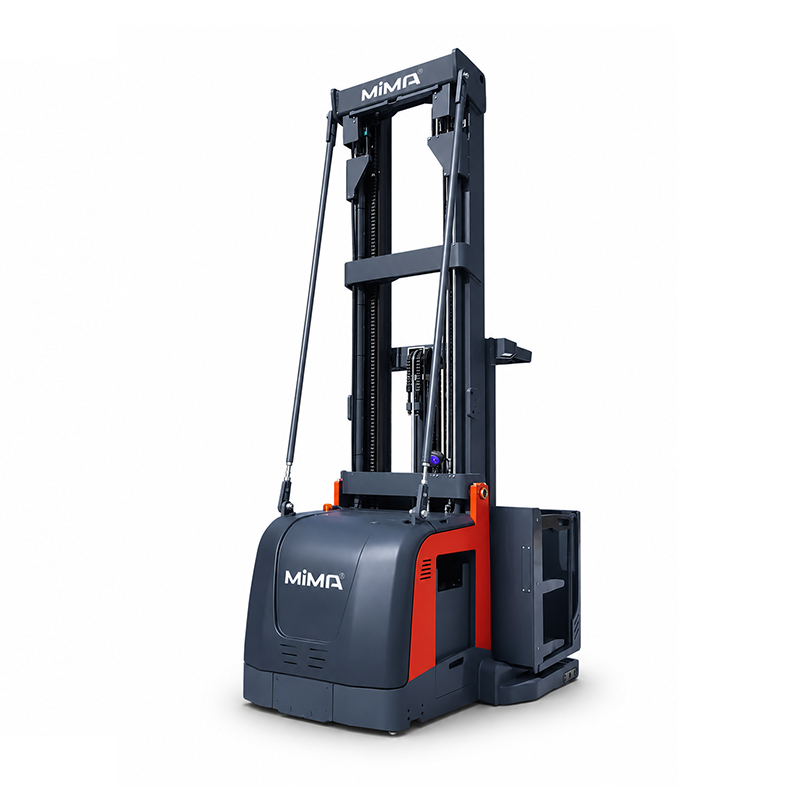

1.2 Ton High-Level Electric Order Picker
- Model: MH12
- Capacity: 1200 kg
- Lift Height: Up to 10500 mm
Description：
The MH12 high-level electric order picker is designed for medium to high-level picking, inventory checks and dense warehouse operations. With 1200 kg load capacity, up to 10500 mm lift height, auxiliary lift, semi-enclosed platform and strong mast structure, it provides a practical solution for warehouses handling large, heavy or high-position goods.
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
1.2 Ton Capacity
Suitable for larger and heavier picking loads.
MiMA
Semi-Enclosed Platform
Improves operator protection and working comfort.
MiMA
Auxiliary Lift Function
Reduces bending during frequent picking tasks.
MiMA
Strong Mast Structure
Supports safer high-position operation.
MiMA
Multiple Guidance Modes
Supports mechanical, electromagnetic and magnetic navigation.
Product Data
Technical Specifications
Compare the available MH12 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MH12 |
|---|---|
| Model | MH12 |
| Operation Type | Stand-on |
| Load Capacity | 1200 kg |
| Lift Height | 3,000–10,500 mm main lift; 730 mm auxiliary lift |
| Mast Type | Duplex Standard / Triplex Full-free |
| Fork Outside Spread | 340–700 mm |
| Aisle Width | 1,420–1,770 mm* |
| Battery Specification | 48V/400–600Ah lead-acid; 48V/300Ah or 460Ah lithium |
Product Overview
Product Details
Built for High-Level Picking and Inventory Checks
- The MH12 is suitable for warehouses that need operators to access medium and high rack levels for picking, inspection and inventory work.
- The operator platform rises with the mast, allowing goods to be accessed directly at height.
- This improves picking efficiency compared with ladder-based access or low-level equipment.
Suitable for Large and Heavy Goods Picking
- With 1200 kg load capacity, the MH12 is suitable for larger cartons, heavy goods and pallet-based picking applications.
- The semi-enclosed platform gives operators better protection and confidence during elevated work.
- This makes the model suitable for warehouses where picking safety, load support and high-level access are all important.
Stable Structure for Elevated Operation
- The mast structure is designed to support high-position operation with reduced mast sway.
- Imported hydraulic components and a powerful lifting system help support stable and efficient lifting performance.
- This improves control when operators are picking, checking or positioning goods at height.
Safety Design for Work at Height
- Electronic safety guard arms, chain slack protection, warning lights and emergency lowering functions help improve elevated operation safety.
- Multiple emergency escape methods support operator safety if the truck stops abnormally at height.
- These safety features are important for narrow aisle warehouses and high-rack picking environments.
Guidance Options for Narrow Aisle Warehouses
- Mechanical guidance, electromagnetic navigation and magnetic navigation are available for different aisle layouts.
- These guidance options help the truck travel more accurately and safely in narrow aisle picking operations.
- Customers can choose the suitable guidance method according to racking layout, aisle design and operating requirements.
Configurable for Different Warehouse Projects
- Options such as aisle-end slowing, aisle-end stopping, area height limitation, area speed limitation, AI anti-collision and laser obstacle detection can be selected according to site needs.
- Front control panel, rear control panel or dual control panel configurations can support different picking processes.
- This helps match the MH12 to different rack layouts, safety requirements and operating habits.
Product Support
Frequently Asked Questions
Find answers to common questions about MH12. For application-specific advice, contact MiMA Australia.
What is the MH12 electric order picker used for?
The MH12 is used for high-level order picking, inventory checks and goods handling in medium to high-rack warehouse environments.
What is the load capacity of the MH12?
The MH12 has a rated load capacity of 1200 kg.
What is the maximum lift height?
The MH12 can support lift heights up to 10500 mm.
What type of goods is the MH12 suitable for?
It is suitable for larger cartons, heavy items, pallet-based picking and warehouse stock-checking tasks at height.
What is the difference between MH12 and a low-level order picker?
The MH12 is designed for high-level picking, while low-level order pickers are mainly used for goods stored closer to floor level.
What battery options are available?
The MH12 can be configured with a 48V / 400Ah lead-acid battery or a 48V / 300Ah lithium battery.
What safety features are included?
Safety features may include electronic safety guard arms, chain slack protection, warning lights, blue light, emergency lowering and optional obstacle detection systems.
Can the MH12 be configured for different warehouse layouts?
Yes. The MH12 can be configured according to rack height, aisle layout, pallet size, picking method and safety requirements.
