MiMA
Open-Cab Design
Improves access during elevated picking work.
Electric Order Picker

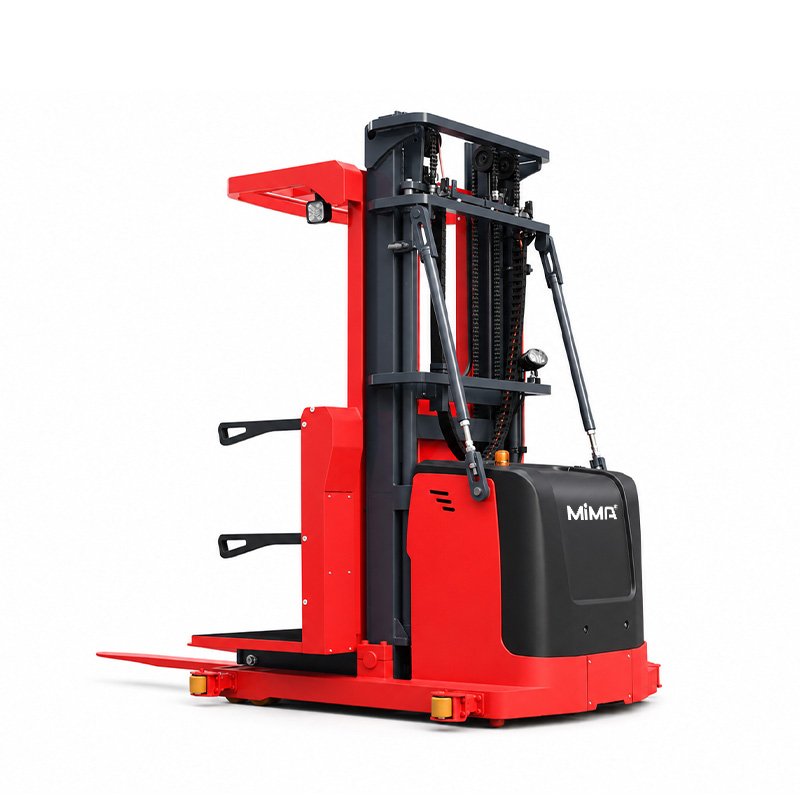

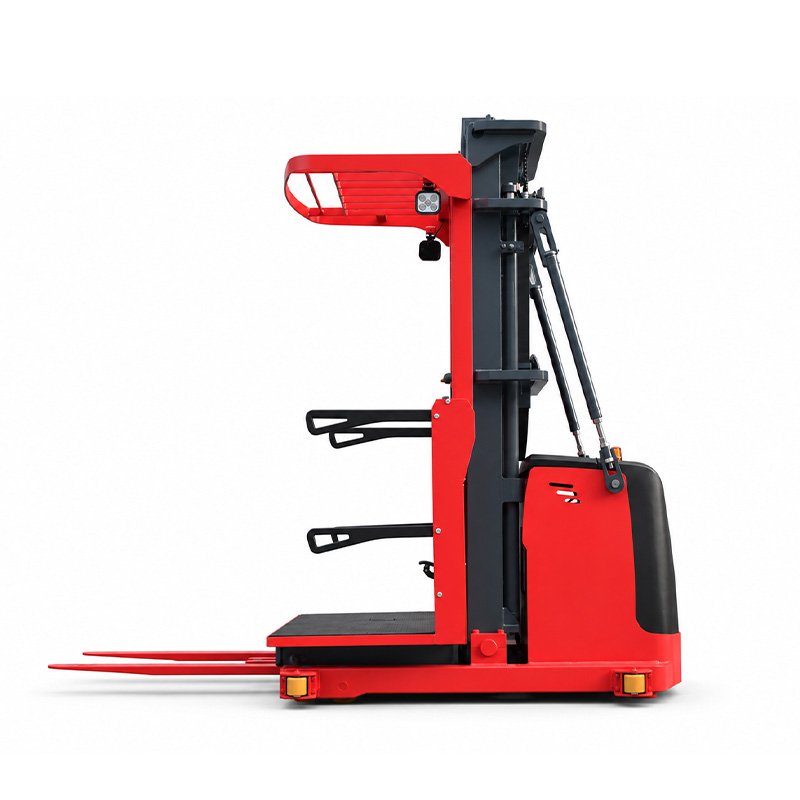

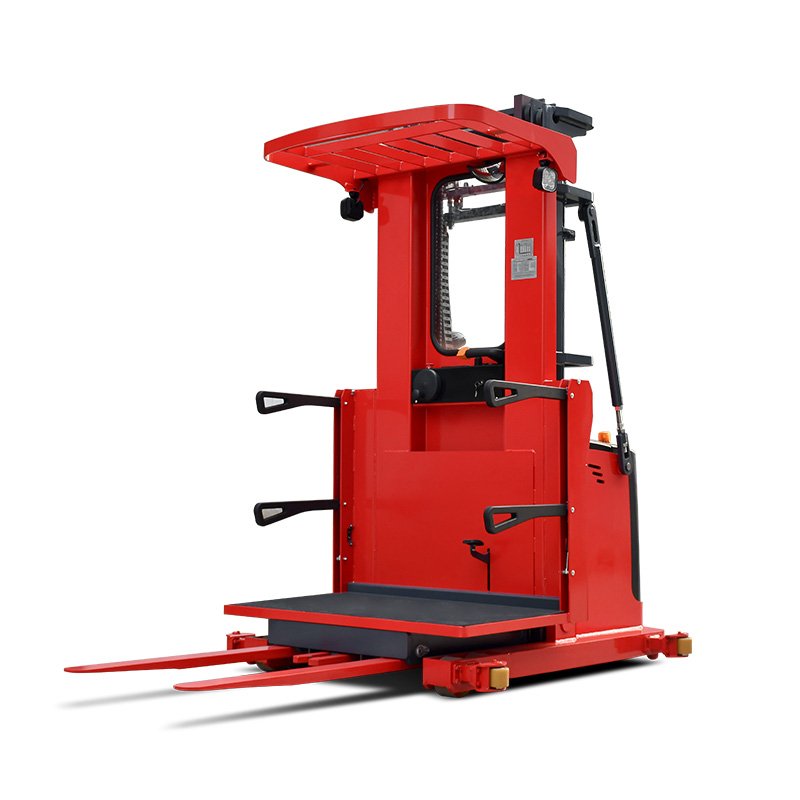

1.0 Ton Open-Cab Electric Order Picker
- Model: MHA10U
- Capacity: 1000 kg
- Lift Height: Up to 6000 mm
Description:
The MHA10U electric order picker is the open-cab version of the MHA10, designed for light material picking where operators need easier access to goods during elevated work. With 1000 kg load capacity, up to 6000 mm lift height, auxiliary lift, compact body and multiple guidance options, it provides a flexible solution for medium-level warehouse picking and stock-checkin
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
1.0 Ton Capacity
Suitable for light warehouse goods.
MiMA
Up to 6 m Lift
Supports medium-level rack picking.
MiMA
Auxiliary Lift
Improves picking posture and efficiency.
MiMA
Compact Structure
Fits narrow warehouse operating areas.
MiMA
Multiple Guidance Modes
Supports mechanical, electromagnetic and magnetic navigation.
Product Data
Technical Specifications
Compare the available MHA10U configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MHA10U |
|---|---|
| Model | MHA10U |
| Operation Type | Seated |
| Load Capacity | 1000 kg |
| Lift Height | Up to 6000 mm |
| Mast Type | ["triple mast"] |
| Fork Outside Spread | / |
| Aisle Width | / |
| Battery Specification | Lead-acid: 24V / 400Ah; Lithium: 24V / 300Ah |
Product Overview
Product Details
Open-Cab Layout for Easier Goods Access
- The MHA10U uses an open-cab platform layout for customers who need more direct access during picking.
- It is suitable for light goods, cartons, small parts and medium-level rack picking.
- This makes it a practical option where operators frequently handle goods from different rack levels.
Efficient Alternative to Manual Picking Methods
- The operator platform rises to the required picking height, reducing the need for ladders or manual access equipment.
- This improves picking efficiency and helps reduce physical strain during repeated warehouse tasks.
- Customers benefit from faster and safer access to goods stored above floor level.
Auxiliary Lift for Comfortable Picking
- The auxiliary lift function helps bring goods to a more ergonomic working height.
- Operators can reduce repeated bending or awkward reaching during picking.
- This improves comfort and productivity in daily warehouse operations.
Smooth Operation in Warehouse Aisles
- Proportional lifting, imported control components and steering wheel position display help operators work smoothly.
- The compact body is suitable for warehouse layouts where turning space is limited.
- This helps customers improve access to goods without requiring large operating areas.
Safety Controls for Elevated Operation
- Guardrail position detection, foot pedal sensing, high-lift speed control and turning speed control help improve operator safety.
- The truck supports high-level operation only when the operator is correctly positioned and the platform is protected.
- This makes the MHA10U suitable for controlled order picking in warehouse environments.
Guidance Options for Narrow Aisle Picking
- Mechanical guidance, electromagnetic navigation and magnetic navigation are available.
- These guidance systems help the truck travel more accurately in narrow aisle picking applications.
- Customers can select the guidance method based on rack layout, aisle width and operating requirements.
Product Support
Frequently Asked Questions
Find answers to common questions about MHA10U. For application-specific advice, contact MiMA Australia.
What is the MHA10U used for?
The MHA10U is used for light material picking, stock checking and medium-level warehouse access.
How is the MHA10U different from the MHA10?
The MHA10U uses an open-cab platform layout, while the MHA10 uses a semi-open platform design.
What is the load capacity?
The MHA10U has a rated load capacity of 1000 kg.
What is the maximum lift height?
The MHA10U can support lift heights up to 6000 mm.
Is the MHA10U suitable for narrow aisle warehouses?
Yes. The MHA10U supports mechanical guidance, electromagnetic navigation and magnetic navigation for different narrow aisle layouts.
What guidance or navigation options are available?
Mechanical guidance, electromagnetic navigation and magnetic navigation are available. The suitable option depends on aisle layout, racking design and warehouse operating requirements.
What safety systems are included?
Safety systems may include guardrail position detection, foot pedal sensing, lifting limit, high-lift speed control and turning speed control.
