MiMA
Open Platform Design
Allows direct access to large picking loads.
Electric Order Picker

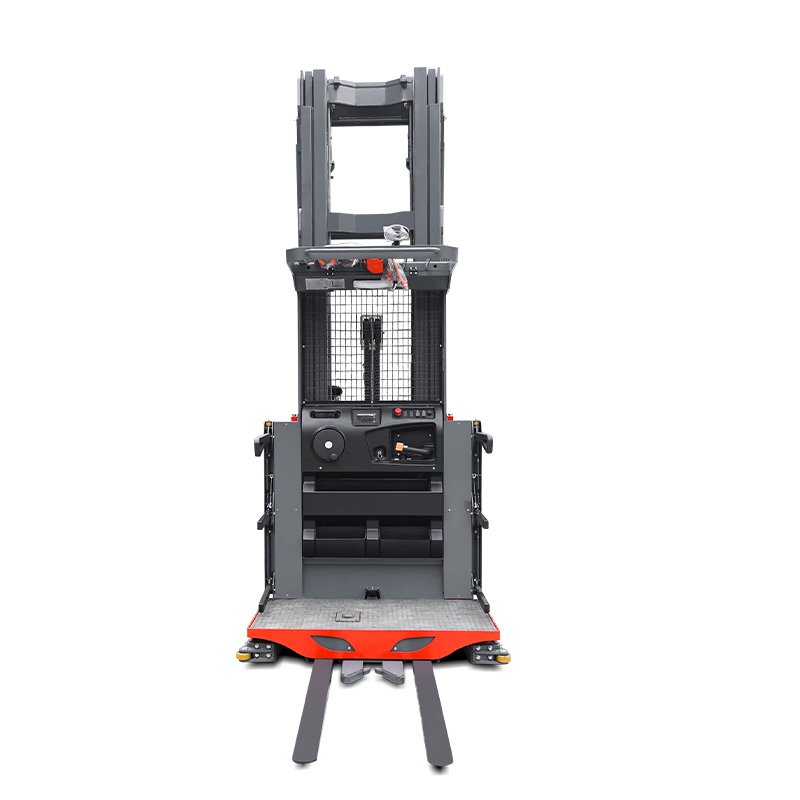

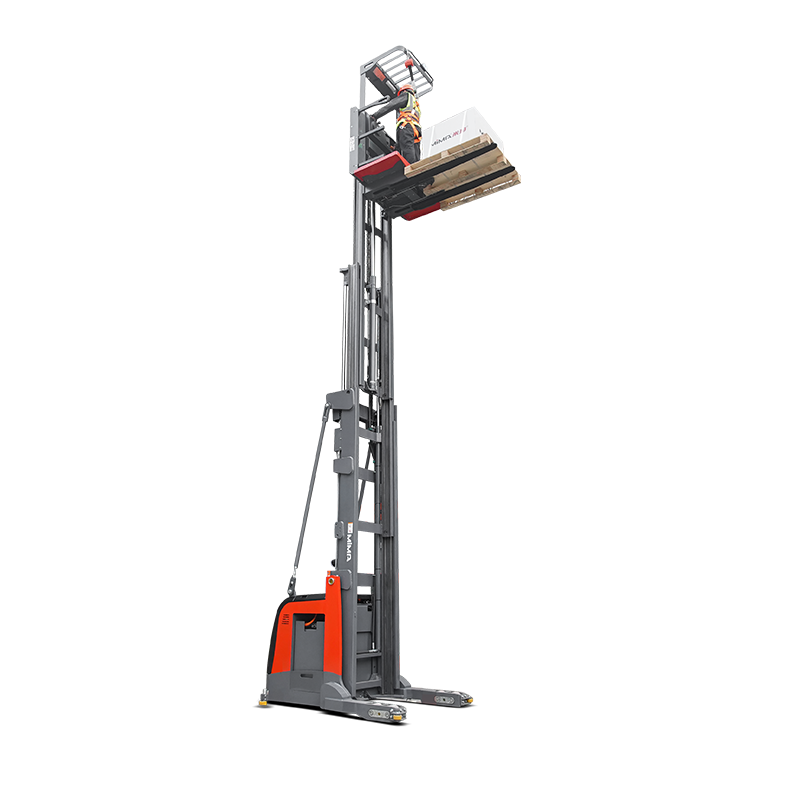

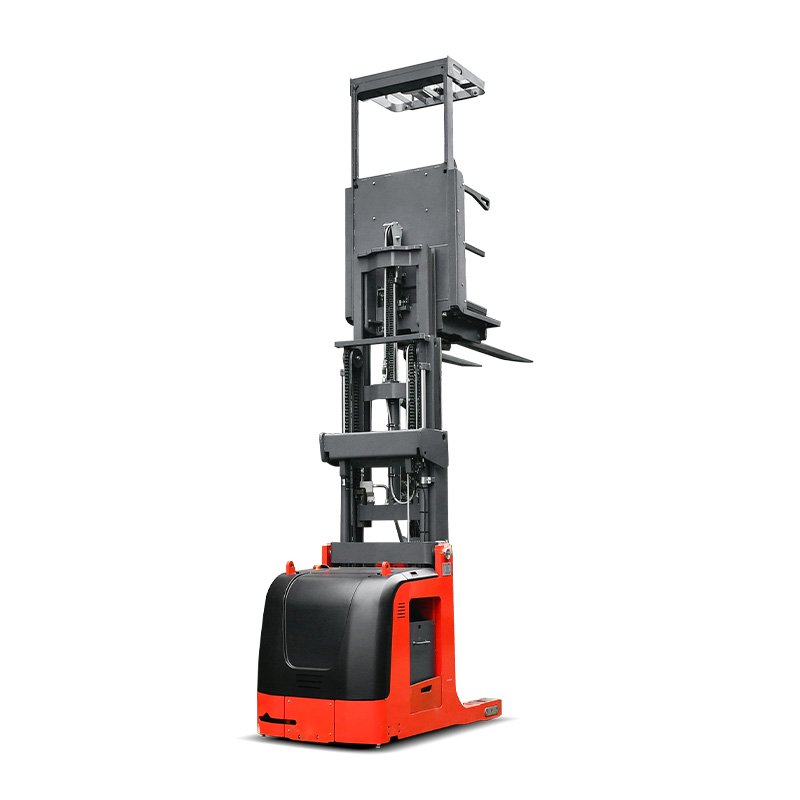

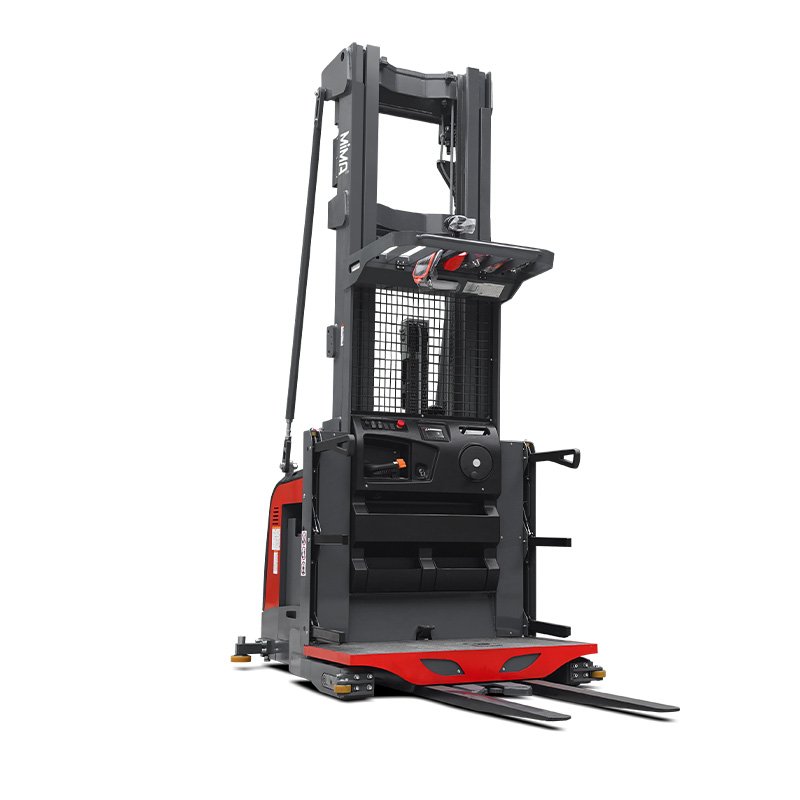

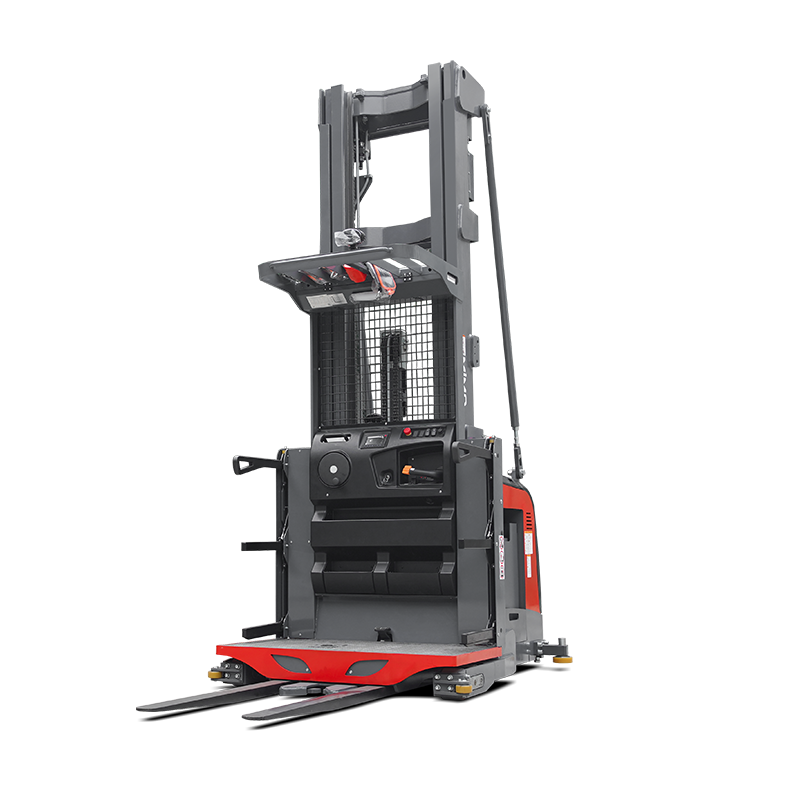

1.3 Ton Open-Platform High-Level Electric Order Picker
The MiMA MH13U is a 1.36-tonne open-cab electric high-level order picker for bulky goods, case picking and stock checks at height. Its elevating open platform provides close access to the load carrier, while lift configurations reach 10,500 mm. A 48V full AC system and reinforced mast support responsive, stable narrow-aisle operation.
Ideal For
- Bulky or heavier goods stored at elevated levels
- High-level case picking and warehouse inventory
- Applications requiring an open platform and closer pallet access
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
1.36 Ton Capacity
Supports heavier high-level picking applications.
MiMA
High-Level Picking
Designed for rack picking and inventory checks.
MiMA
Pallet Clamp
Improves pallet stability during operation.
MiMA
Multiple Guidance Modes
Supports mechanical, electromagnetic and magnetic navigation.
MiMA
Fast Travel Performance
Designed for efficient warehouse picking tasks.
Product Data
Technical Specifications
Compare the available MH13 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MH13 |
|---|---|
| Model | MH13 |
| Operation Type | Stand-on |
| Load Capacity | 1,360 kg |
| Lift Height | 3,000–10,500 mm |
| Mast Type | Duplex Standard / Triplex Full-free |
| Fork Outside Spread | 635 mm |
| Aisle Width | 1,420–1,770 mm* |
| Battery Specification | 48V/400–600Ah lead-acid; 48V/300Ah or 460Ah lithium |
Product Overview
Product Details
Designed for Large and Heavy Item Picking
- The MH13U is suitable for customers who need to pick larger, heavier or bulky goods from medium and high rack levels.
- The open platform allows the operator to access the pallet area more directly during picking tasks.
- This makes the model useful for applications where standard enclosed-platform order pickers may limit access to oversized goods.
Open Platform for Direct Goods Access
- The operator rises with the platform, improving visibility and access during picking and stock checks.
- The open cab layout allows operators to step closer to the load area when handling large-size items.
- This improves practical access when goods are too large or heavy for conventional manual picking methods.
Stable Performance at Height
- The mast structure is designed to support high-level operation with strong load capacity and reduced mast sway.
- The model is suitable for high-density storage areas where picking height and platform stability are key selection factors.
- This helps improve operator confidence during elevated picking work.
Efficient Control for Repeated Picking
- Integrated thumb controls help operators manage travel and lowering functions more conveniently.
- Travel and lowering can be operated smoothly during repetitive picking tasks.
- This supports better efficiency in warehouses with frequent high-level order picking and stock-checking work.
Safety Systems for Elevated Work
- Electronic guard arms, pallet clamp, safety rope, chain slack protection and emergency escape options support safer operation.
- Aisle-end slowing and other safety options help reduce risk in narrow aisle environments.
- These features support safer operation when operators work at height with large or heavy goods.
Guidance Options for Narrow Aisle Picking
- Mechanical guidance, electromagnetic navigation and magnetic navigation are available for different warehouse layouts.
- These guidance systems help the truck travel more accurately in narrow aisle picking operations.
- The suitable guidance method can be selected according to aisle width, racking layout and site requirements.
Product Support
Frequently Asked Questions
Find answers to common questions about MH13. For application-specific advice, contact MiMA Australia.
What is the MH13U electric order picker used for?
The MH13 is used for high-level order picking, stock checking and handling large or heavy goods in narrow aisle warehouses.
What is the load capacity of the MH13?
The MH13U has a rated load capacity of 1360 kg.
What is the maximum lift height?
The MH13U can support lift heights up to 9500 mm.
What is the benefit of the open platform?
The open platform gives operators easier access to the pallet area, making it more suitable for large, heavy or bulky goods.
Is the MH13 suitable for narrow aisle warehouses?
Yes. The MH13 can support narrow aisle operation with mechanical guidance, electromagnetic navigation or magnetic navigation.
What guidance or navigation options are available?
Mechanical guidance, electromagnetic navigation and magnetic navigation are available. The suitable option depends on aisle layout, racking design and warehouse operating requirements.
What safety features are available?
Safety features may include electronic guard arms, pallet clamp, safety rope, chain slack protection, emergency lowering and aisle safety options.
Can the MH13 be configured for different pallet sizes?
Yes. The truck can be configured according to pallet size, aisle dimensions, rack height, picking height and picking process.
