More Capacity for Daily Work
Handles loads up to 3,000 kg across varied material-handling operations.
Electric Counterbalance Forklift

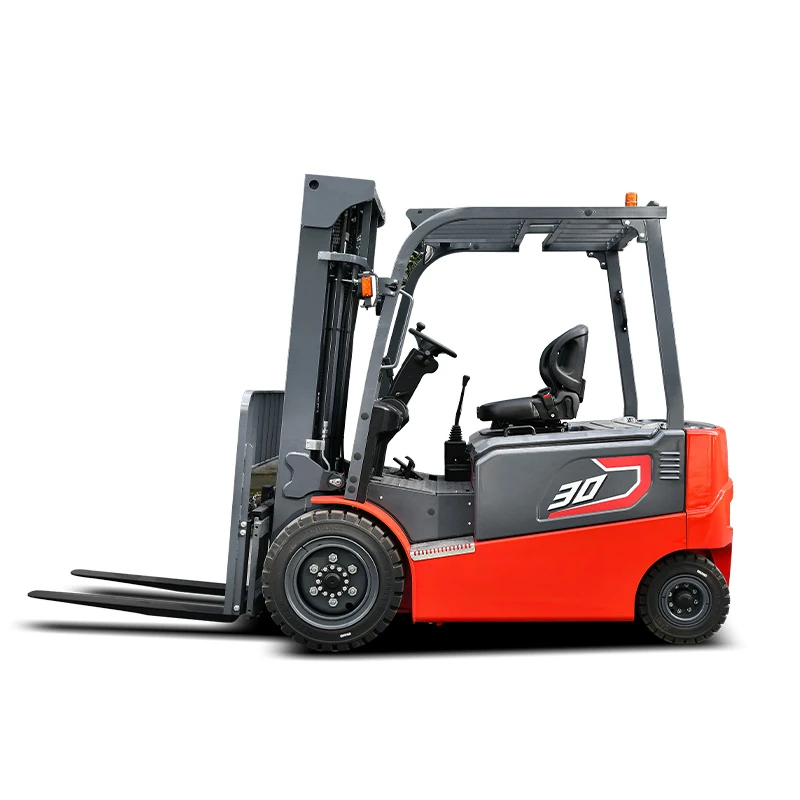

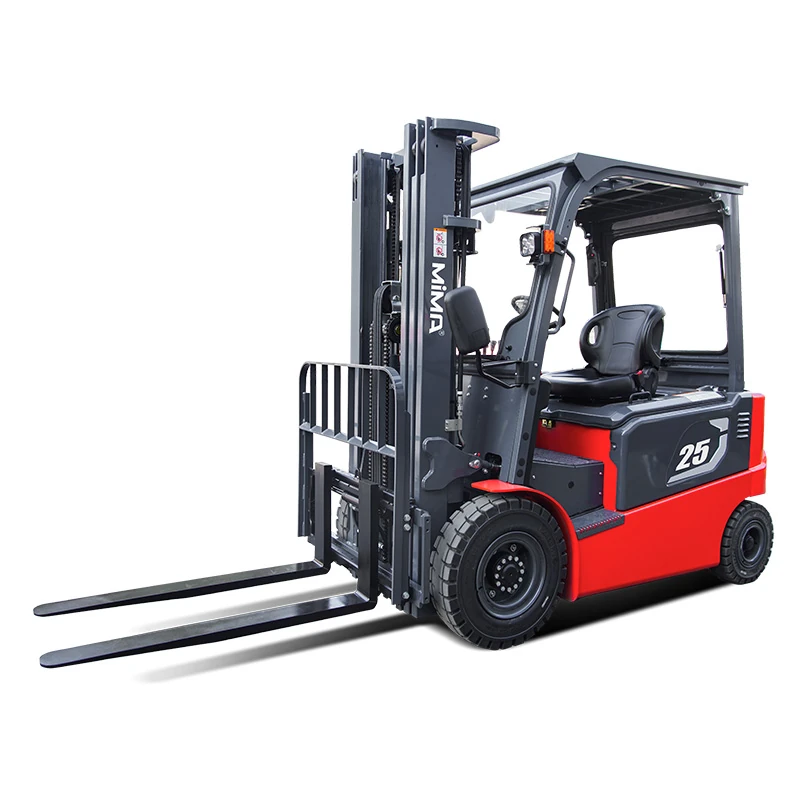

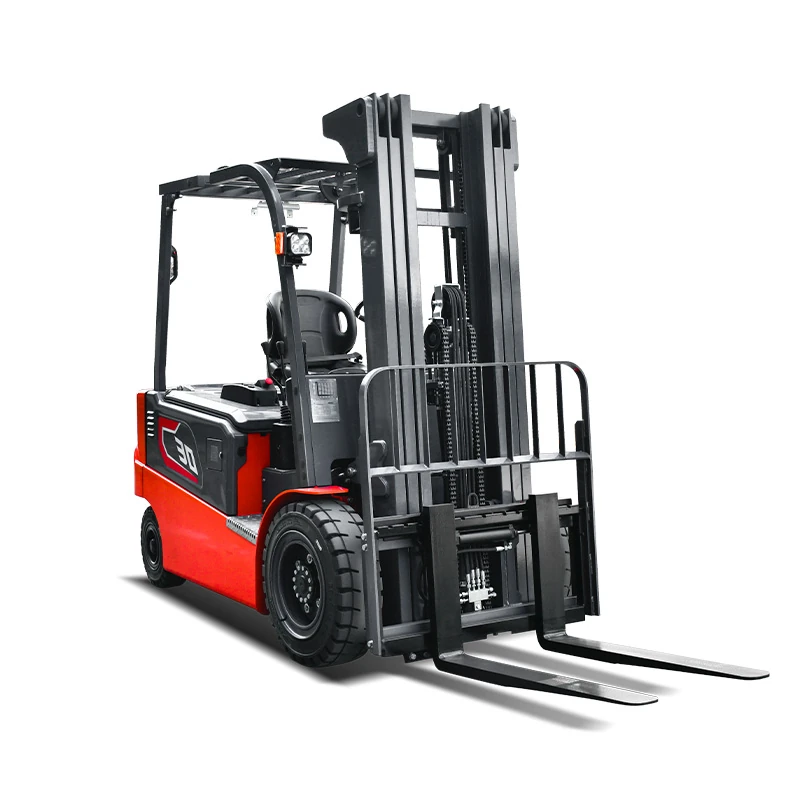

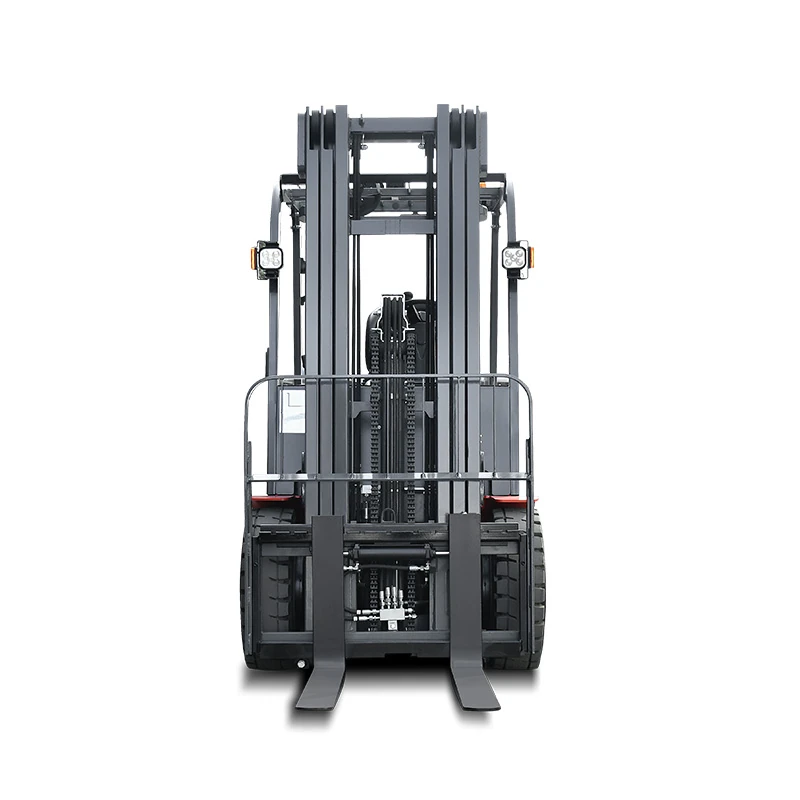

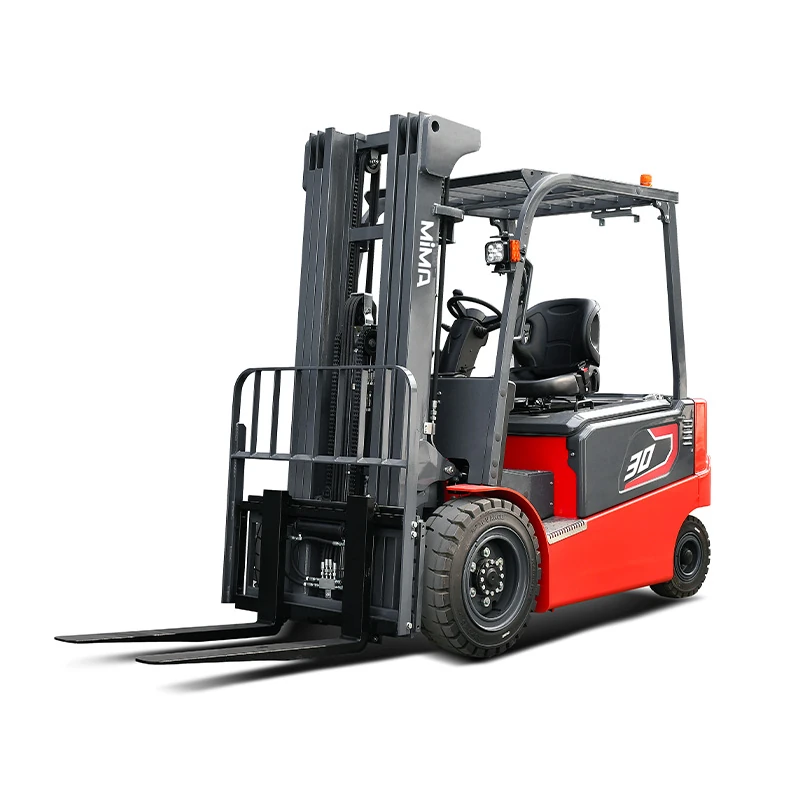

2.5–3.0T Four-wheel Electric Counterbalance Forklift MK25/30
MK25/30 four-wheel electric counterbalance forklifts provide 2,500 or 3,000 kg capacity for more demanding material handling. A robust chassis, low-mounted battery, full AC drive and wide-view mast support stable daily operation, while multiple mast, tyre, battery and attachment configurations allow each truck to be matched to warehouse, production and loading-yard requirements.
Ideal For
- Medium- and heavy-duty pallet handling
- Manufacturing, distribution and loading-yard operations
- Applications requiring specialised forks, clamps or other attachments
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
Stable Load Handling
A low centre of gravity supports controlled travel, turning and stacking.
Application-ready Configuration
Battery, mast, tyre, cabin and hydraulic options support customised builds.
Product Data
Technical Specifications
Compare the available MK25 / MK30 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MK25 | MK30 |
|---|---|---|
| Model | MK25 | MK30 |
| Operation Type | Seated | Seated |
| Load Capacity | 2500kg | 3000kg |
| Lift Height | 2,000–7,000 mm | 2,000–7,000 mm |
| Mast Type | Duplex / Duplex Full Free / Triplex Full Free | Duplex / Duplex Full Free / Triplex Full Free |
| Fork Outside Spread | 244–1,000 mm | 250–1,050 mm |
| Aisle Width | 3,754 mm | 3,884 mm |
| Battery Specification | 48V/500–600Ah lead-acid; lithium options available | 80V/400–500Ah lead-acid; lithium options available |
Product Overview
Product Details
Medium-duty Electric Counterbalance Range
The MK25/30 range covers 2,500 and 3,000 kg pallet handling. It is suitable for materials that exceed the capacity of compact warehouse forklifts but still require clean electric operation.
Robust Four-wheel Platform
The four-wheel chassis provides a stable base for transport, loading and stacking. A low-mounted battery reduces the centre of gravity and supports controlled cornering with heavier loads.
Full AC Performance
AC drive and lift systems provide responsive operation under repetitive duty cycles. Integrated protection, speed and temperature monitoring support power-system reliability and service life.
Load Control and Operator Protection
The wide-view mast helps reduce visual obstruction. Lift limiting, controlled lowering, hydraulic cushioning and the OPS operator-presence system support safer daily handling.
Configurable for Loads and Environments
Available options include different mast heights, pneumatic or solid tyres, cabins, side-access batteries and additional hydraulic circuits. Side shift, fork positioners and load-specific clamps can also be supplied.
Product Support
Frequently Asked Questions
Find answers to common questions about MK25 / MK30. For application-specific advice, contact MiMA Australia.
Q1: Should I select the MK25 or MK30?
Select the MK25 for loads up to 2,500 kg. The MK30 provides 3,000 kg capacity and an 80V power system for heavier or more intensive applications.
Q2: Can the truck be fitted with a clamp or fork positioner?
Yes. Multiple hydraulic circuits and attachments are available. Attachment weight, effective load centre and residual capacity must be calculated before confirming the configuration.
Q3: Is the published aisle width the required warehouse aisle?
It is a reference value under defined pallet conditions. The final aisle should include the actual load, attachment dimensions, rack clearance and enough additional space for efficient operation.
Q4: Can it work inside a container?
Selected configurations can be supplied with a low overhead guard and suitable mast. Container door height, mast closed height, overall truck height and floor loading must be checked.
Q5: What information is required for a quotation?
Provide the maximum load, load dimensions, load centre, lift height, aisle width, floor and ramp conditions, shift hours, battery preference and any required attachments.
