Capacity up to Five Tonnes
Handles heavy pallets, components and industrial materials with electric power.
Electric Counterbalance Forklift

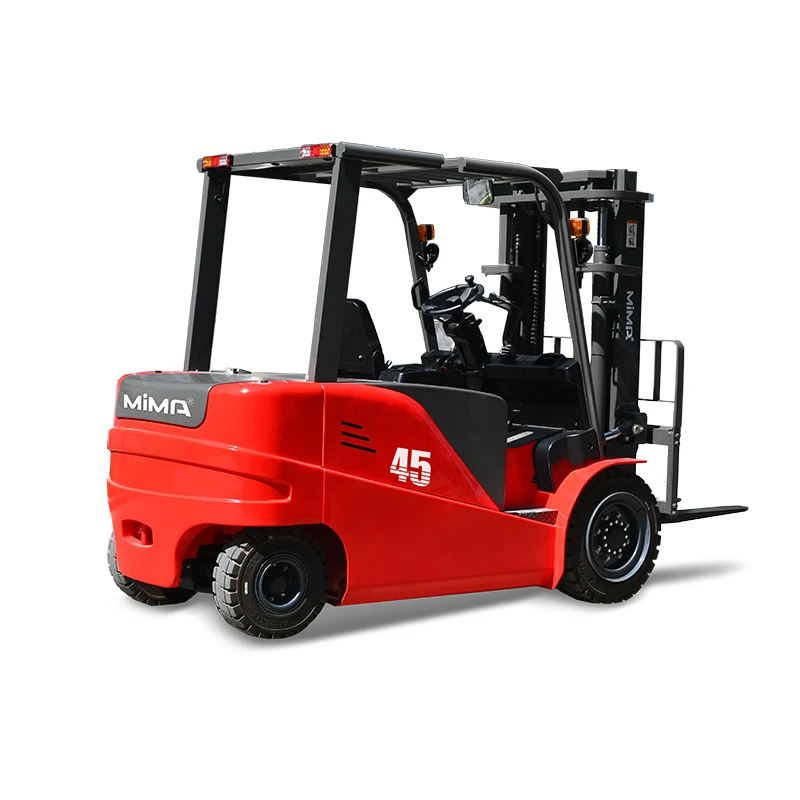

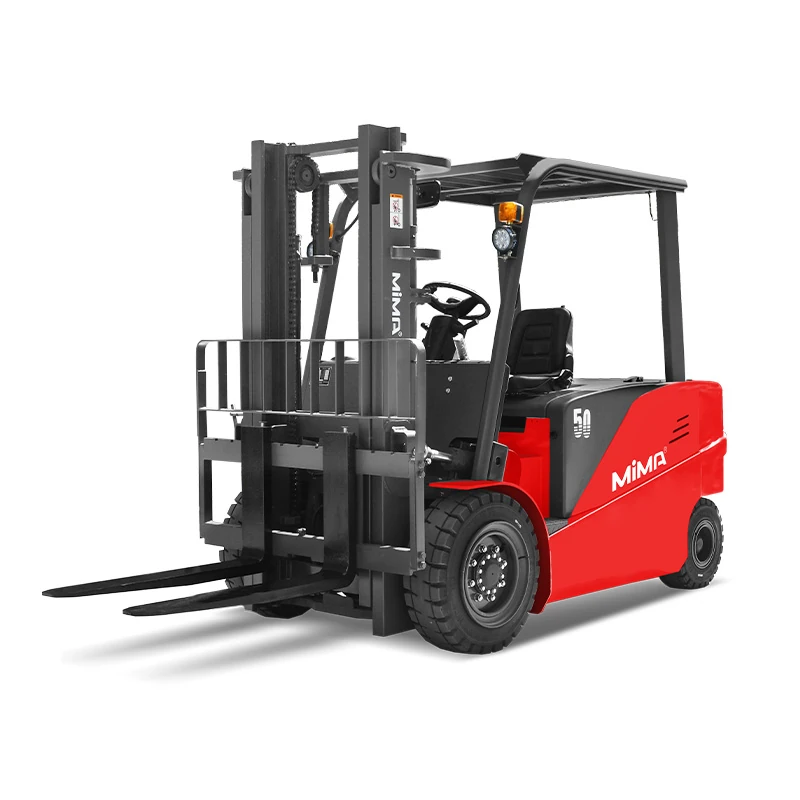

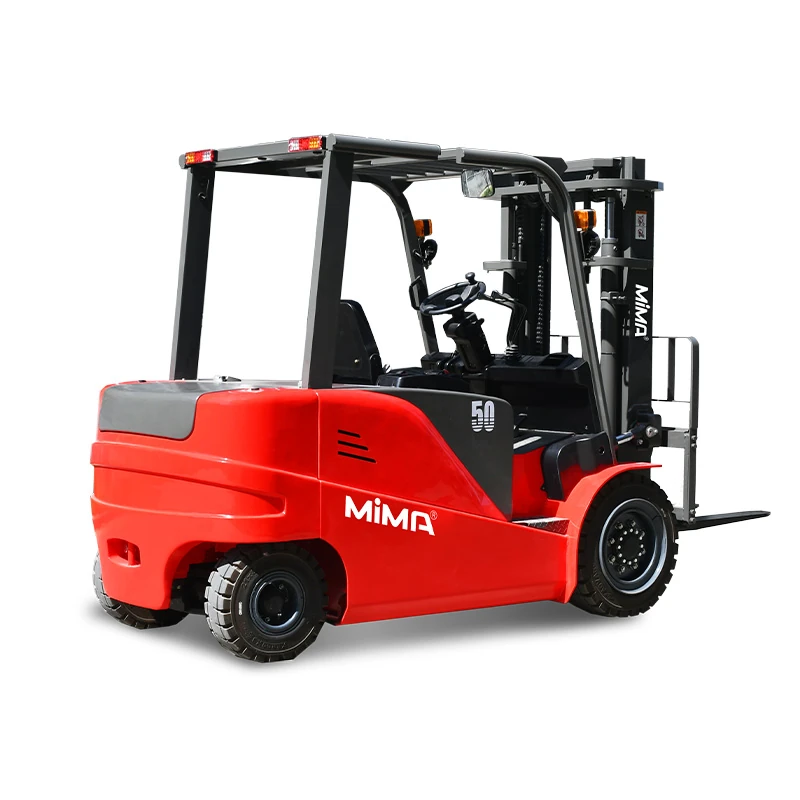

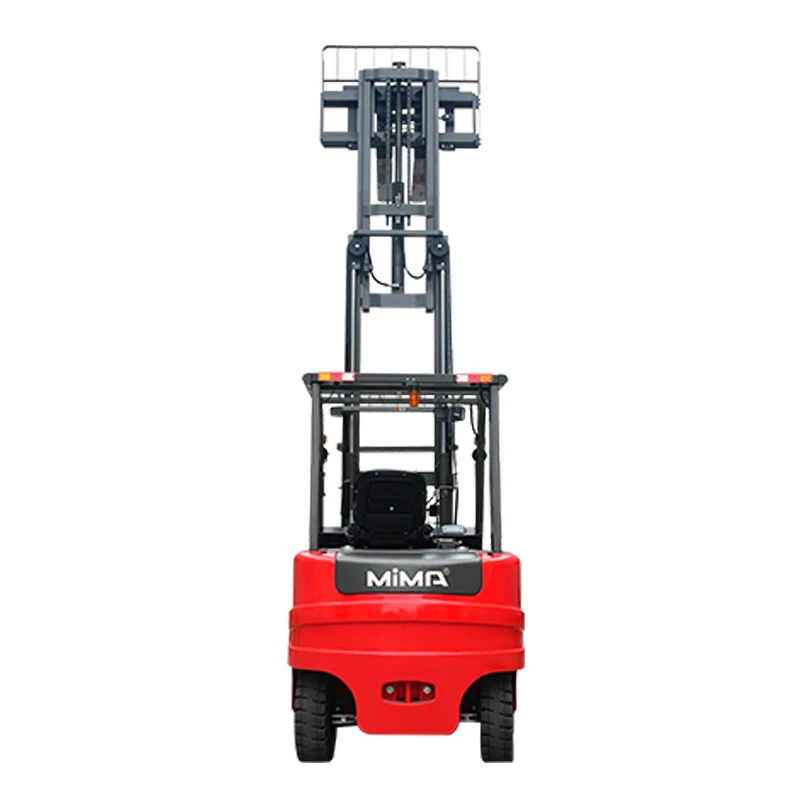

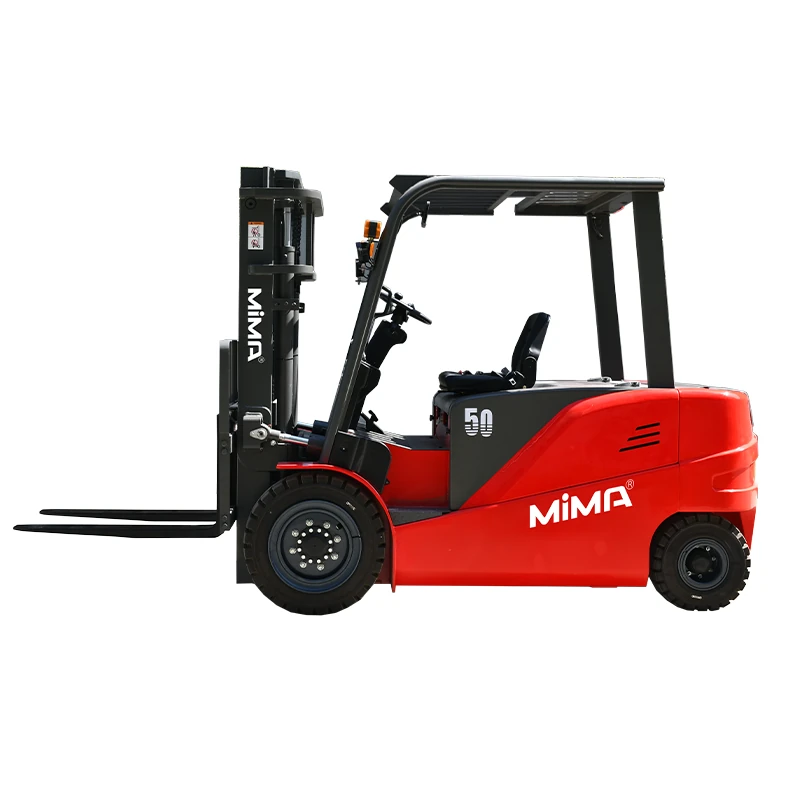

4.5–5.0T Heavy-duty Four-wheel Electric Counterbalance Forklift MK45/50
MK45/50 four-wheel electric counterbalance forklifts handle loads from 4,500 kg to approximately 5,000 kg, with lift heights up to 6,000 mm. An 80V power system, solid tyres, robust chassis and wide fork spread support heavy material handling, while configurable masts, batteries and attachments allow the trucks to suit specialised industrial applications.
Ideal For
- Heavy industrial materials and large palletised loads
- Manufacturing, metal, machinery and building-material operations
- Applications replacing higher-capacity internal-combustion forklifts
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
Robust Industrial Chassis
Solid tyres and a four-wheel layout support demanding daily operation.
Flexible Load Configuration
Wide fork adjustment and attachment options accommodate different load profiles.
Product Data
Technical Specifications
Compare the available MK45 / MK50 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MK45 | MK50 |
|---|---|---|
| Model | MK45 | MK50 |
| Operation Type | Seated | Seated |
| Load Capacity | 4500kg | 5000kg |
| Lift Height | 2,500–6,000 mm | 2,500–6,000 mm |
| Mast Type | Duplex / Duplex Full Free / Triplex Full Free | Duplex / Duplex Full Free / Triplex Full Free |
| Fork Outside Spread | 320–1,320 mm | 320–1,320 mm |
| Aisle Width | 4,420 mm | 4,420 mm |
| Battery Specification | 80V/560Ah lead-acid; 80V/300Ah lithium | 80V/630Ah lead-acid; 80V/300Ah lithium |
Product Overview
Product Details
High-capacity Electric Handling
The MK45/50 range extends MiMA electric counterbalance capability to the five-tonne class. It is developed for heavy loads traditionally handled by internal-combustion forklifts.
Heavy-duty Four-wheel Construction
A robust chassis, solid tyres and wide fork carriage support heavy industrial handling. The counterbalanced layout can accommodate palletised goods and non-standard loads without support arms.
80V Electric Power System
The 80V AC system supplies controlled travel and hydraulic performance under heavier duty cycles. Lead-acid and lithium battery capacities can be selected according to operating hours and charging arrangements.
Mast and Load Control
Duplex, duplex full-free and triplex full-free masts cover lift heights up to 6,000 mm. Wide fork adjustment helps match larger pallets, while optional attachments extend the truck’s load-handling capability.
Operator and Service Features
The seated workstation, wide-view mast and hydraulic controls support precise operation. OPS monitoring, lighting, braking functions and accessible service areas support daily operation and maintenance.
Product Support
Frequently Asked Questions
Find answers to common questions about MK45 / MK50. For application-specific advice, contact MiMA Australia.
Q1: Why is the MK50 capacity listed as 4,999 kg?
The current technical specification rates the MK50 at 4,999 kg at a 500 mm load centre. It is commercially positioned within the five-tonne forklift class.
Q2: Can the MK45/50 work outdoors?
The solid-tyre chassis can support indoor and suitable outdoor work. Surface condition, gradient, water exposure and required ground clearance must be reviewed.
Q3: Can it handle loads with a centre beyond 500 mm?
Yes, but available capacity will decrease as the load centre increases. Load dimensions and centre of gravity must be provided for calculation.
Q4: What attachments can be fitted?
Options may include side shift, fork positioner, clamps, rotators and specialised forks. Attachment weight and forward centre of gravity affect residual capacity.
Q5: Which battery is appropriate for intensive operation?
Lead-acid options extend up to 630Ah for the MK45 and 700Ah for the MK50. Lithium options up to 600Ah are available for flexible charging and reduced routine battery maintenance.
