Handle More Pallet Types
Cantilevered forks enter loads without fork-over support legs beneath the pallet.
Electric Pallet Stacker

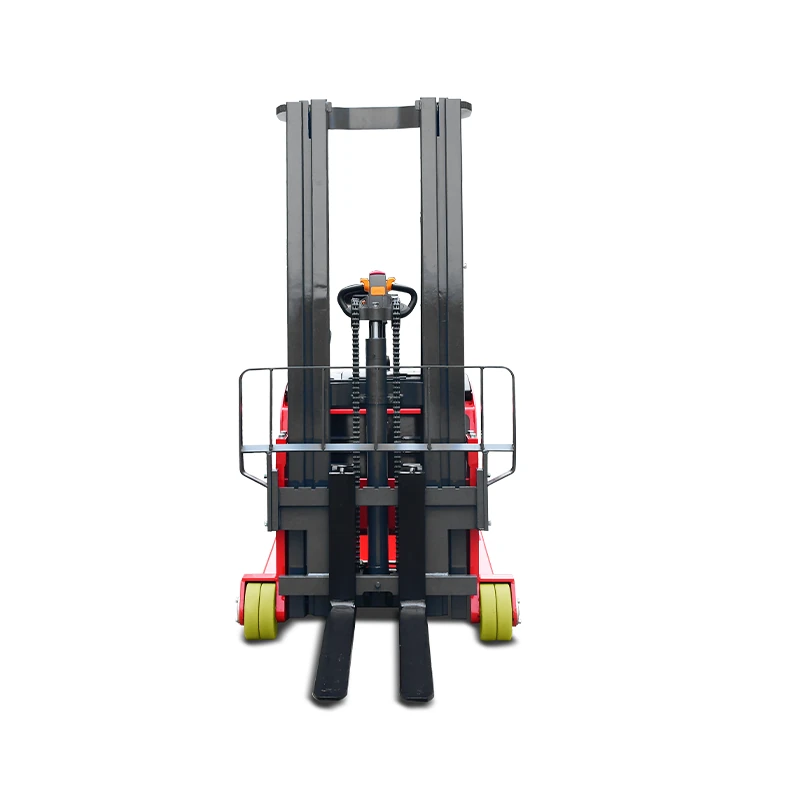

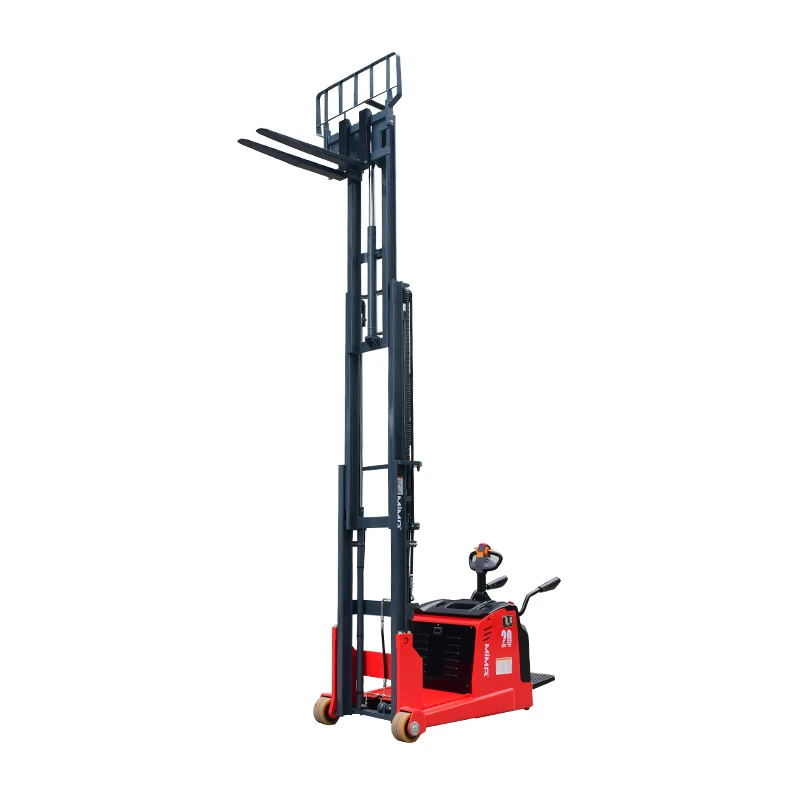

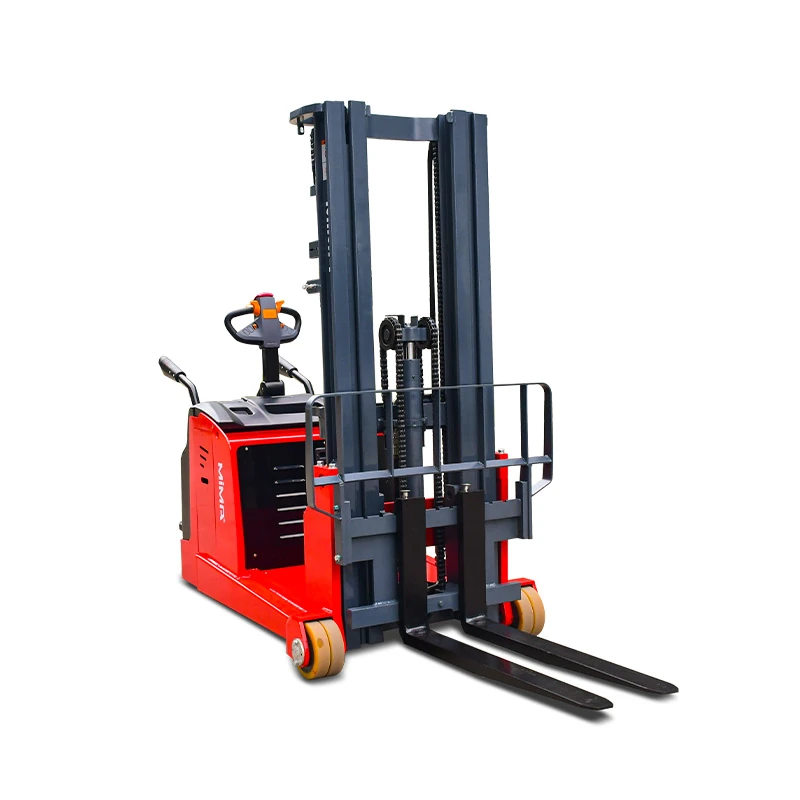

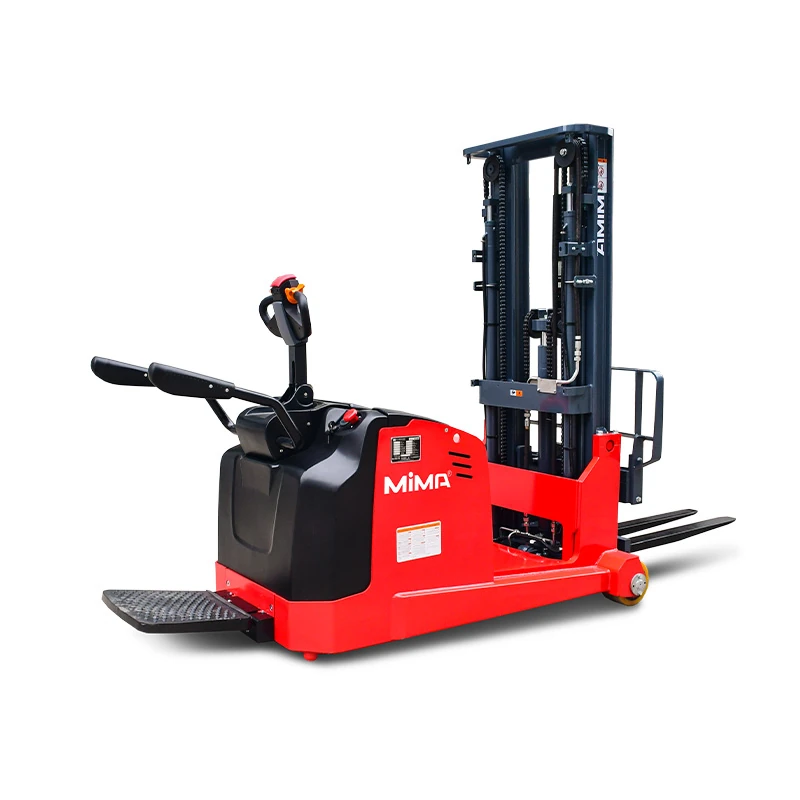

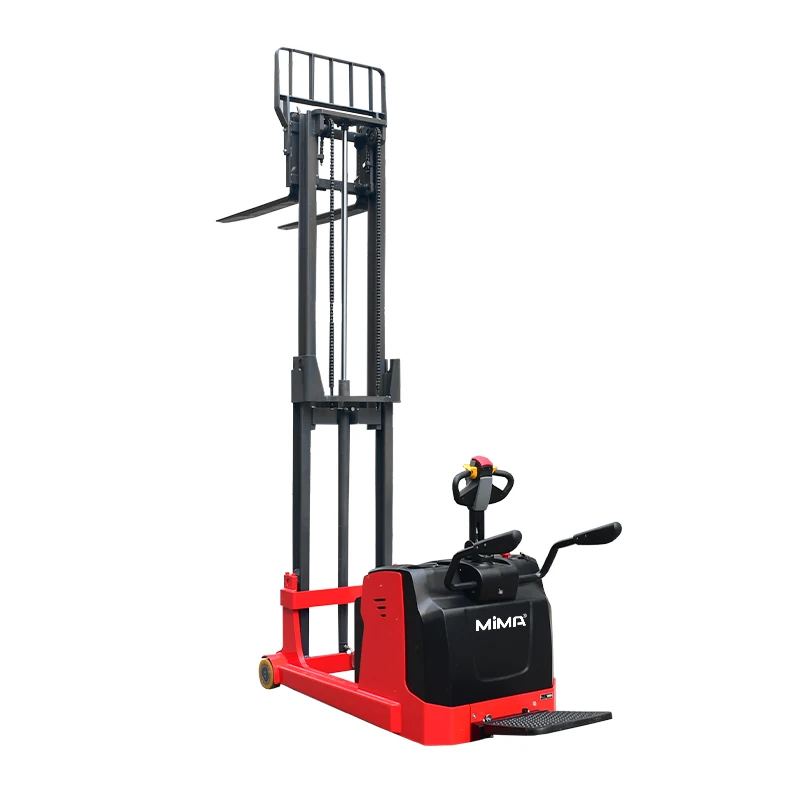

1.6-2.0T Counterbalanced Electric Pallet Stacker MBB16/20
MBB16/20 is a counterbalanced electric pallet stacker range for 1,600 and 2,000 kg loads. Without load-wheel support legs beneath the forks, it can handle closed-bottom and double-sided pallets and approach racking or machinery directly. Stand-on operation, electric steering and mast options up to 5.5 metres support flexible indoor stacking and transfer work.
Ideal For
- Double-sided and closed-bottom pallets
- Stacking next to racking, walls or production equipment
- Applications where front support legs obstruct pallet entry
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.
MiMA
Approach Loads Directly
The counterbalanced layout works close to racking, walls and machinery.
MiMA
Stack up to 5.5 Metres
Duplex and triplex full-free mast options cover varied rack heights.
Product Data
Technical Specifications
Compare the available MBB16 / MBB20 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MBB16 | MBB20 |
|---|---|---|
| Model | MBB16 | MBB20 |
| Operation Type | Stand-on | Stand-on |
| Load Capacity | 1,600 kg | 2,000 kg |
| Lift Height | 1,600–5,500 mm | 1,600–5,500 mm |
| Mast Type | Single / Duplex / Triplex Full Free | Single / Duplex / Triplex Full Free |
| Fork Outside Spread | 220–710 mm | 242–732 mm |
| Aisle Width | 2,950 mm, platform folded | 3,150 mm, platform folded |
| Battery Specification | 24V/210Ah lead-acid; 24V/150–200Ah lithium optional | 24V/270Ah lead-acid; 24V/150–200Ah lithium optional |
Product Overview
Product Details
Counterbalanced Stacking Without Baselegs
The MBB16/20 uses a counterbalanced chassis rather than support legs alongside the pallet. This allows the forks to enter closed-bottom, double-sided and other pallet types that are unsuitable for conventional fork-over stackers.
Capacity and Lift Selection
The range covers 1,600 and 2,000 kg rated capacities with lift heights up to 5.5 metres. Actual capacity at height must be confirmed from the selected mast’s load chart.
Stand-on Warehouse Operation
A folding platform supports repeated travel between storage and production areas. Electric steering reduces effort during turning and load positioning.
Stable, Controlled Handling
Floating drive support, corner-speed control, electromagnetic braking and controlled lowering support predictable indoor handling. The larger counterbalanced chassis requires more aisle than a conventional fork-over stacker.
Mast, Battery and Attachment Options
Single, duplex and triplex full-free masts are available. Lithium battery, side shift and other attachments can be specified after checking their effect on capacity and overall dimensions.
Product Support
Frequently Asked Questions
Find answers to common questions about MBB16 / MBB20. For application-specific advice, contact MiMA Australia.
Why choose MBB16/20 instead of a standard pallet stacker?
Choose it when support legs would prevent pallet entry or access. Its cantilevered forks can handle a broader range of pallets and approach loads directly.
Which model is more suitable for heavier pallets?
MBB20 provides 2,000 kg rated capacity, compared with 1,600 kg for MBB16. Required residual capacity at the target lift height must also be checked.
Does the counterbalanced design require more aisle space?
Yes. With the platform folded, the specified aisle widths are approximately 2,950 mm for MBB16 and 3,150 mm for MBB20.
Can side shift be fitted?
Side shift may be available, but attachment weight and load-centre changes reduce residual capacity. A revised load chart is required.
Is it a replacement for a counterbalance forklift?
It can replace a conventional forklift in selected indoor stacking applications, but travel speed, ground clearance, wheel type and outdoor capability are different.
