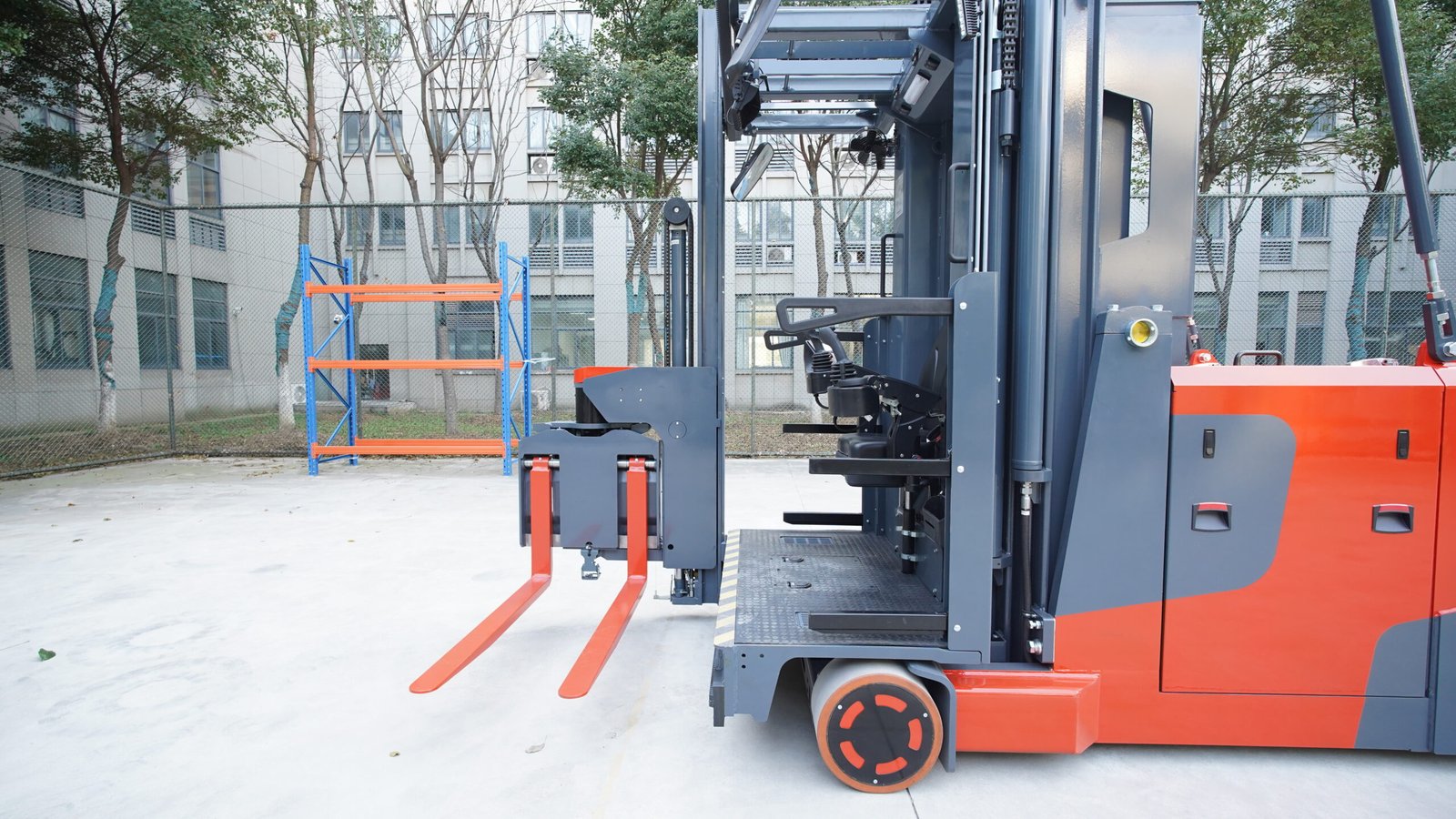

Do More in One Aisle
Stack pallets, pick orders and check inventory without changing to another truck.
3-way Pallet Stacker

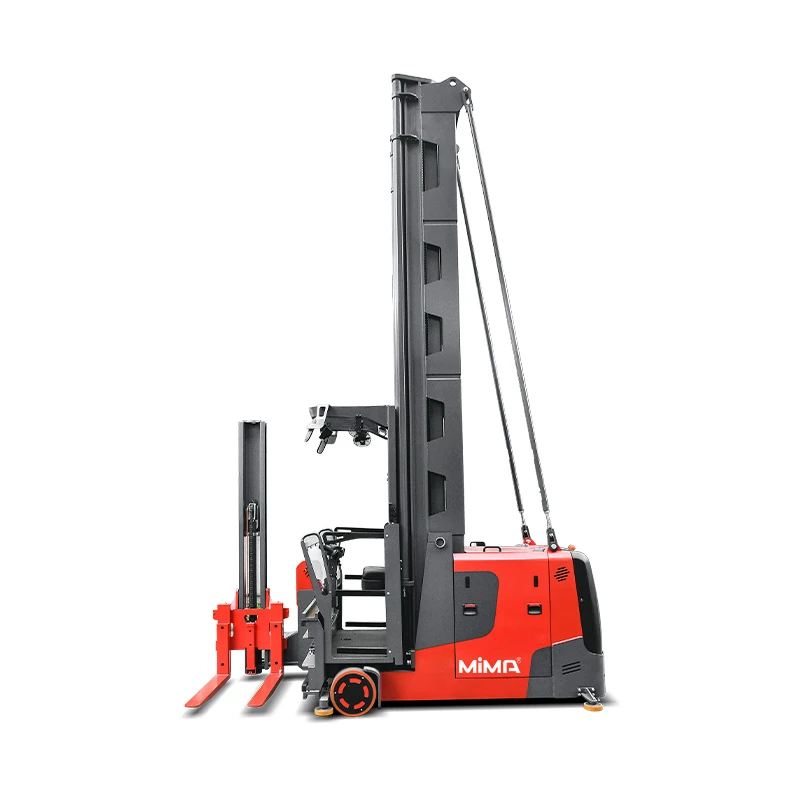

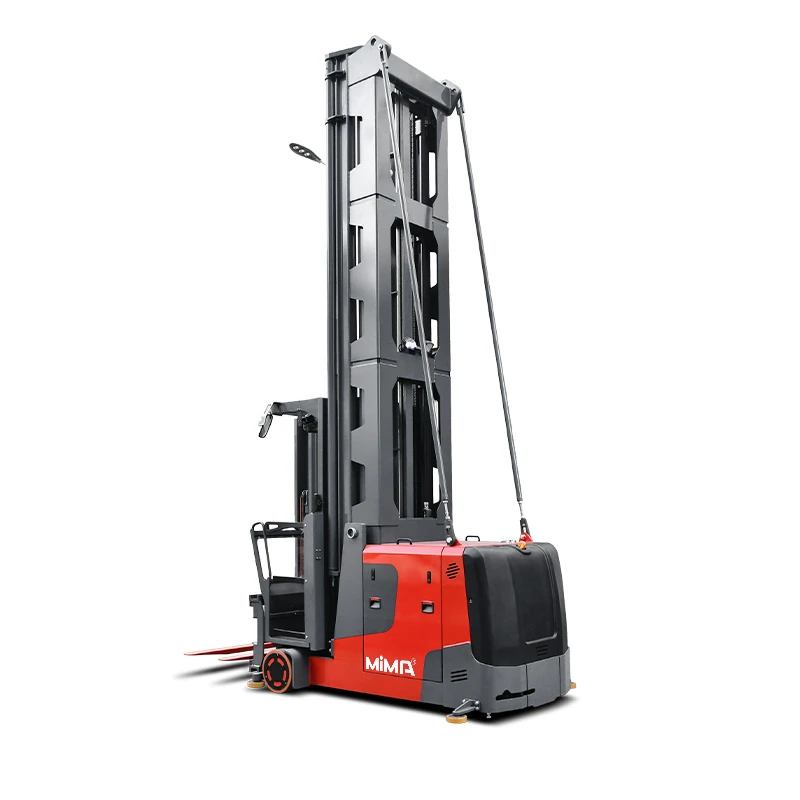

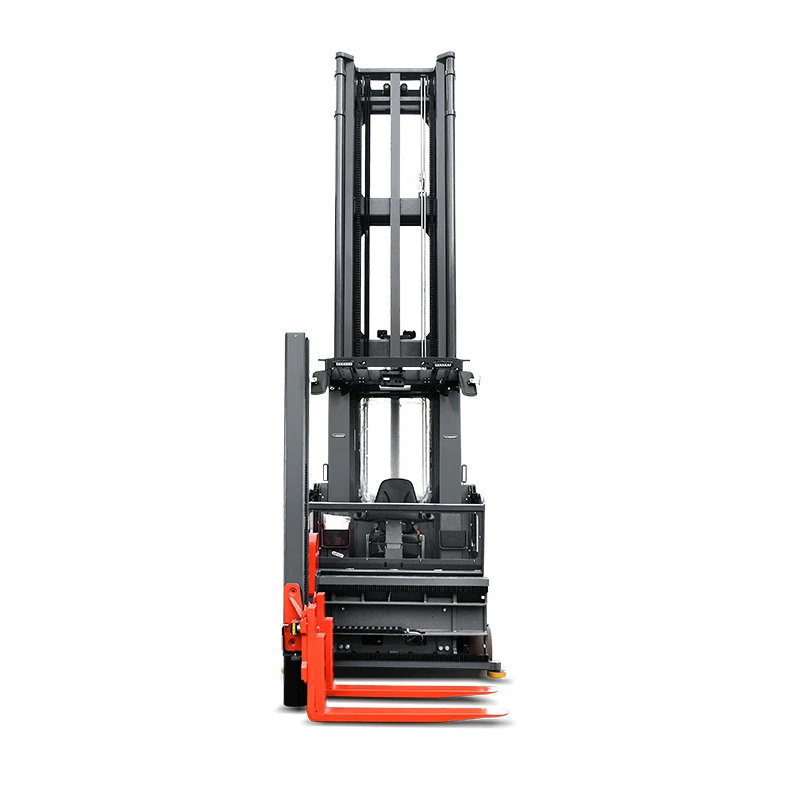

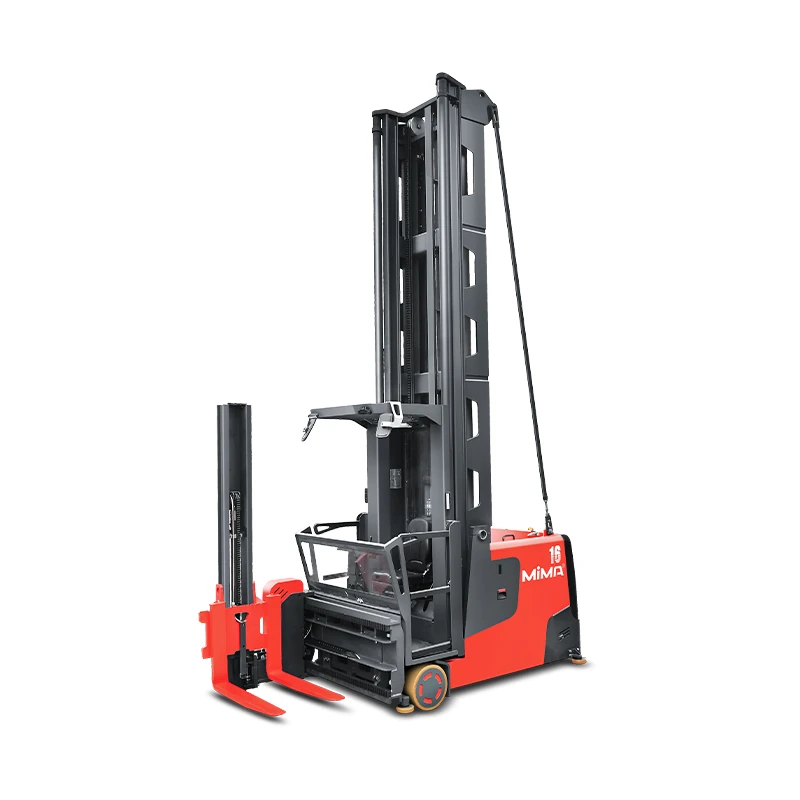

1.6T Man-up Electric VNA Turret Truck MCC16
MCC16 is a 1.6-tonne man-up electric VNA turret truck for high-density pallet storage, high-level order picking and inventory work. Its elevating operator compartment, high-strength mast and 180° rotating turret head support precise handling at height, while standing or seated operation, synchronized travel and lift functions, and one-touch fork controls improve daily productivity.
Ideal For
- Medium- and high-level pallet storage in VNA racking
- High-level order picking and inventory checking
- Intensive warehouse operations requiring 1,600 kg handling capacity
Product Features
Product Highlights
Key features designed to support safer, more efficient and more productive material handling.

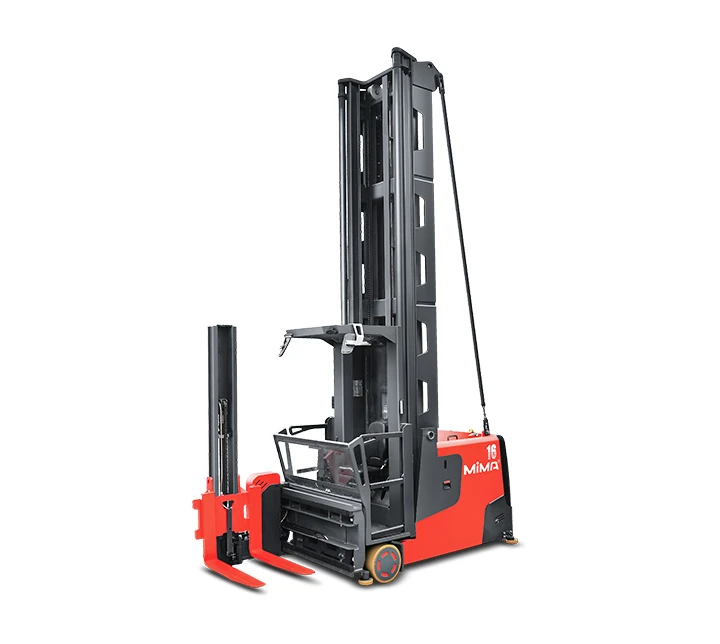

Stable at Height
A high-strength mast and all-wheel electromagnetic braking support controlled elevated handling.

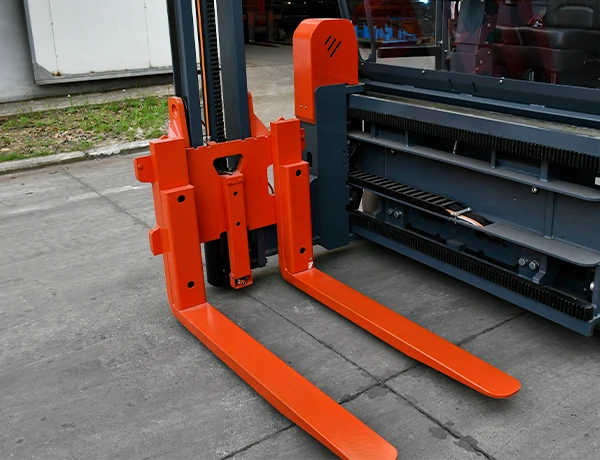

Faster Pallet Positioning
Linked rotation, side shift and fork centring reduce repetitive operator inputs.
Product Data
Technical Specifications
Compare the available MCC16 configurations and discuss the required capacity, lift height and operating environment with our team.
| Specification | MCC16 |
|---|---|
| Model | MCC16 |
| Operation Type | Seated / Stand-on |
| Load Capacity | 1600kg |
| Lift Height | Up to 14,280 mm total lift height |
| Mast Type | Duplex / Triplex Full-free |
| Fork Outside Spread | 390–750 mm |
| Aisle Width | From 1,650 mm* |
| Battery Specification | 80 V / 560 or 700 Ah lead-acid; 80 V / 460 or 600 Ah lithium optional |
Product Overview
Product Details
One Truck for Stacking and Picking

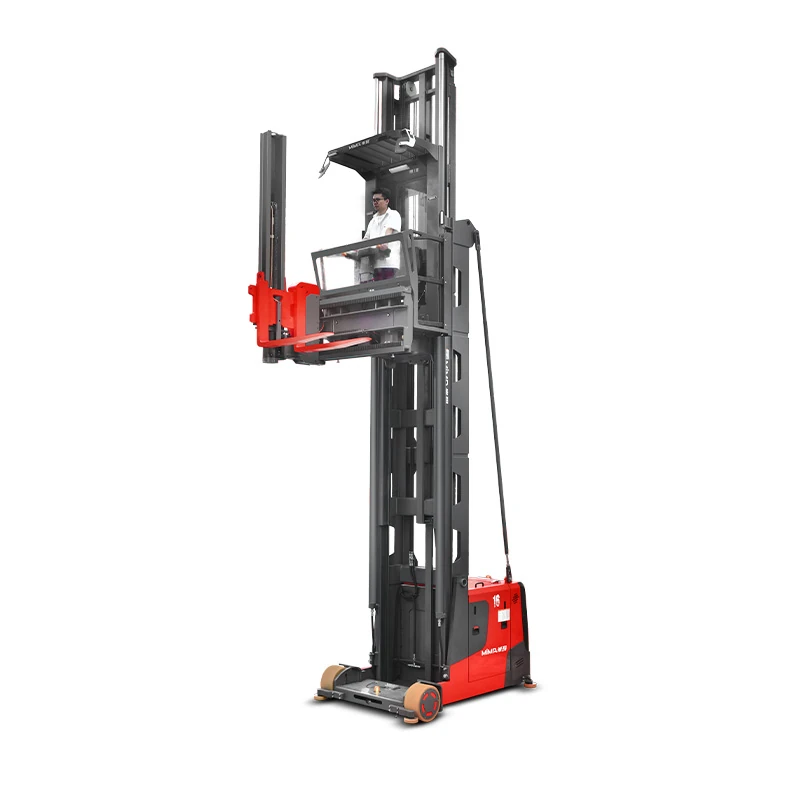

The MCC16 combines 1,600 kg pallet handling with an elevating operator compartment. The driver travels with the load for improved visibility during stacking, order picking and inventory work.
Controlled High-Level Performance
A large-section, high-strength mast reduces movement at elevation and supports better load control. Full AC drive, large load wheels and electromagnetic braking provide responsive travel and controlled deceleration.
Efficient Turret Operation
The 180° turret head stacks on either side without turning the truck. Linked side shift and rotation, fork centring, synchronized travel and lift functions and optional height preselection shorten repetitive handling cycles.
Designed Around the Operator
An adjustable control console and foldable seat support standing or seated operation. Camera assistance, cross-laser pallet alignment, electronic arm guards, OPS sensing and emergency escape provisions support high-level work.
Product Support
Frequently Asked Questions
Find answers to common questions about MCC16. For application-specific advice, contact MiMA Australia.
Q1: What operations is the MCC16 designed for?
It is designed for pallet stacking, high-level order picking and inventory checking in high-density VNA warehouses. The elevating compartment allows one truck to perform both pallet and picking tasks.
Q2: Does the MCC16 retain 1,600 kg at maximum height?
No. Residual capacity decreases with lift height and load centre. At a 600 mm load centre, the long-wheelbase model retains approximately 850 kg at a 14,280 mm total lift height.
Q3: Which mast configuration should be selected?
The duplex mast suits lower or medium lift heights. The triplex full-free mast provides a lower closed height, while the long-wheelbase MCC16H supports lift requirements up to 14,280 mm total height.
Q4: What aisle width does the MCC16 require?
The standard datasheet specifies a 1,650 mm net aisle with a 1,200 × 1,000 mm pallet. Long-wheelbase models, larger load centres and non-standard pallets may require additional clearance.
Q5: Which aisle guidance systems are available?
Mechanical rail guidance is standard. Electromagnetic and permanent-magnetic guidance are optional, together with aisle safety, end-of-aisle speed reduction, obstacle detection and automatic addressing functions.
Q6: Can the operator work standing or seated?
Yes. The adjustable console and foldable seat allow both positions. Standing operation supports frequent picking movements, while seated operation can improve comfort during longer stacking cycles.
Q7: Which functions improve pallet-handling productivity?
Available functions include linked fork rotation and side shift, one-touch fork centring, synchronized travel and lifting, synchronized mast lowering, height preselection and automatic pallet pickup and placement.
Q8: Which battery configurations are available?
Standard-wheelbase models use an 80 V / 560 Ah lead-acid battery, while long-wheelbase models use 80 V / 700 Ah. Lithium configurations are also available according to the selected chassis.
